Hino S5-LJ05E04A Workshop Manual page 432

11–24

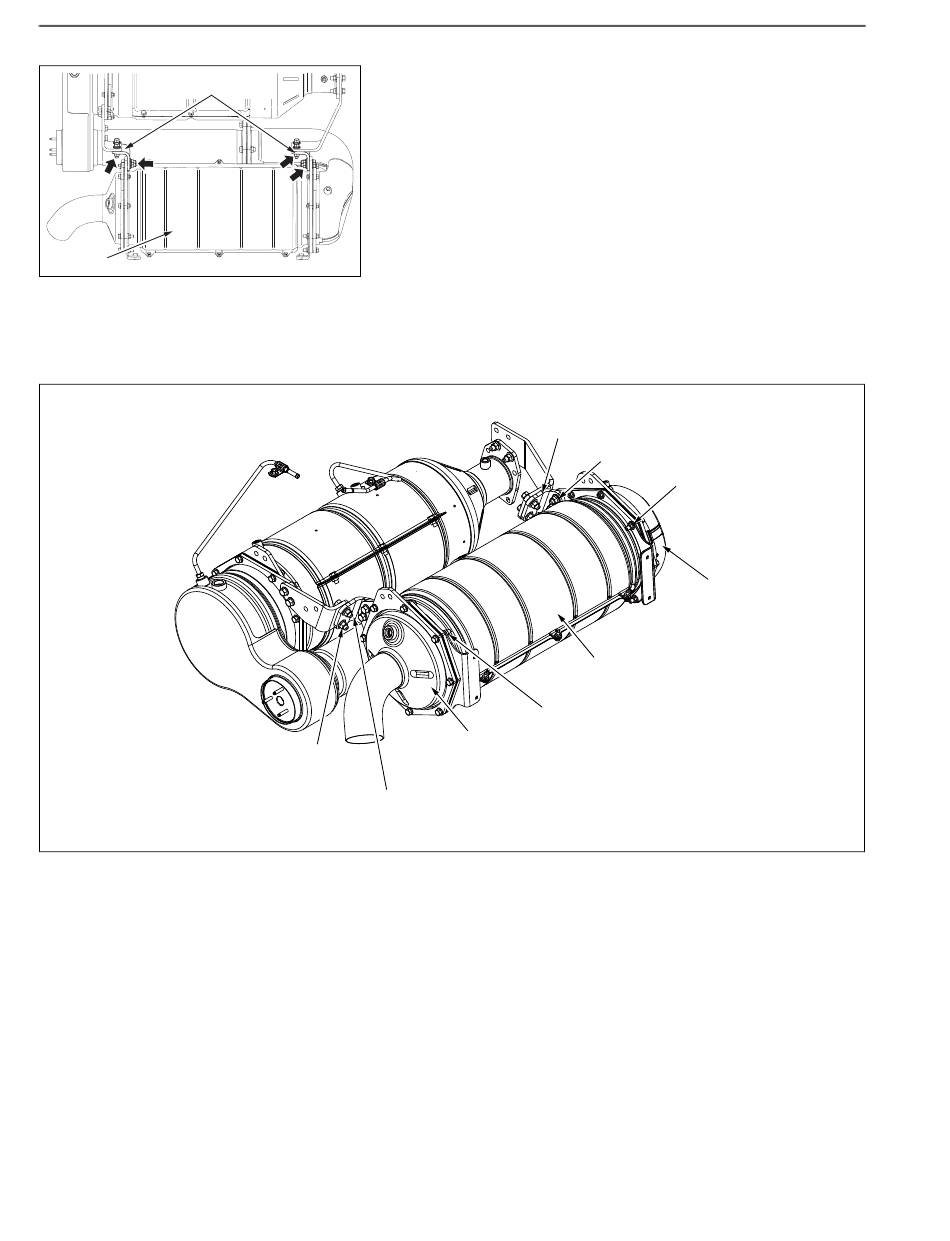

SUPPORT BRACKET
DEF-SCR
EXHAUST (J05E)
(4) Temporarily tighten 2 support brackets and 8 washers to the DEF-
SCR with 8 bolts and 8 nuts.
SHTS021271000036
3. TIGHTENING THE DEF-SCR FULLY
(1) Permanently tighten the temporarily tightened bolts and nuts.
C
SUPPORT
BRACKET
a. Center pipe No.2 - DEF-SCR (part A)
Tightening Torque:
20-30 N·m {204-306 kgf·cm, 14.7-22.1 lbf·ft}
b. DEF-SCR - tail pipe (part B)
Tightening Torque:
20-30 N·m {204-306 kgf·cm, 14.7-22.1 lbf·ft}
c. DEF-SCR - support bracket (part C)
Tightening Torque:
43-59 N·m {438-602 kgf·cm, 31.7-43.5 lbf·ft}
SUPPORT
BRACKET
C
DEF-SCR
B
TAIL PIPE
A
CENTER
PIPE No.2
SHTS021271000037
