Hino S5-LJ05E04A Workshop Manual page 385

CONCAVE
CRANKSHAFT
PART
BEARING
OIL HOLE
CRANKSHAFT
BEARING
PRODUCT NUMBER
STAMPING
BEARING CAP
THRUST
BEARING
GROOVE
ENGINE MECHANICAL (J05E)

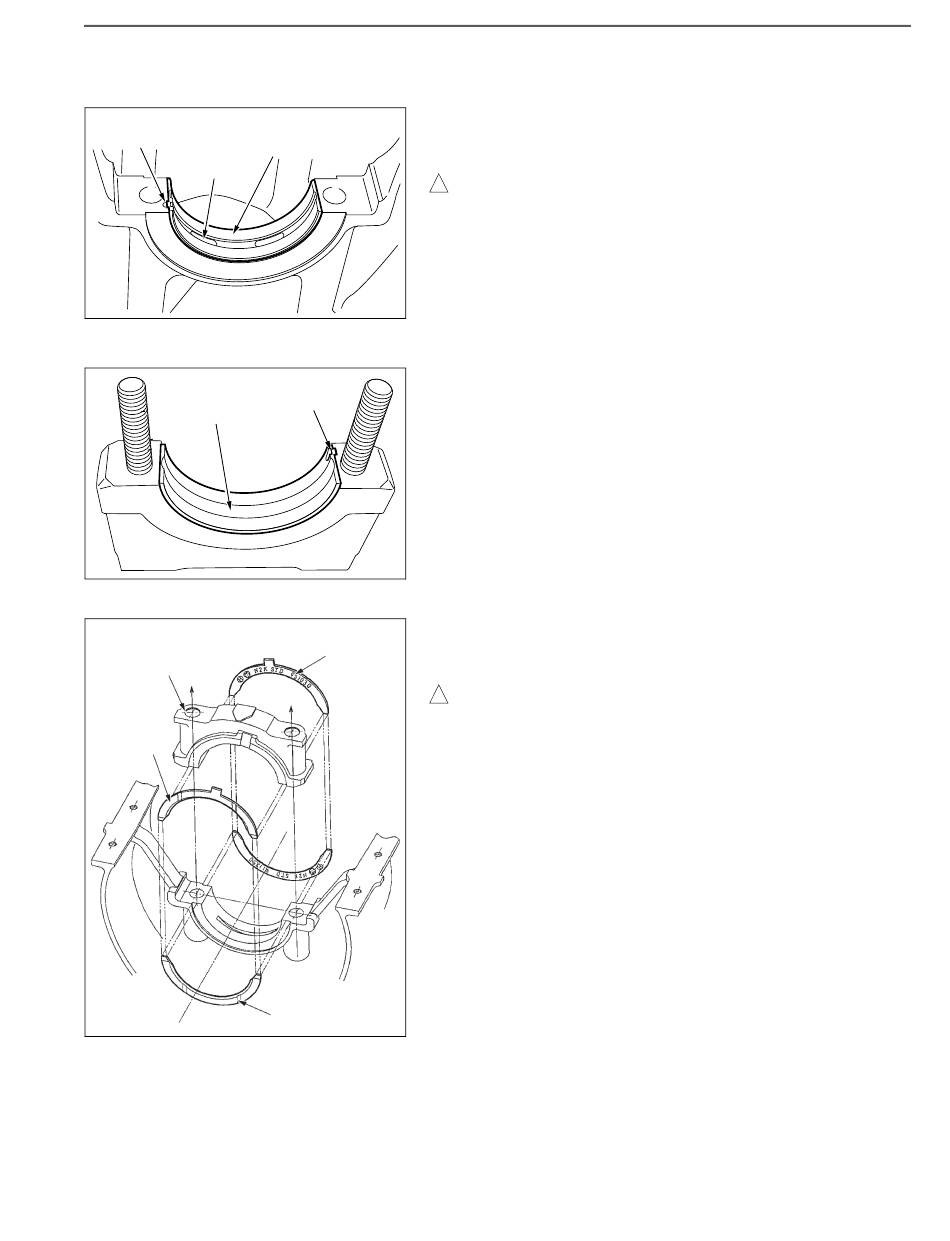

MOUNTING THE CRANKSHAFT
1. MOUNTING THE CRANKSHAFT BEARING AND THRUST
BEARING
(1) Mount the crankshaft bearing by aligning with the cylinder block
concave and then apply engine oil.
! CAUTION
• Check the oil hole for alignment.
•
Off-position of the oil hole may cause insufficient oiling,
resulting in seizure.
SHTS021270900259
(2) Mount the crankshaft bearing by aligning with the main bearing
cap concave and then apply engine oil.
CONCAVE
PART
SHTS021270900260
(3) Mount the thrust bearing to the main bearing cap with the groove
side (front side) facing to the crank arm side and the part No. side
(back side) to the main bearing cap side before applying engine
oil.
! CAUTION
Apply engine oil or grease to the back side of the thrust bearing to
prevent it from falling off during assembly.
NOTICE
Do not mount the thrust bearing on the cylinder block side now
because it must be inserted after the crankshaft is placed.
SHTS021270900261
10–109
