Def Tank; Component Locator - Hino S5-LJ05E04A Workshop Manual

11–72

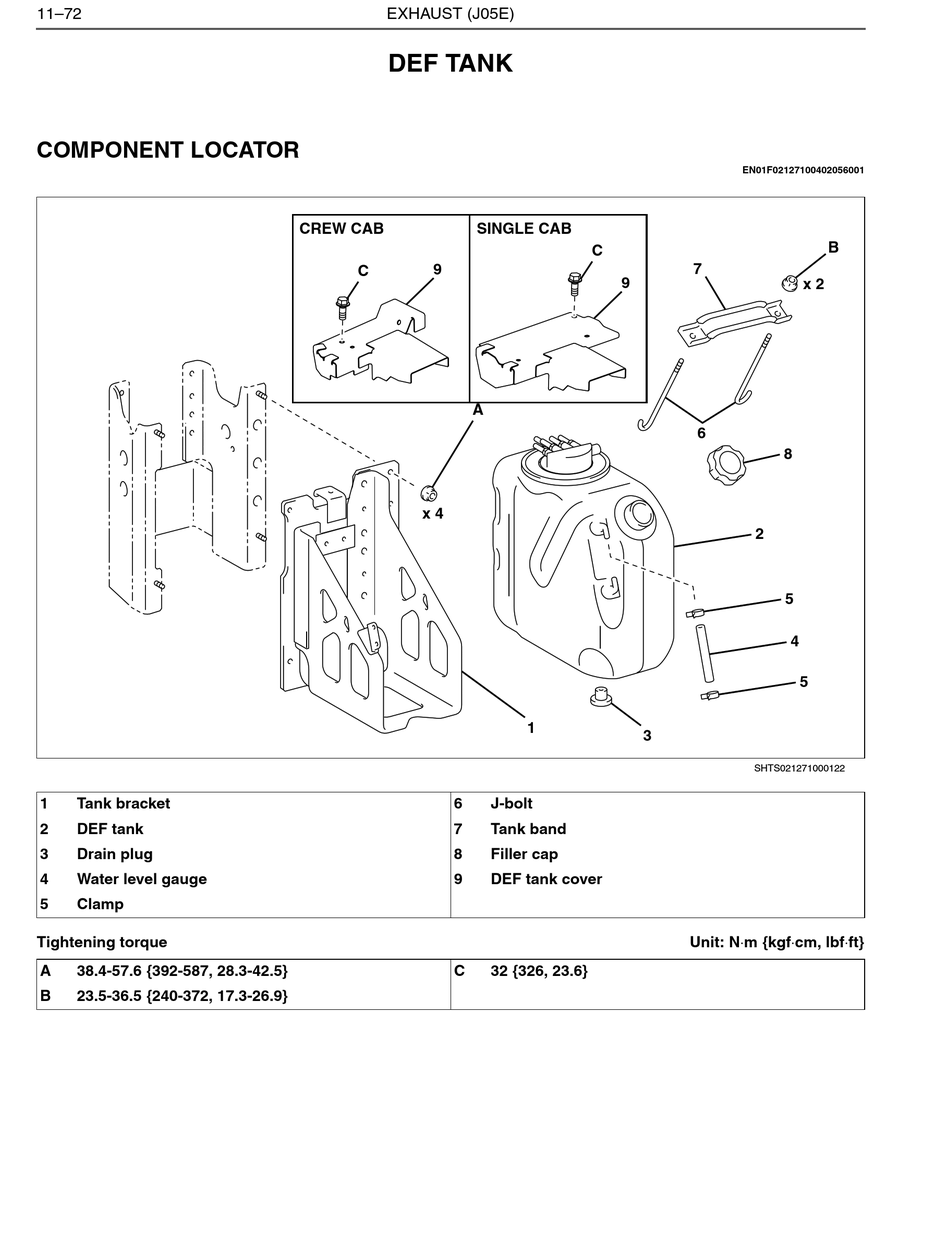

COMPONENT LOCATOR

1 Tank bracket
2

DEF tank

3 Drain plug
4 Water level gauge
5 Clamp
Tightening torque
A 38.4-57.6 {392-587, 28.3-42.5}
B 23.5-36.5 {240-372, 17.3-26.9}
EXHAUST (J05E)
DEF TANK
CREW CAB SINGLE CAB
9
C
A
x 4
6
7
8
9
C
C
9
1
3
J-bolt
Tank band
Filler cap
DEF tank cover
32 {326, 23.6}
EN01F02127100402056001
B
7
x 2
6
8
2
5
4
5
SHTS021271000122
Unit: Nm {kgfcm, lbfft}
