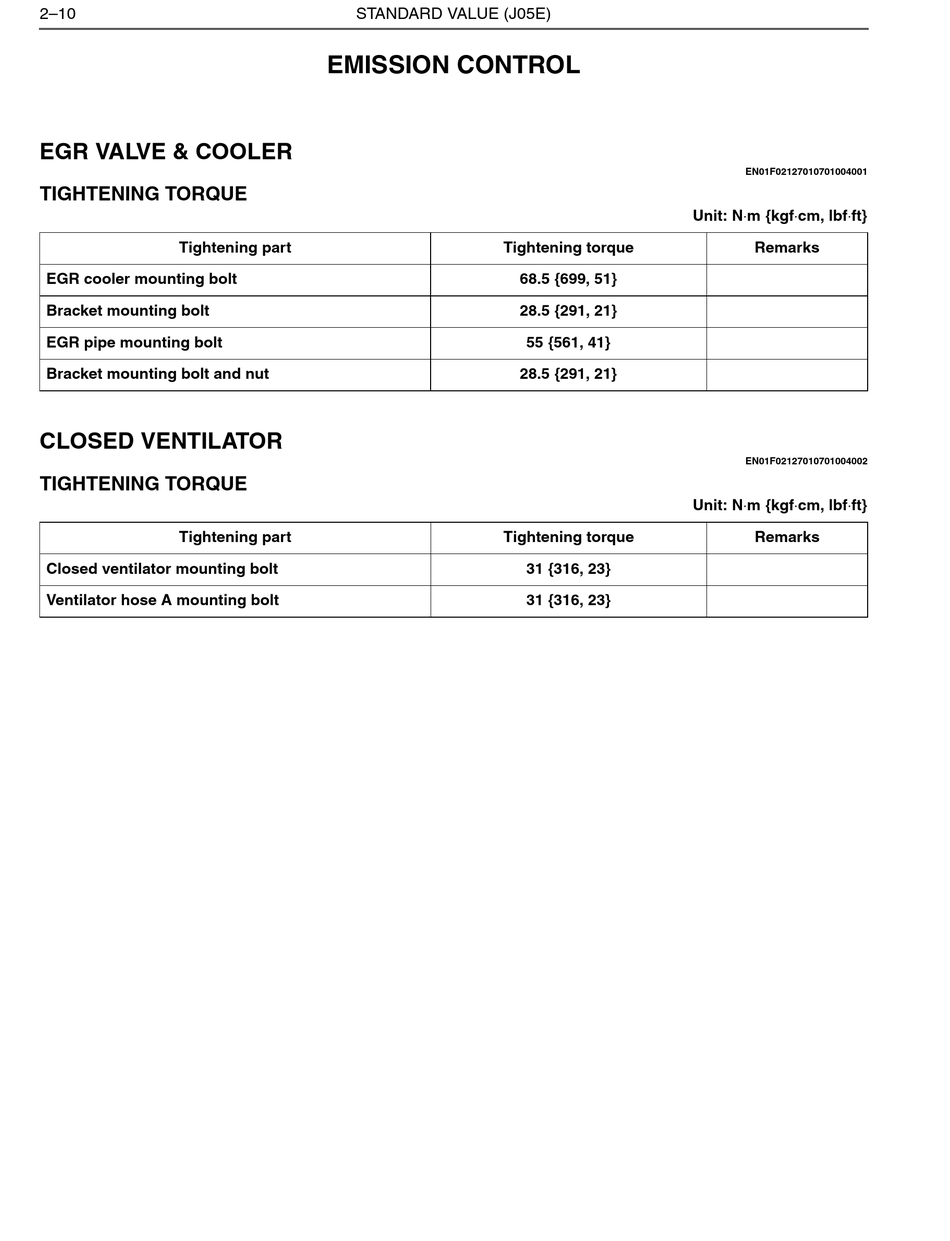

2–10
EGR VALVE & COOLER
TIGHTENING TORQUE
Tightening part
EGR cooler mounting bolt
Bracket mounting bolt
EGR pipe mounting bolt
Bracket mounting bolt and nut

CLOSED VENTILATOR

TIGHTENING TORQUE
Tightening part
Closed ventilator mounting bolt
Ventilator hose A mounting bolt
STANDARD VALUE (J05E)

EMISSION CONTROL

Tightening torque
Tightening torque
Unit: Nm {kgfcm, lbfft}
68.5 {699, 51}
28.5 {291, 21}
55 {561, 41}
28.5 {291, 21}
Unit: Nm {kgfcm, lbfft}
31 {316, 23}
31 {316, 23}
EN01F02127010701004001
Remarks
EN01F02127010701004002
Remarks
