Hino S5-LJ05E04A Workshop Manual page 486

11–78
SINGLE CAB
DEF TANK COVER
DEF TANK
CREW CAB
DEF TANK COVER
DEF TANK
TANK BAND
DEF TANK
EXHAUST (J05E)

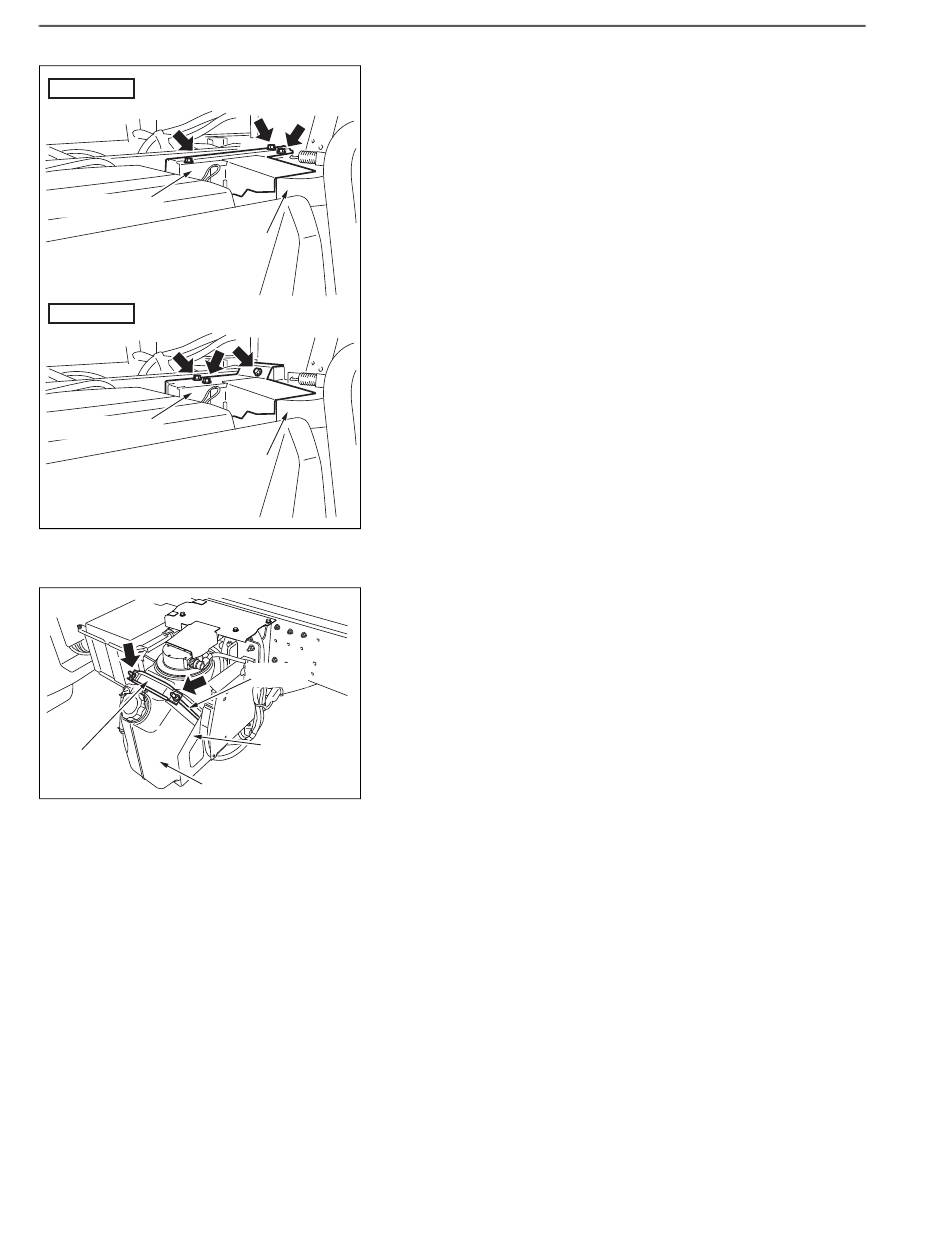

4. MOUNTING THE DEF TANK COVER
(1) Mount the DEF tank cover to the DEF tank with the bolts (3 pcs.).
Tightening Torque:
32 N·m {326 kgf·cm, 23.6 lbf·ft}
SHTS021271000136
5. MOUNTING THE TANK BAND
(1) Hook 2 J-bolts to the tank bracket holes and mount the tank band
to the tank bracket and DEF tank with 2 nuts. At this time, tighten
the J-bolts to make the protrusion amount of the screws even.
Tightening Torque:
23.5-36.5 N·m {240-372 kgf·cm, 17.3-26.9 lbf·ft}
J-BOLT
TANK
BRACKET
SHTS021271000137
6. ADDING THE COOLANT
(1) Inspect the coolant level and if insufficient, pour coolant.
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
ADDING THE COOLANT (Page 12-13)
