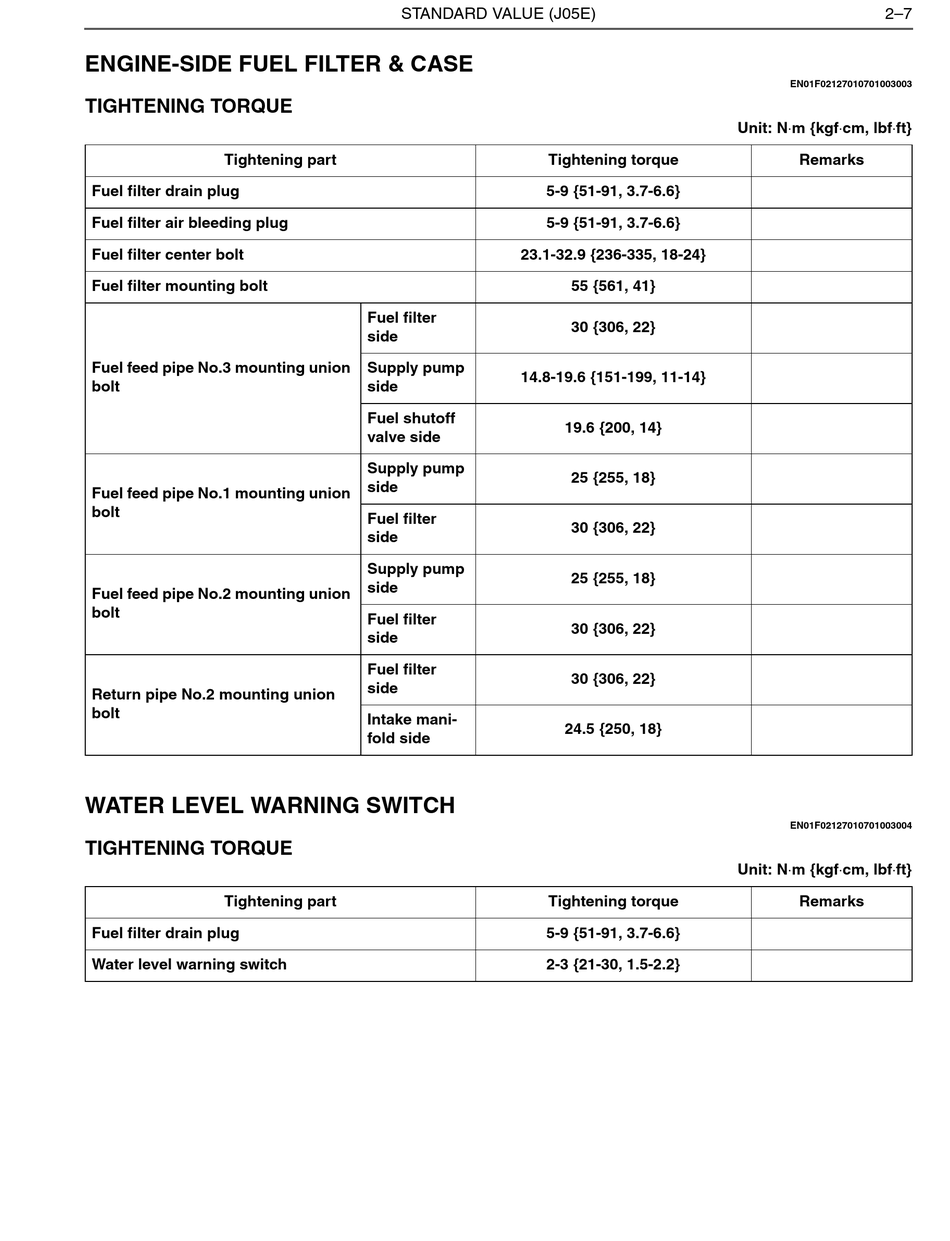

ENGINE-SIDE FUEL FILTER & CASE
TIGHTENING TORQUE
Tightening part
Fuel filter drain plug
Fuel filter air bleeding plug
Fuel filter center bolt
Fuel filter mounting bolt
Fuel feed pipe No.3 mounting union
bolt
Fuel feed pipe No.1 mounting union
bolt
Fuel feed pipe No.2 mounting union
bolt
Return pipe No.2 mounting union
bolt

WATER LEVEL WARNING SWITCH

TIGHTENING TORQUE
Tightening part
Fuel filter drain plug
Water level warning switch
STANDARD VALUE (J05E)
5-9 {51-91, 3.7-6.6}
5-9 {51-91, 3.7-6.6}
23.1-32.9 {236-335, 18-24}
Fuel filter
side
Supply pump
14.8-19.6 {151-199, 11-14}
side
Fuel shutoff
valve side
Supply pump
side
Fuel filter
side
Supply pump
side
Fuel filter
side
Fuel filter
side
Intake mani-
fold side
5-9 {51-91, 3.7-6.6}
2-3 {21-30, 1.5-2.2}
Tightening torque
55 {561, 41}
30 {306, 22}
19.6 {200, 14}
25 {255, 18}
30 {306, 22}
25 {255, 18}
30 {306, 22}
30 {306, 22}
24.5 {250, 18}
Tightening torque
2–7
EN01F02127010701003003
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701003004
Unit: Nm {kgfcm, lbfft}
Remarks
