Replacement - Hino S5-LJ05E04A Workshop Manual

UNION BOLT
LEAKAGE
PIPE
INJECTOR
HARNESS
BRACKET
INJECTOR
HARNESS
INJECTOR
HARNESS
FUEL SYSTEM (J05E)

REPLACEMENT

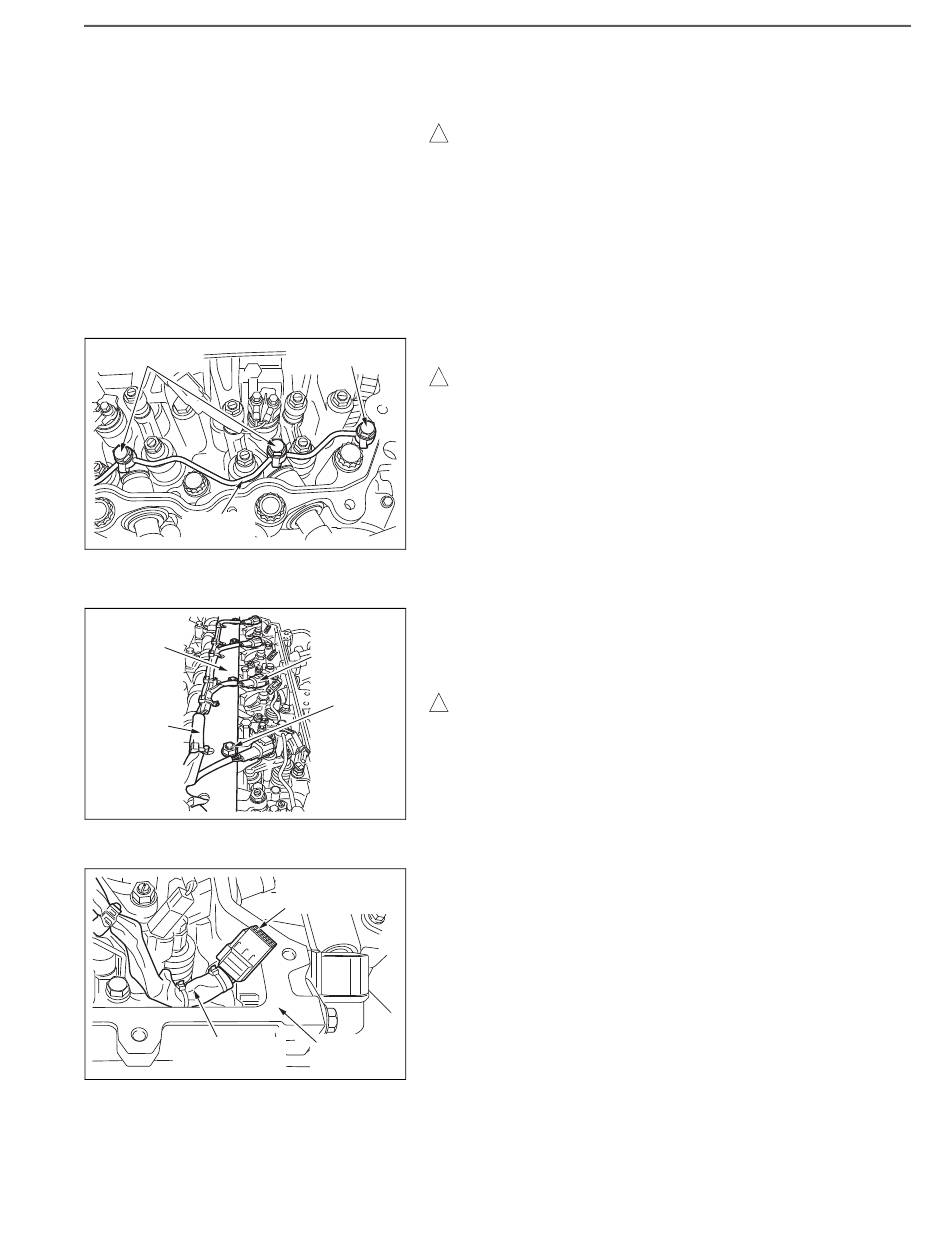

REMOVING THE INJECTOR
! CAUTION
• While working, be careful not to make dirt and water enter
parts.
•
Clean off surrounding area of the injectors and fuel line con-
nectors.
1. REMOVING THE HEAD COVER
Reference: ENGINE MECHANICAL (J05E), HEAD COVER,
REPLACEMENT, REMOVING THE HEAD COVER (Page 10-3)
2. REMOVING THE LEAKAGE PIPE
(1) Unfasten 5 union bolts to remove the leakage pipe and 5 gaskets.
UNION BOLT
! CAUTION
The leakage pipe can be twisted easily. Use care in handling.
SHTS021270600084
3. REMOVING THE INJECTOR HARNESS
(1) Disconnect each connector connected to the injector.
(2) Unfasten 5 nuts to remove the injector harness together with the
CONNECTOR injector harness bracket.
! CAUTION
NUT
The injector harness bracket can be twisted easily. Use care in
handling.
SHTS021270600085
NOTICE
For easy removal, detach the connector of the cylinder head lastly.
PART OF
CONNECTOR
CYLINDER
HEAD
SHTS021270600086
7–37
