3

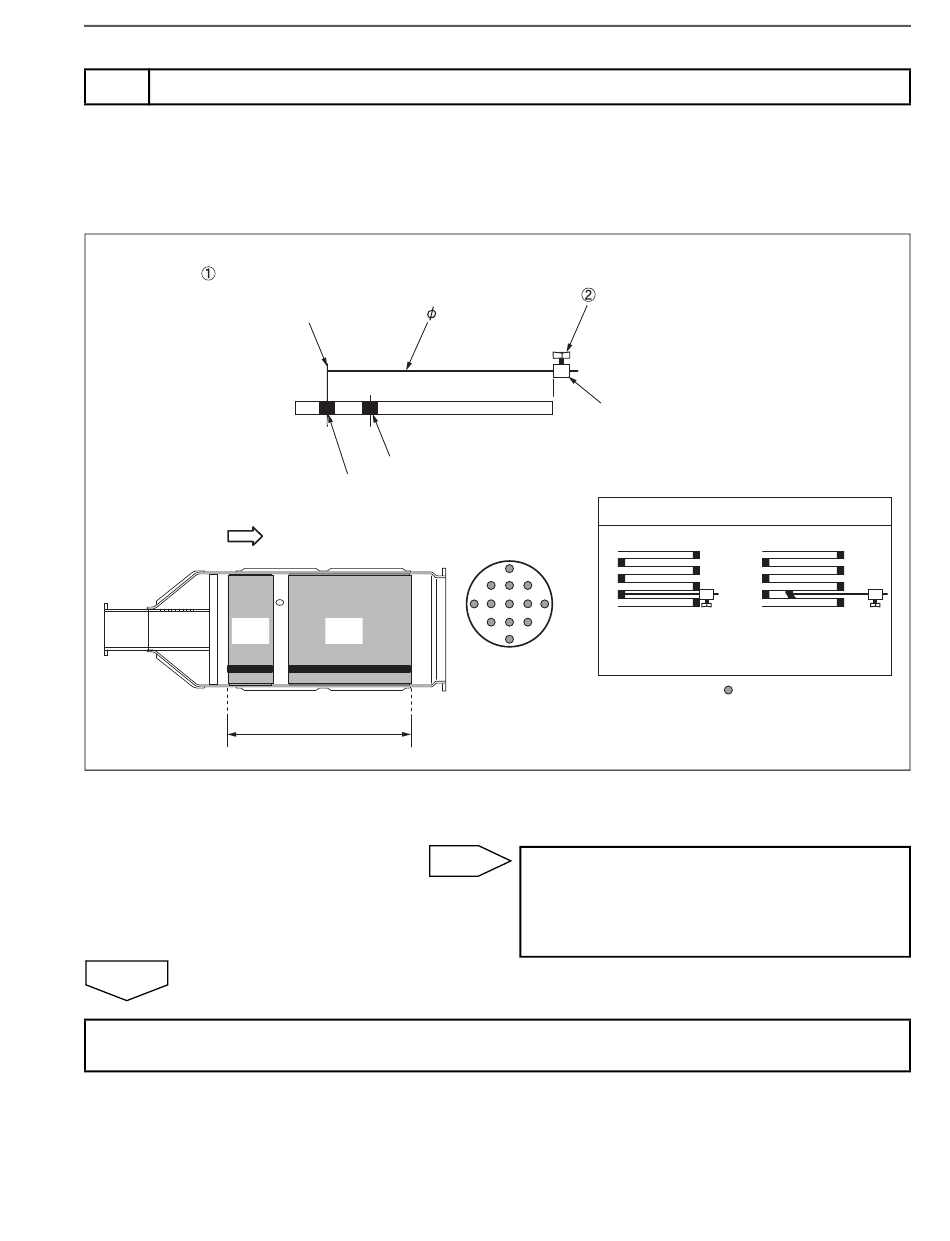

INSPECT THE DPR FILTER WITH THE DEDICATED CHECK PROBE.
ALIGN THE TIP TO
THE CENTER OF THE
MARKING.
GAS FLOW
DOC
YES
Clean it and then install it on the vehicle.
Reference: EXHAUST (J05E), DPR CLEANER, REPLACEMENT, MOUNTING DPR CLEANER (Page 11-38)
EXHAUST (J05E)
1. Insert the check probe from the rear surface to inspect the inside.
SST: 09992-E4010
PIANO WIRE
0.8mm {0.0315 in.}
J08E
J05E
DPR
TAGET PART OF
INSERTION INSPECTION (PART WITH )
INSPECT ONLY BLACK PARTS WHEN
FILTER
THE FILTER IS PARTIALLY BLACK.
Standard value: Insert the check probe to the specified posi-
tion.
NO
FILTER GAUGE ASSEMBLY
TIGHTEN A SCREW
AND AM FIXED
GRIP FOR DEPTH CHECK
OK
REAR SIDE
THE PROBE IS
INSERTED TO
THE END.
Replace with a new DPR filter and install it on the
vehicle.
Reference: EXHAUST (J05E), DPR CLEANER,
REPLACEMENT, MOUNTING DPR CLEANER
(Page 11-38)
11–47
JUDGEMENT
NG
THE PROBE IS
STUCK IN
THE MIDDLE.
SHTS021271000063
