SCR DOWNSTREAM
NOx SENSOR
SCR DOWNSTREAM
NOx SENSOR
EXHAUST (J05E)
MOUNTING THE SCR DOWNSTREAM NOx SENSOR
1. MOUNTING THE SCR DOWNSTREAM NOx SENSOR

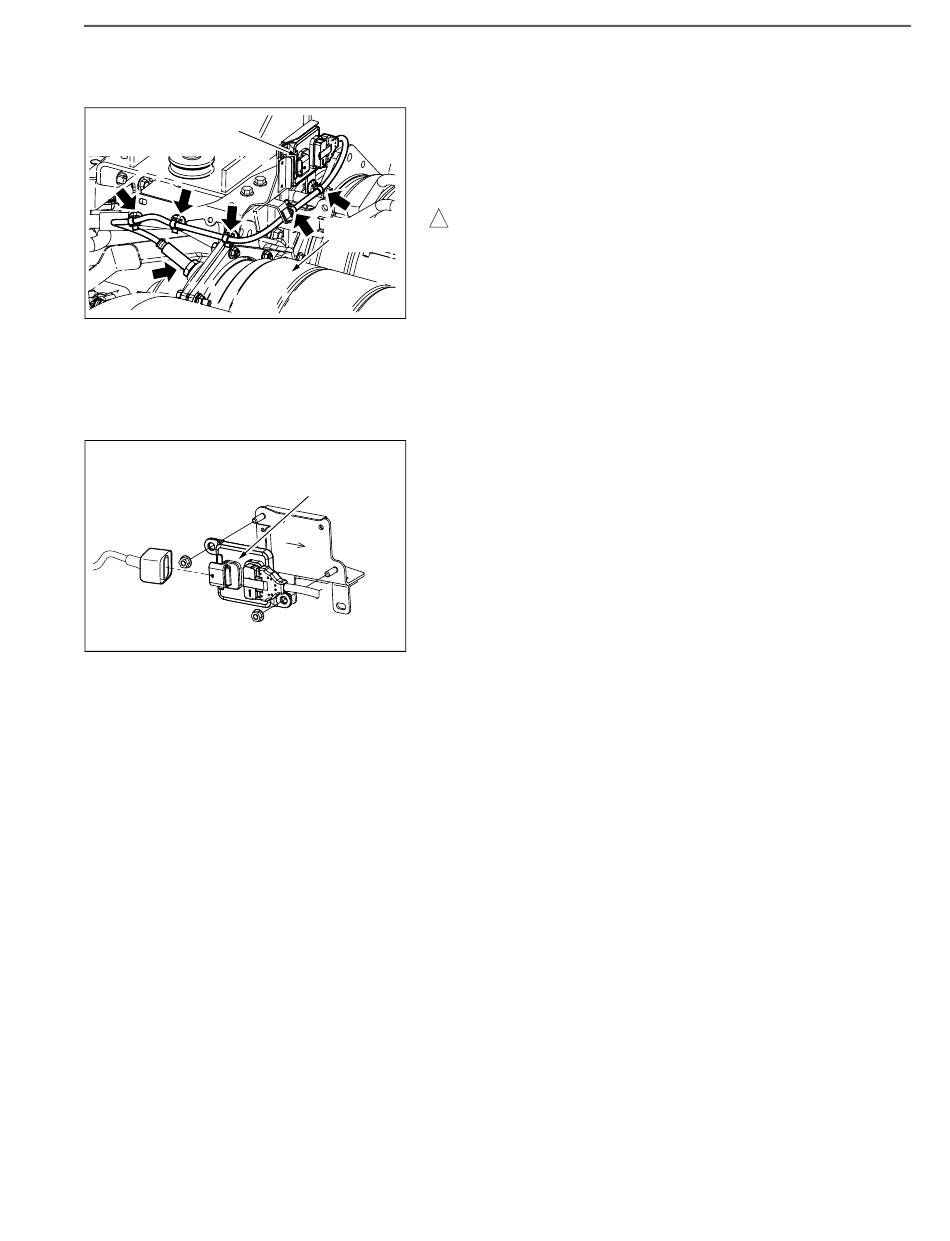

(1) Connect the SCR downstream NOx sensor to the muffler and
then the harness clamp.
Tightening Torque:
40-60 N·m {408-612 kgf·cm, 29.5-44.2 lbf·ft}
! CAUTION
MUFFLER
• When reusing, clean the old anti-seizure lubricant on the
SCR downstream NOx sensor and apply anti-seizure lubri-
cant (WEICOM Anti-Seize ASW "High Tech" Assembly Paste
or equivalent) to the thread area.
•
A new downstream NOx sensor has anti-seizure lubricant
SHTS021271000183
applied.
•
Pay attention not to twist the harness of the SCR down-
stream NOx sensor.
•
Do not allow the harness to interfere with the bracket or bolt.
(2) Mount the SCR downstream NOx controller to the bracket with 2
nuts.
Tightening Torque:
5.5 N·m {56 kgf·cm, 4.1 lbf·ft}
2. CONNECTING THE HARNESS
(1) Connect the connector to the SCR downstream NOx controller.
SHTS021271000184
