Hino S5-LJ05E04A Workshop Manual page 340

10–64
OIL SEAL
OIL SEAL
GUIDE
OIL SEAL
PRESS
CENTER BOLT
ENGINE MECHANICAL (J05E)
(5)
! CAUTION
•
•
GUIDE BOLT
SHTS021270900137
(6)
OIL SEAL PRESS
SHTS021270900138
(7)
! CAUTION
Press-fit evenly around the circumference.
(8)
(9)
SHTS021270900139

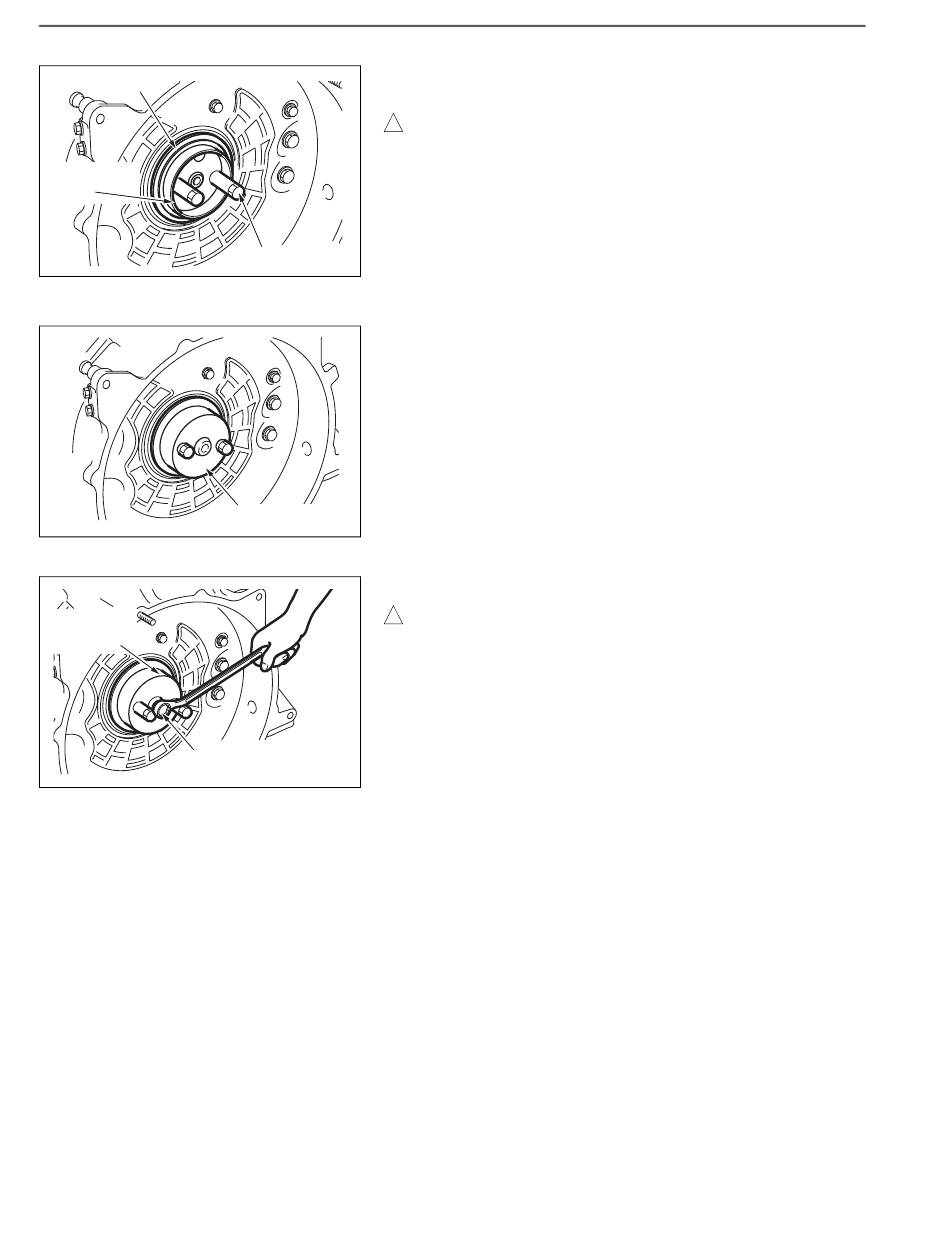

2.
After inserting the new crankshaft rear oil seal into the oil seal
guide, fasten SST guide bolts to secure the oil seal guide on the
crankshaft.
Align the large hole of the oil seal guide with the collar knock
of the crankshaft.
After tightening the guide bolts, check that a height differ-
ence or a step between the crankshaft and the oil seal guide
is consistent all around the circumference.
Align the holes in the oil seal press with the guide bolts and insert
the oil seal press.
Attach the accompanying center bolt to the oil seal press and
tighten it until it stops to press-fit the crankshaft rear oil seal.
Tighten the center bolt until the press comes in contact and check
that the oil seal is press-fit evenly around the circumference.
Remove the SST.
MOUNTING THE FLYWHEEL ASSEMBLY
Reference: ENGINE MECHANICAL
ASSEMBLY, OVERHAUL,
ASSEMBLY (Page 10-59)
(J05E), FLYWHEEL
MOUNTING THE FLYWHEEL
