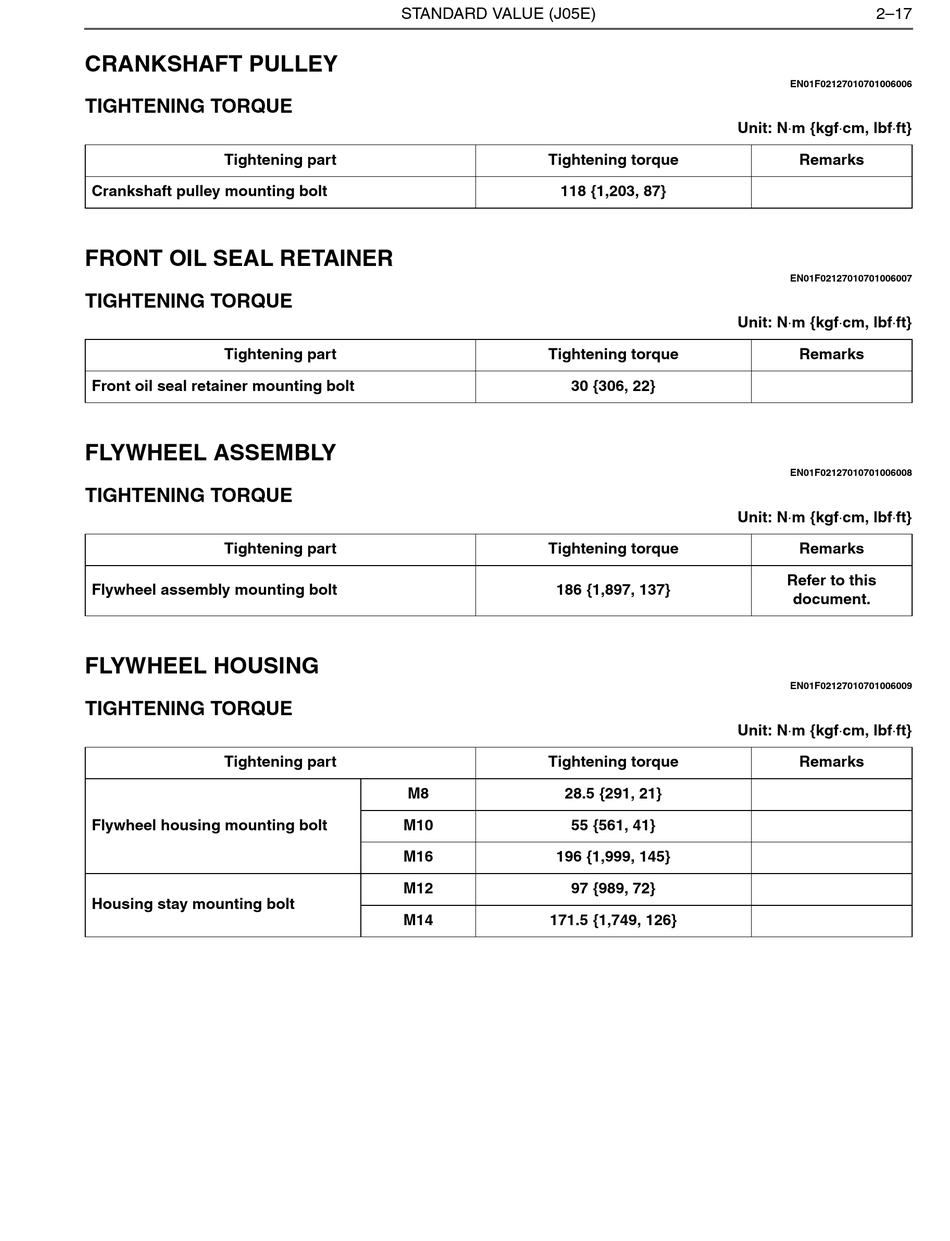

Crankshaft Pulley; Front Oil Seal Retainer; Flywheel Assembly; Flywheel Housing - Hino S5-LJ05E04A Workshop Manual

CRANKSHAFT PULLEY

TIGHTENING TORQUE
Tightening part
Crankshaft pulley mounting bolt

FRONT OIL SEAL RETAINER

TIGHTENING TORQUE
Tightening part
Front oil seal retainer mounting bolt

FLYWHEEL ASSEMBLY

TIGHTENING TORQUE
Tightening part
Flywheel assembly mounting bolt

FLYWHEEL HOUSING

TIGHTENING TORQUE
Tightening part
Flywheel housing mounting bolt
Housing stay mounting bolt
STANDARD VALUE (J05E)
Tightening torque
118 {1,203, 87}
Tightening torque
30 {306, 22}
Tightening torque
186 {1,897, 137}
Tightening torque
M8 28.5 {291, 21}
M10 55 {561, 41}
M16 196 {1,999, 145}
M12 97 {989, 72}
M14 171.5 {1,749, 126}
2–17
EN01F02127010701006006
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701006007
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701006008
Unit: Nm {kgfcm, lbfft}
Remarks
Refer to this
document.
EN01F02127010701006009
Unit: Nm {kgfcm, lbfft}
Remarks
