UNION BOLT
LEAKAGE
PIPE
A : INJECTOR PART (M8 x 1.0)
B : CAMSHAFT HOUSING PART (M8 x 1.25)
A
A
LEAKAGE
PIPE
CYLINDER HEAD PART
UNION BOLT
FUEL SYSTEM (J05E)
5.

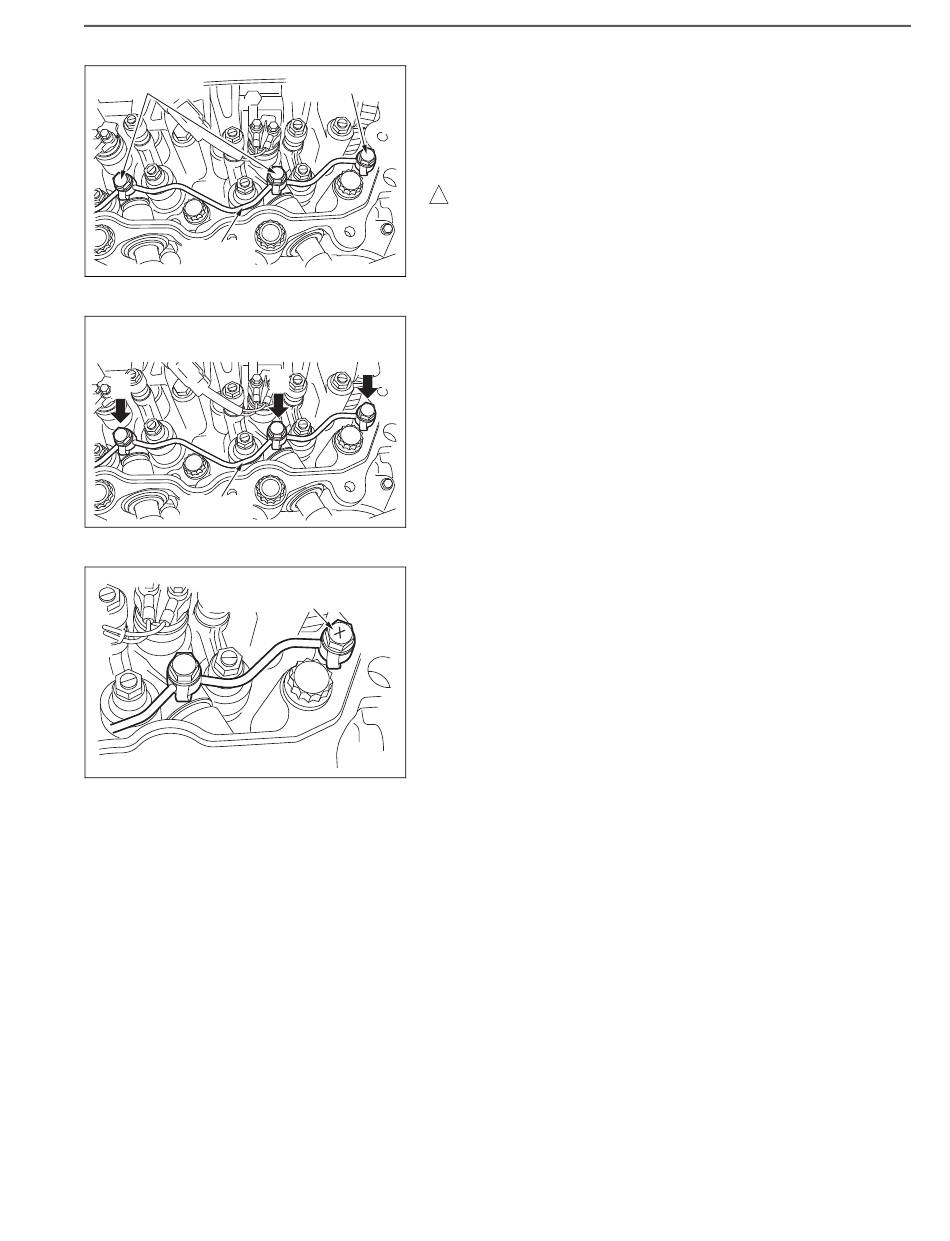

MOUNTING THE LEAKAGE PIPE
(1)
Remove dirt or foreign matters from the gasket mounting surface.
UNION BOLT
(2)
Mount the leakage pipe to the injector and cylinder head with a
new gasket and 5 union bolts.
Tightening Torque:
9.8-4.7 N·m {100-149 kgf·cm, 7.3-10.8 lbf·ft}
! CAUTION
•
Do not reuse the old gasket.
•
The leakage pipe can be twisted easily. Use care in handling.
SHTS021270600105
•
Note that the screw pitch is different between 4 injector
union bolts and the cylinder head union bolt.
B
SHTS021270600106
•
An "X" mark is put on the cylinder head union bolt.
SHTS021270600107
6.
MOUNTING THE HEAD COVER
Reference: ENGINE MECHANICAL (J05E), HEAD COVER,
REPLACEMENT, MOUNTING THE HEAD COVER (Page 10-4)
7.
AIR BLEEDING OF FUEL SYSTEM
Reference: FUEL SYSTEM (J05E), FUEL FILTER AND CASE
(ENGINE SIDE), REPLACEMENT, AIR BLEEDING OF FUEL
SYSTEM (Page 7-16)
7–45
