Hino S5-LJ05E04A Workshop Manual page 240

8–16
CLAMP
A
X
COVER
EMISSION CONTROL (J05E)
MOUNTING THE CLOSED VENTILATOR

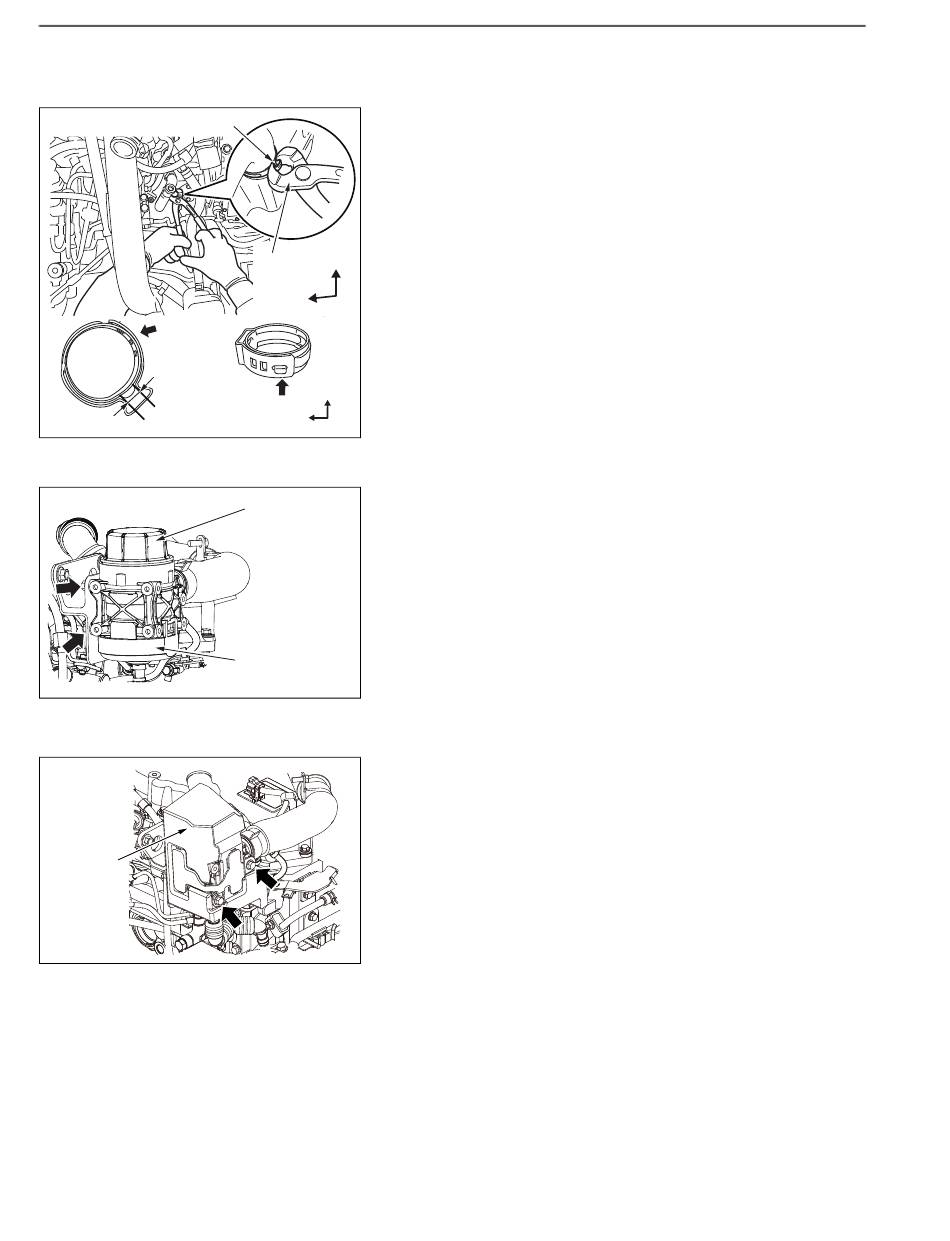

1. MOUNTING THE CLOSED VENTILATOR
(1) Hose attached to the flywheel housing, attach the clamp is
crimped using a SST.
Standard value: (X) 6 mm {0.236 in.} or less
SST:
NOTICE
•
Installed so that the clamp claw in the direction of A.
SST
Rh
•
Install the new clamp.
Fr
Rh
A
Fr
SHTS021270700030
(2) Mount the closed ventilator to the bracket with the 4 bolts.
Tightening Torque:
CAP
CLOSED
VENTILATOR
SHTS021270700031
(3) Mount the closed ventilator cover from the 2 bolts.
Tightening Torque:
SHTS021270700032
S0920-E0010
Vemt pipe tool
31 N·m {316 kgf·cm, 23 lbf·ft}
31 N·m {316 kgf·cm, 23 lbf·ft}
