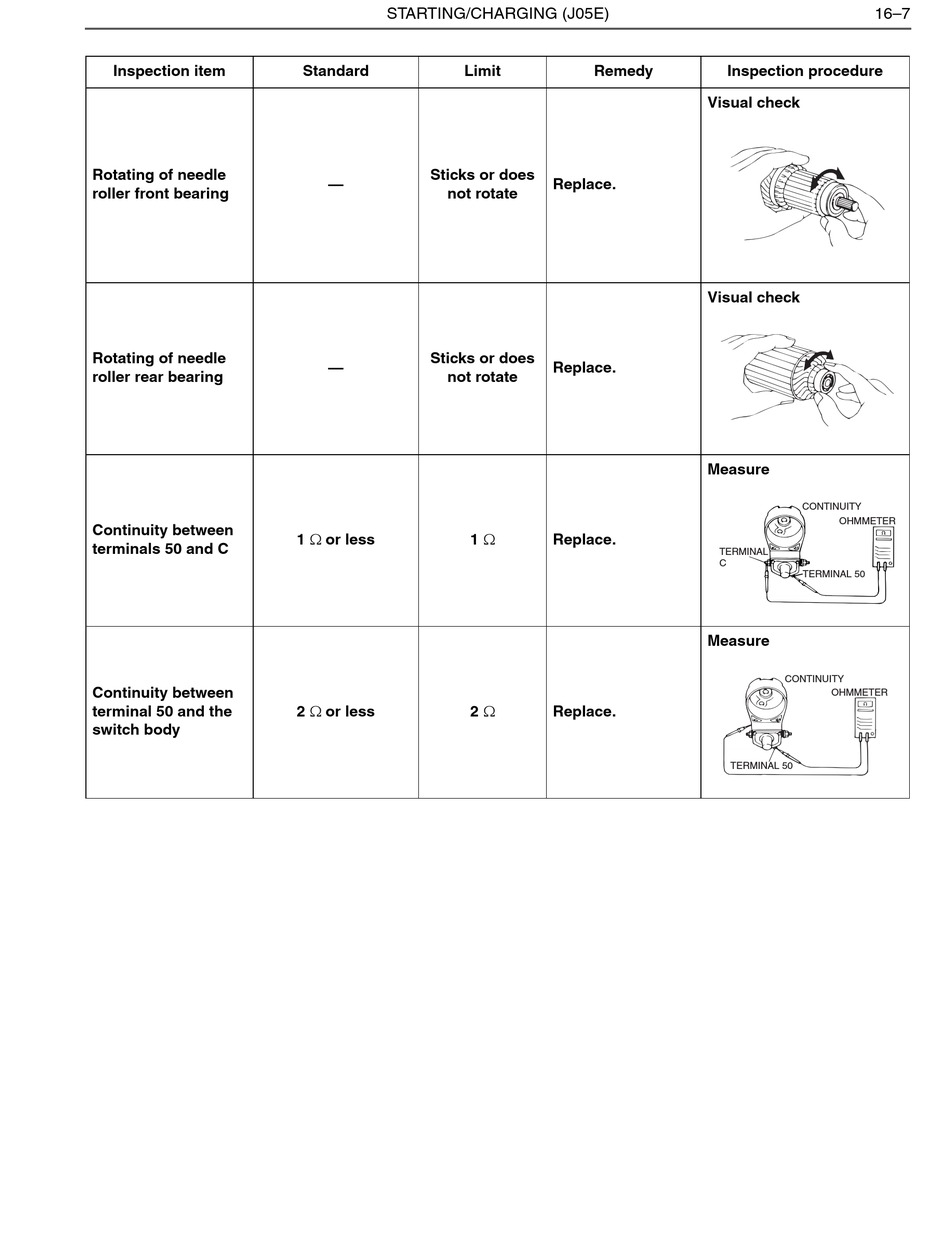

Hino S5-LJ05E04A Workshop Manual page 616

Inspection item
Rotating of needle
roller front bearing
Rotating of needle
roller rear bearing
Continuity between
terminals 50 and C
Continuity between
terminal 50 and the
switch body
STARTING/CHARGING (J05E)
Standard Limit
Sticks or does
—
not rotate
Sticks or does
—
not rotate
1  or less 1 
2  or less 2 
Remedy Inspection procedure
Visual check
Replace.
Visual check
Replace.
Measure
Replace.
TERMINAL
C
Measure
Replace.
TERMINAL 50
16–7
CONTINUITY
OHMMETER
TERMINAL 50
CONTINUITY
OHMMETER
