Hino S5-LJ05E04A Workshop Manual page 353

MAIN IDLE GEAR
SHAFT MOUNTING BOLT
CAM IDLE GEAR
BUSH
IDLE GEAR
SHAFT
ENGINE MECHANICAL (J05E)
(4)
4.
(1)
SHTS021270900164
5.
MOUNTING THE CAMSHAFT DRIVE GEAR AND
CAM IDLE GEAR
1.
(1)
THRUST
PLATE
SYLINDER
HEAD
SHTS021270900165
2.
3.
4.
Fasten the main idle gear shaft mounting bolt to secure the main
idle gear on the cylinder block.
Tightening Torque:
172 N·m {1,754 kgf·cm, 127 lbf·ft}
INSPECTING EACH IDLE GEAR
Use the thickness gauge to measure the thrust play of each idle
gear and use dial gauge to measure the backlash of each idle
gear. Check that measurement values are within the standard
value.
Reference: ENGINE MECHANICAL (J05E), TIMING GEAR &
CAM IDLE GEAR, OVERHAUL, INSPECTING INSTALLATION
OF EACH GEAR (Page 10-80)
MOUNTING THE FLYWHEEL HOUSING
Reference: ENGINE MECHANICAL
HOUSING, REPLACEMENT, MOUNTING THE FLYWHEEL
HOUSING (Page 10-68)
MOUNTING THE CAM IDLE GEAR

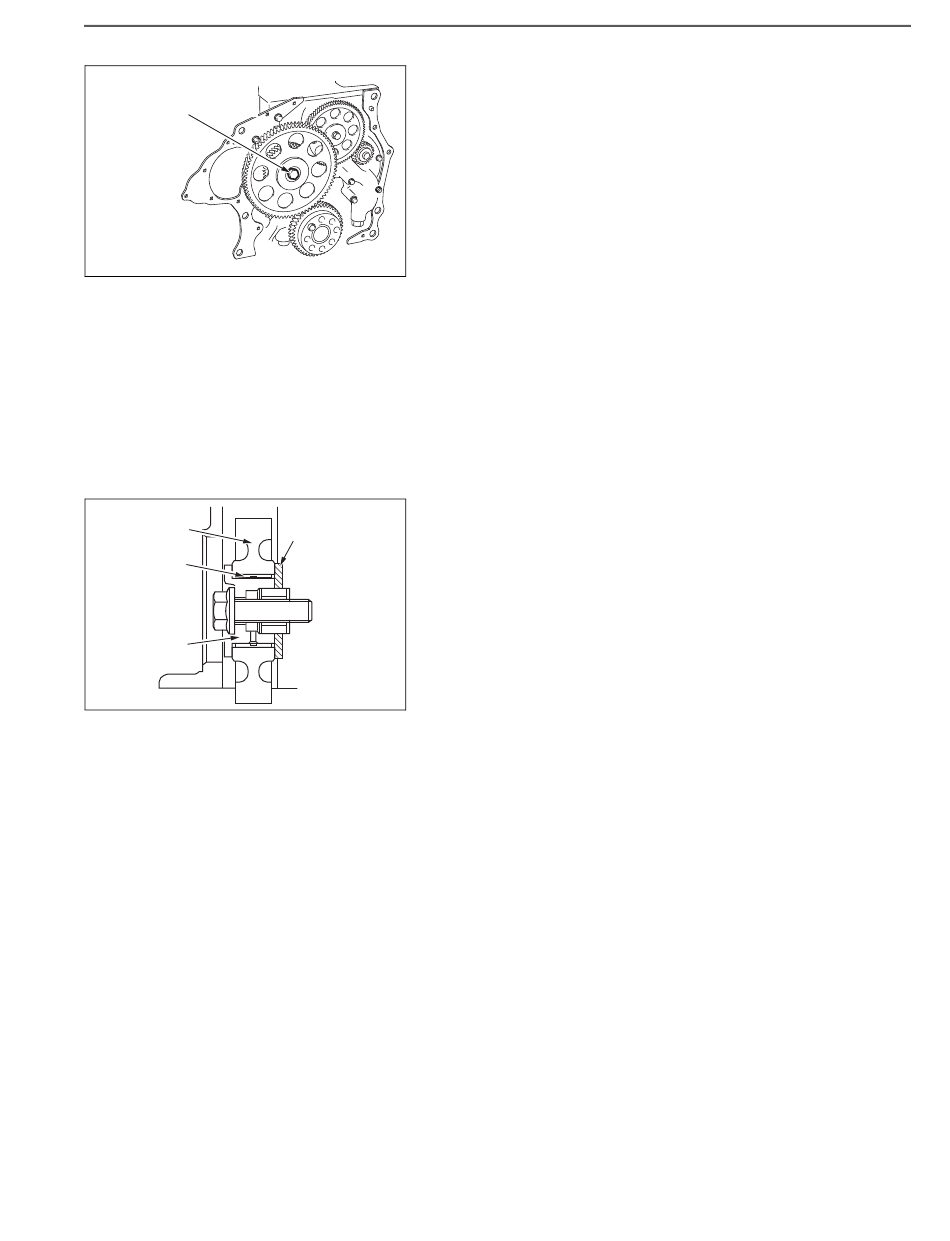

After applying engine oil to the thrust plate, cam idle gear bush,
idle gear shaft and the seating surface and bolt threads of the idle
gear shaft, orient an oil hole in the idle gear shaft to the downward
direction and assemble them as shown in the figure.
MOUNTING THE CYLINDER HEAD
Reference: ENGINE MECHANICAL (J05E), CYLINDER HEAD
ASSEMBLY, REPLACEMENT, MOUNTING THE CYLINDER
HEAD ASSEMBLY (Page 10-25)
MOUNTING THE CAMSHAFT DRIVE GEAR
Reference: ENGINE MECHANICAL (J05E), CYLINDER HEAD
ASSEMBLY, REPLACEMENT, MOUNTING THE CYLINDER
HEAD ASSEMBLY (Page 10-25)
MOUNTING THE CAMSHAFT ASSEMBLY
Reference: ENGINE MECHANICAL
ASSEMBLY, OVERHAUL, ASSEMBLING THE CAMSHAFT
ASSEMBLY (Page 10-19)
10–77
(J05E), FLYWHEEL
(J05E), CAMSHAFT
