Hino S5-LJ05E04A Workshop Manual page 128

WIRE ROPE
10° OR
LESS
10° OR LESS
ENGINE
LEFT SIDE
LEFT SIDE RIGHT SIDE
NUT NUT
FRONT SIDE
SST

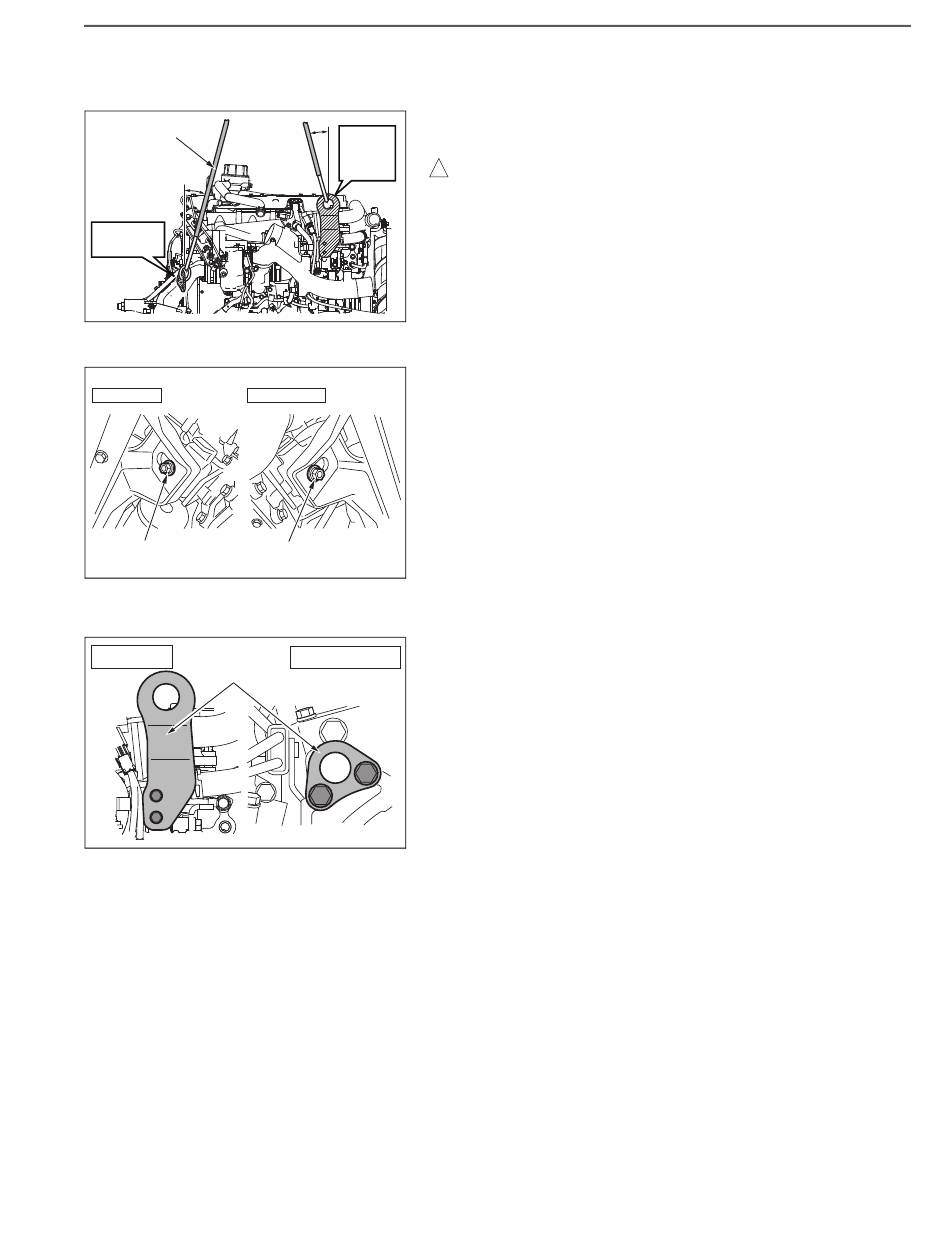

MOUNTING AND DISMOUNTING THE ENGINE (J05E)
MOUNTING THE ENGINE ASSEMBLY
1. MOUNTING THE ENGINE
(1) Lift the engine in the similar fashion to removing and set the
ENGINE
engine to the frame.
RIGHT
! CAUTION
SIDE
•
Do not allow the engine to contact with the frame and cab
during work.
•
Handle it with care because it is a heavy load.
•
Do not allow the engine hoist wire rope to contact with the
engine or transmission.
(2) If the engine mounting bolt does not match with the mounting
hole, mount the engine while adjusting the engine mounting posi-
SHTS021270400016
tion by using the tire lever.
(3) Tighten the 2 mounting nuts of the engine mounting.
Tightening Torque:
98 N·m {999 kgf·cm, 72 lbf·ft}
SHTS021270400017
(4) Remove the SST from the engine.
LEFT REAR SIDE
SHTS021270400018
2. MOUNTING THE TRANSMISSION ASSEMBLY
Reference: CHASSIS (S1-LXJE03A), TRANSMISSION
Reference: CHASSIS (S1-LXJE04A), TRANSMISSION
3. MOUNTING THE CLOSED VENTILATOR
Reference: EMISSION CONTROL (J05E), CLOSED VENTILA-
TOR, REPLACEMENT, MOUNTING THE CLOSED VENTILA-
TOR (Page 8-16)
5–11
