REAR ENGINE
MOUNTING BRACKET
FRONT ENGINE
MOUNTING BRACKET
FRONT ENGINE
MOUNTING
ENGINE MECHANICAL (J05E)
MOUNTING
BRACKET

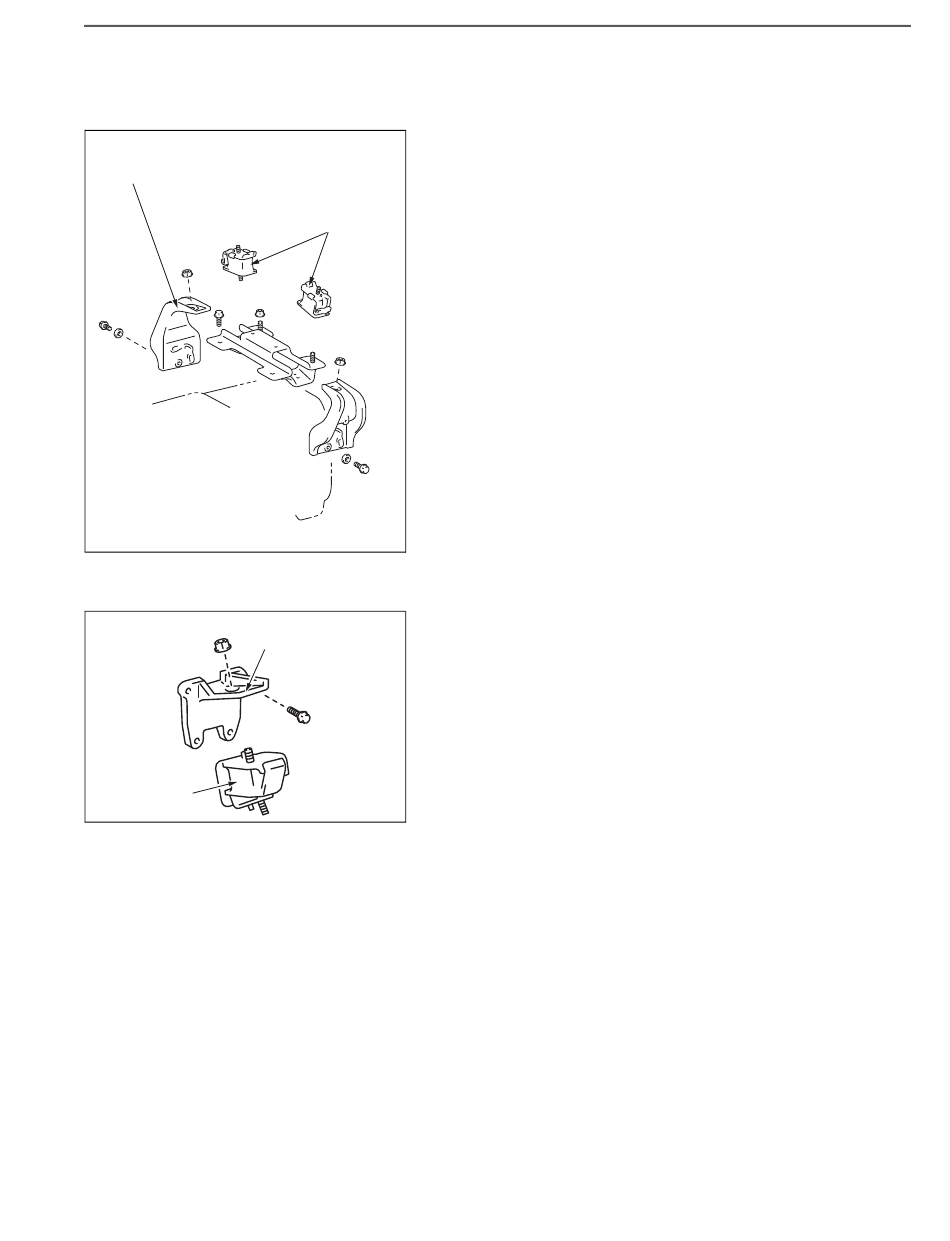

1. MOUNTING THE ENGINE MOUNTING AND BRACKET
(1) Use the bolt and nut, attach the rear engine mounting bracket to
the flywheel housing.
Tightening Torque:
REAR ENGINE
MOUNTING
(2) Mount the rear engine mounting to the rear engine mounting
bracket with the nut.
Tightening Torque:
SHTS021270900295
(3) Mount the front engine mounting bracket to the cylinder block with
4 bolts.
Tightening Torque:
(4) Fasten the nut to secure the front engine mounting on the front
engine mounting bracket.
Tightening Torque:
SHTS021270900296
THE ENGINE
103 N·m {1,050 kgf·cm, 76 lbf·ft}
64 N·m {653 kgf·cm, 47 lbf·ft}
125 N·m {1,275 kgf·cm, 92 lbf·ft}
98 N·m {999 kgf·cm, 72 lbf·ft}
