11–70
DEF INJECTOR
DEF INJECTOR
DEF
INLET HOSE
COOLANT
INLET HOSE
COOLANT
OUTLET HOSE
EXHAUST (J05E)

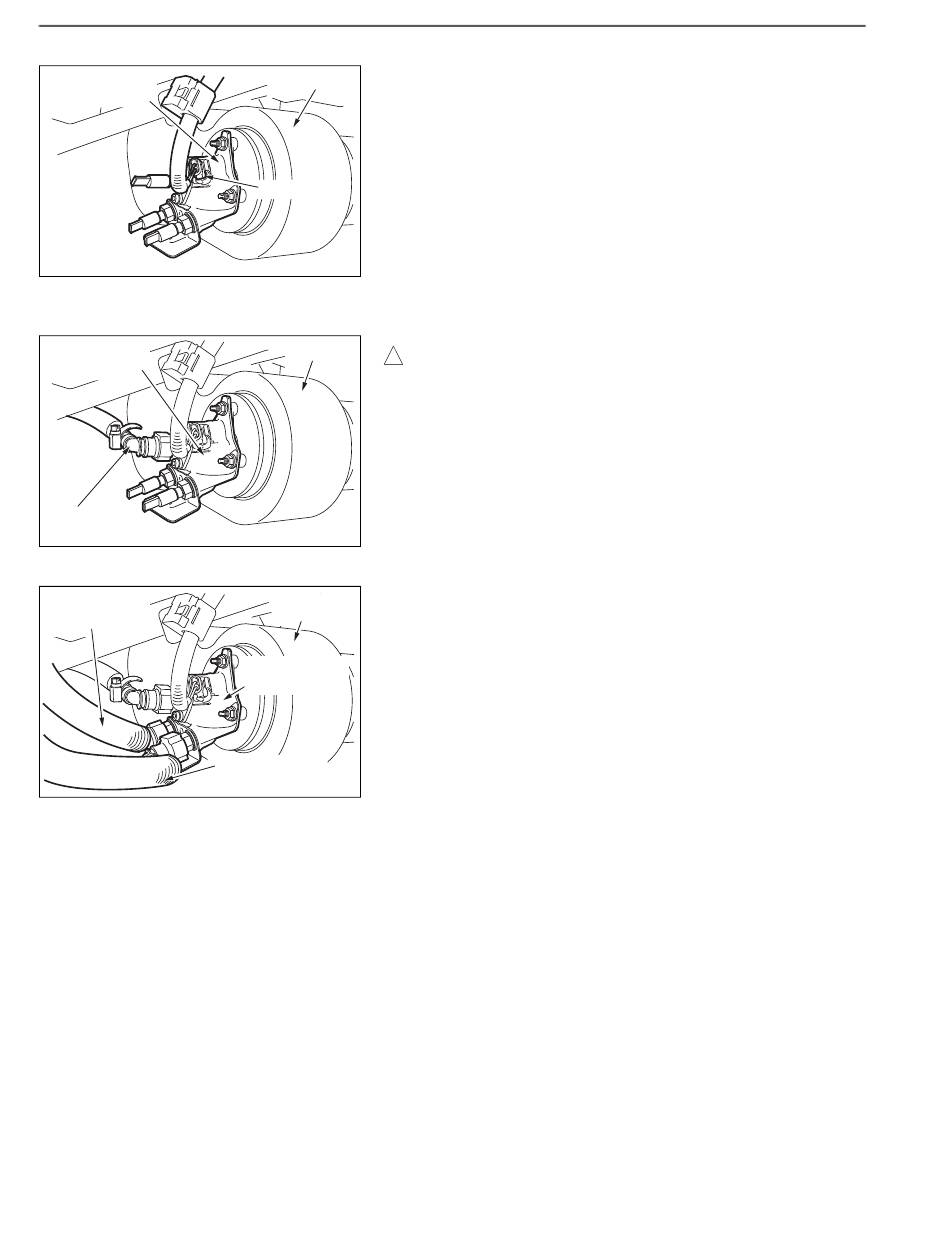

3. CONNECTING THE HARNESS
(1) Connect the connector to the DEF injector.
MUFFLER
CONNECTOR
SHTS021271000118
4. CONNECTING THE HOSE.
MUFFLER
! CAUTION
Refer to "Cautions on DEF/coolant piping attaching and detach-
ing".
Reference: EXHAUST (J05E), DEF-SCR & DPR, CAUTIONS ON
DEF/COOLANT PIPING ATTACHING AND DETACHING (Page 11-
20)
(1) Connect the DEF inlet hose to the DEF injector.
SHTS021271000119
(2) Connect the coolant inlet hose and coolant outlet hose to the DEF
injector.
MUFFLER
DEF
INJECTOR
SHTS021271000120
