ENGINE MECHANICAL (J05E)
(2)
CAMSHAFT
BEARING
SHTS021270900039
3.
(1)
! CAUTION
Set the clear plastic scale or edged scale against the upper sur-
face of the cylinder head and the side of the camshaft gear. Check
that the wrong mounting preventing drill hole is located above the
scale.
SHTS021270900040
(2)
(3)
FRONT OF ENGINE
4.
SHTS021270900041
(1)
5.
6.

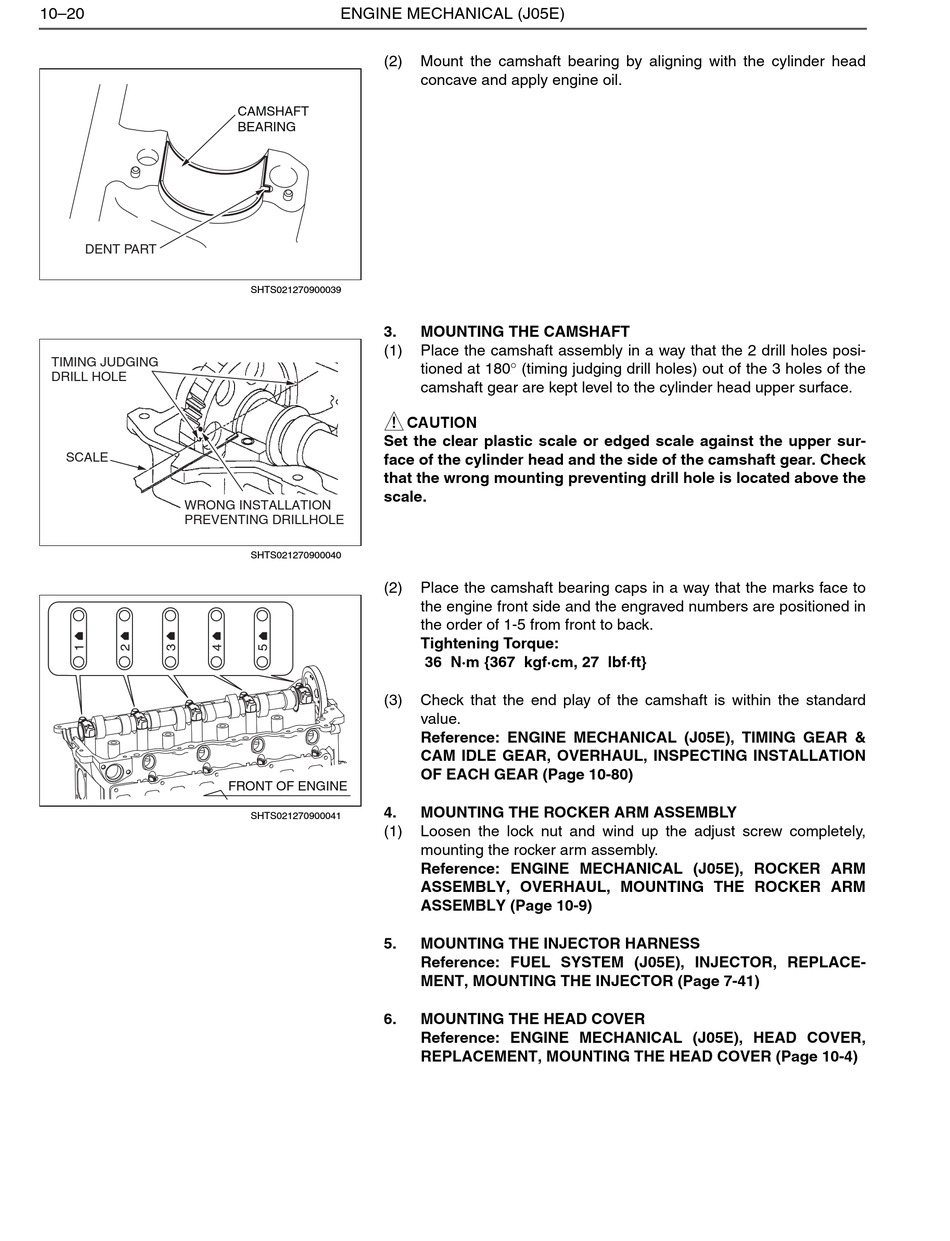

Mount the camshaft bearing by aligning with the cylinder head
concave and apply engine oil.
MOUNTING THE CAMSHAFT
Place the camshaft assembly in a way that the 2 drill holes posi-
tioned at 180 (timing judging drill holes) out of the 3 holes of the
camshaft gear are kept level to the cylinder head upper surface.
Place the camshaft bearing caps in a way that the marks face to
the engine front side and the engraved numbers are positioned in
the order of 1-5 from front to back.
Tightening Torque:
36 N·m {367 kgf·cm, 27 lbf·ft}
Check that the end play of the camshaft is within the standard
value.
Reference: ENGINE MECHANICAL (J05E), TIMING GEAR &
CAM IDLE GEAR, OVERHAUL, INSPECTING INSTALLATION
OF EACH GEAR (Page 10-80)
MOUNTING THE ROCKER ARM ASSEMBLY
Loosen the lock nut and wind up the adjust screw completely,
mounting the rocker arm assembly.
Reference: ENGINE MECHANICAL (J05E), ROCKER ARM
ASSEMBLY, OVERHAUL, MOUNTING THE ROCKER ARM
ASSEMBLY (Page 10-9)
MOUNTING THE INJECTOR HARNESS
Reference: FUEL SYSTEM (J05E), INJECTOR, REPLACE-
MENT, MOUNTING THE INJECTOR (Page 7-41)
MOUNTING THE HEAD COVER
Reference: ENGINE MECHANICAL (J05E), HEAD COVER,
REPLACEMENT, MOUNTING THE HEAD COVER (Page 10-4)
