SPINDLE
GROOVE
BUSH
ENGINE MECHANICAL (J05E)
(3)
! CAUTION
Align the groove in the SST press subassembly with a groove in
CONNECTING ROD
the SST spindle before mounting.
PRESS
SUB ASSY
SHTS021270900203
(4)
PRESS
! CAUTION
Carefully operate the press.
SHTS021270900204
(5)
CHAMFER
! CAUTION
•
•
SHTS021270900205

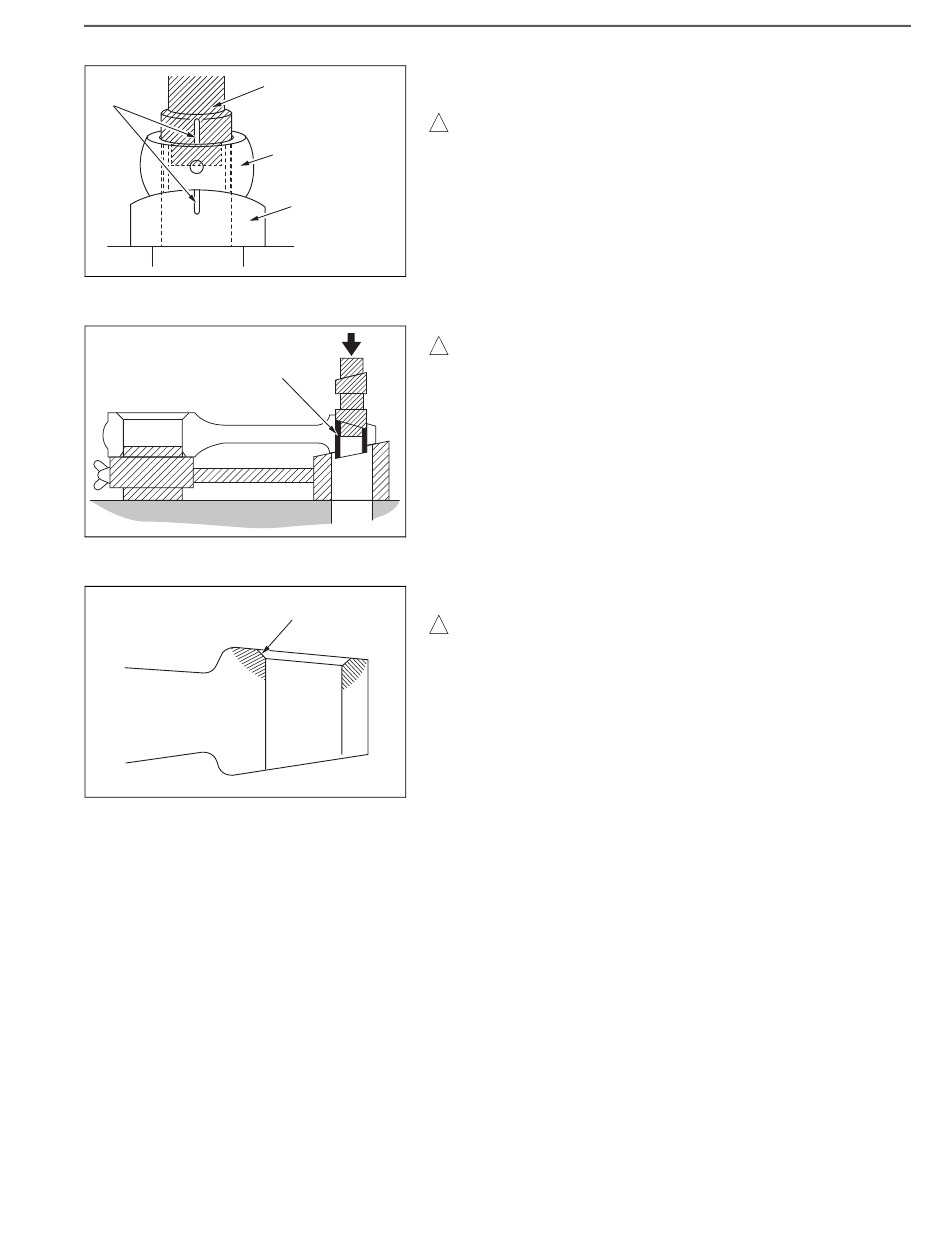

Mount the SST (spindle) to a connecting rod bush.
SST: S0940-21540
Spindle
Use the press to pull off the connecting rod bush.
Evenly chamfer one side of the small end of the connecting rod as
shown in the figure.
Remove all burrs.
After chamfering, remove dirt from the oil hole and the inner
surface of the small end.
