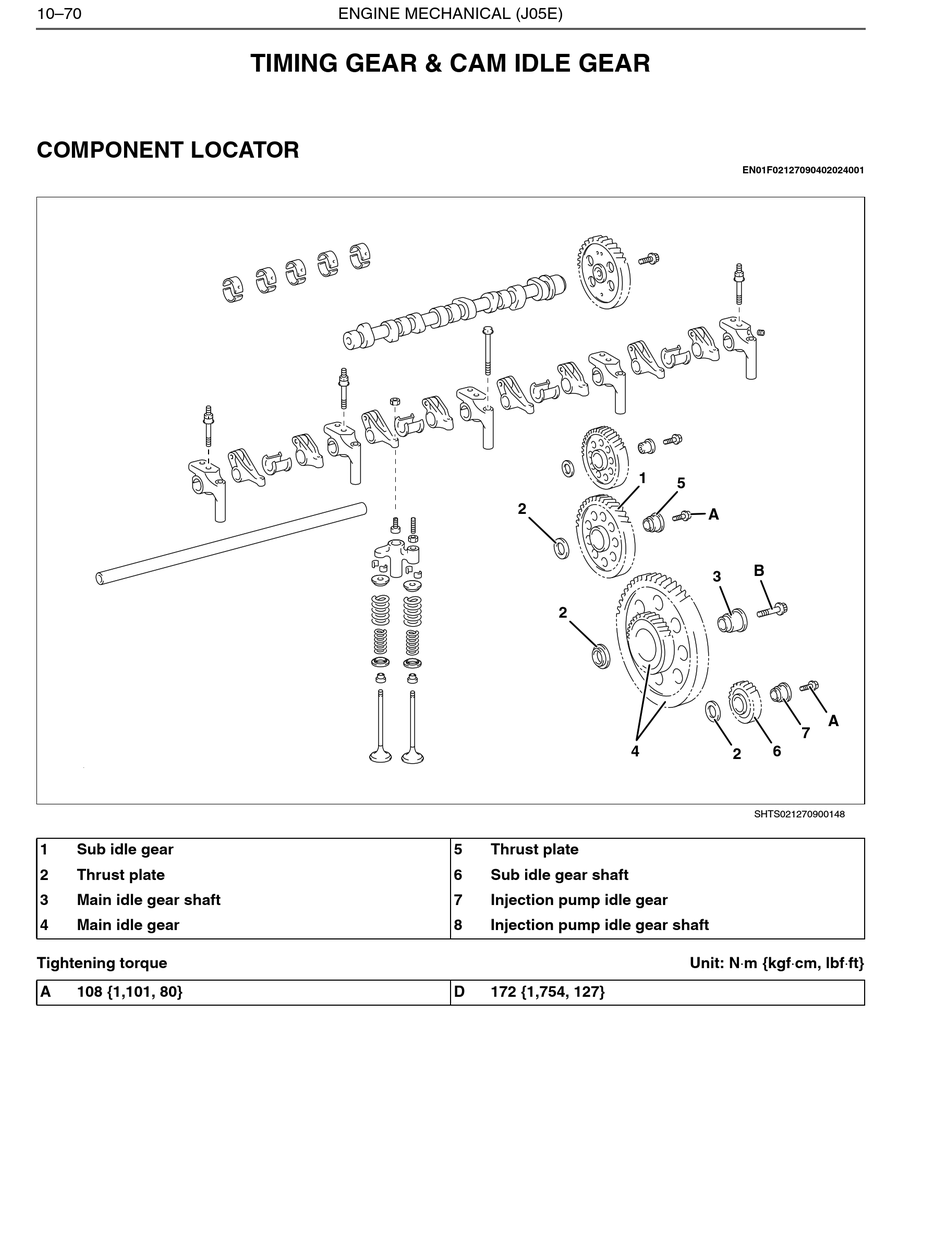

COMPONENT LOCATOR

1 Sub idle gear
2 Thrust plate
3 Main idle gear shaft
4 Main idle gear
Tightening torque
A 108 {1,101, 80}
ENGINE MECHANICAL (J05E)
TIMING GEAR & CAM IDLE GEAR
2
2
4
5 Thrust plate
6 Sub idle gear shaft
7 Injection pump idle gear
8 Injection pump idle gear shaft
D 172 {1,754, 127}
EN01F02127090402024001
1
5
A
B
3
7
6
2
SHTS021270900148
Unit: Nm {kgfcm, lbfft}
A
