Hino S5-LJ05E04A Workshop Manual page 351

GASKET
CYLINDER
REAR END PLATE
BLOCK
THRUST
PLATE
THRUST PLATE
SUB IDLE GEAR
SHAFT
SYLINDER
BLCOCK
SUB IDLE GEAR SHAFT
MOUNTING BOLT
ENGINE MECHANICAL (J05E)
(4)
FLY WHEEI
HOUSING
SHTS021270900157
2.
(1)
SUB IDLE
(2)
GEAR
SUB IDLE GEAR
SHAFT
BOLT
SHTS021270900158
(3)
OIL HOLES
SUB IDLE
GEAR
SHTS021270900159
(4)
SHTS021270900160

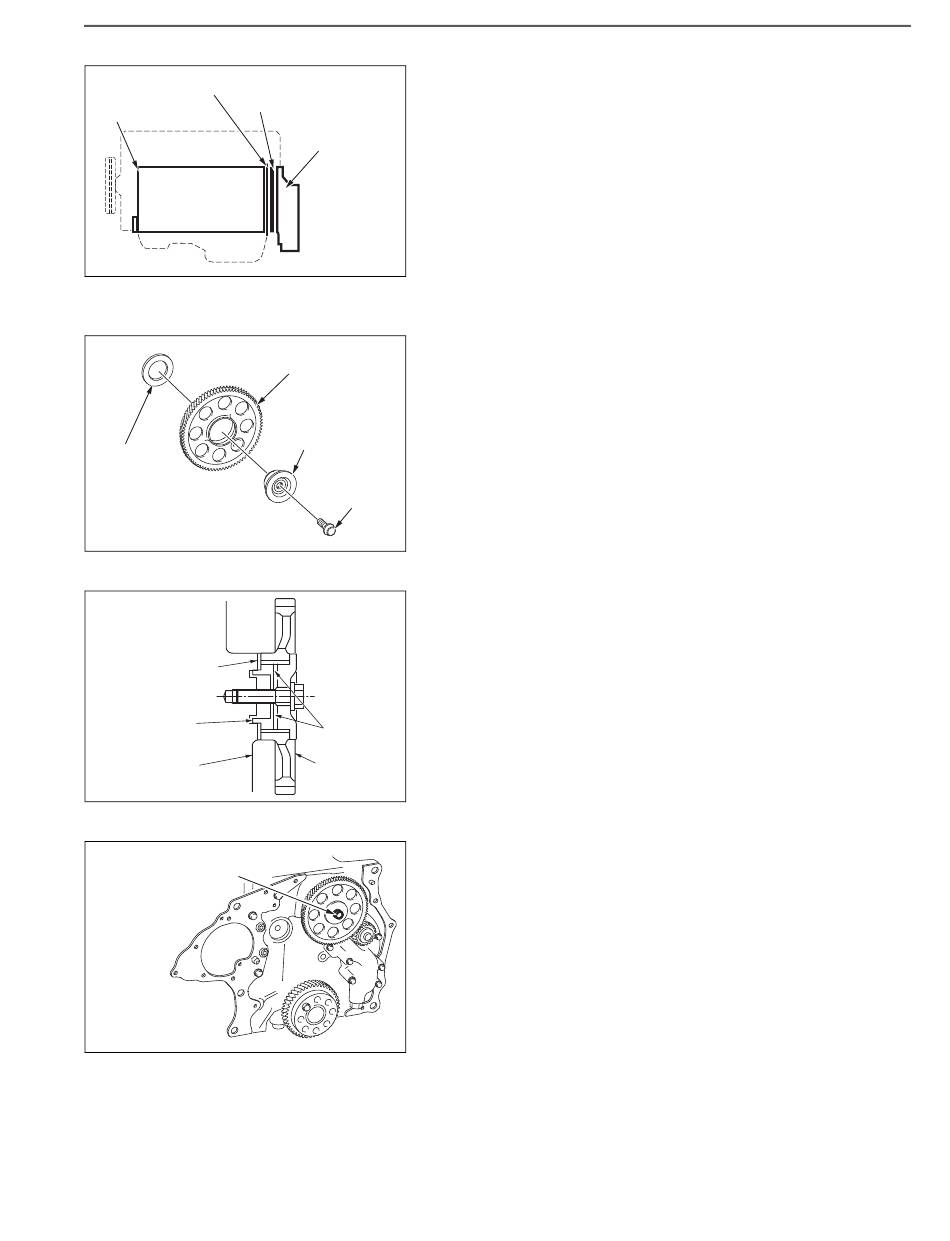

Use the scraper to cut off excessive upper and lower protruding
portions of the gasket so that the gasket will be flush with the
upper and lower surfaces of the cylinder block.
MOUNTING SUB IDLE GEAR
Insert the sub idle gear shaft into the sub idle gear.
Mount the thrust plate.
After applying engine oil to the seating surface and threads of the
sub idle gear shaft mounting bolt, vertically orient oil holes in the
sub idle gear shaft before installation to the cylinder block.
Fasten the sub idle gear shaft mounting bolt to secure the sub idle
gear on the cylinder block.
Tightening Torque:
108 N·m {1,101 kgf·cm, 80 lbf·ft}
10–75
