16–4
STARTER
STARTING/CHARGING (J05E)

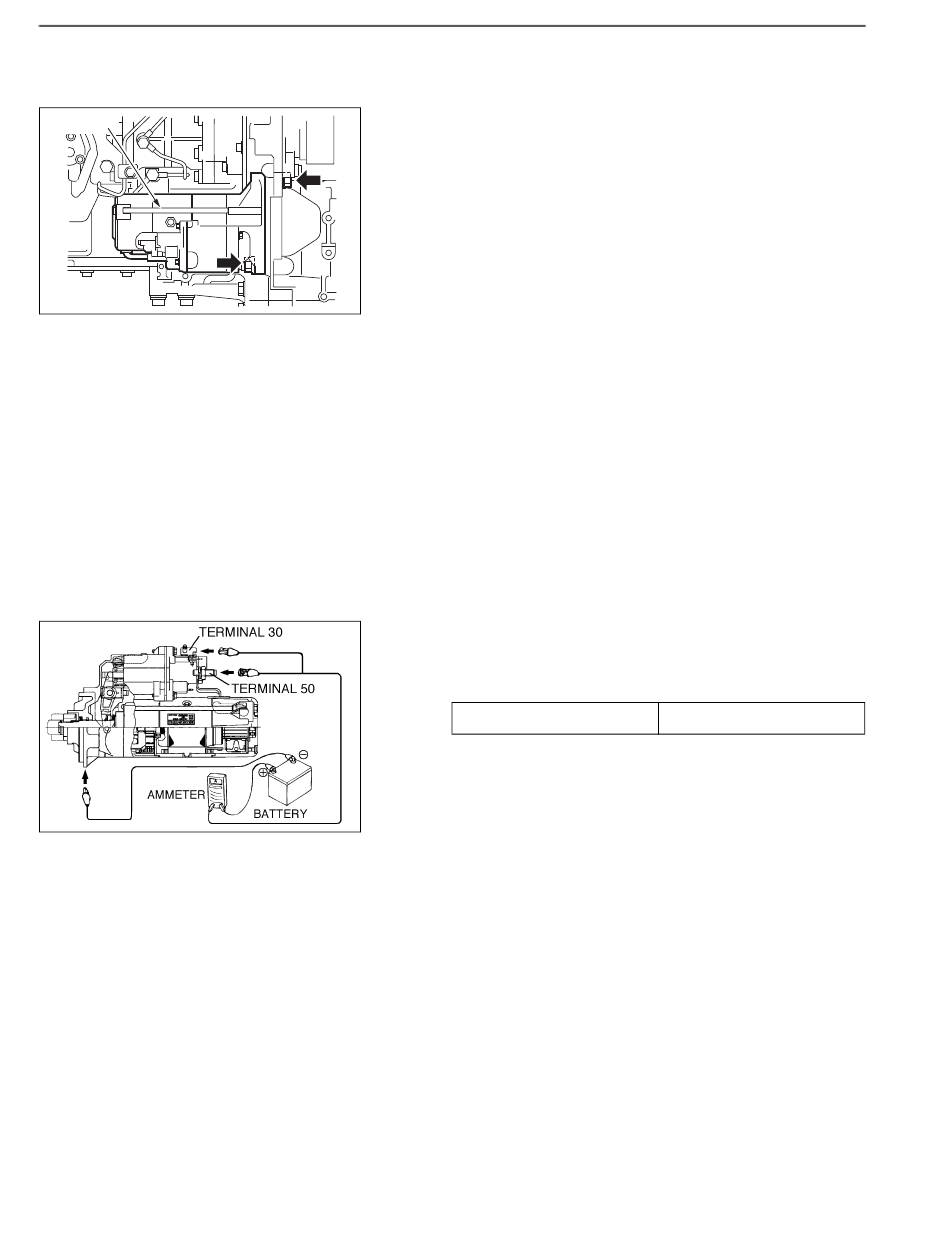

MOUNTING THE STARTER
1. MOUNTING THE STARTER
(1) Install the starter assembly with the bolt and nut.
Tightening Torque:
154 N·m {1,570 kgf·cm, 113.5 lbf·ft}
2. CONNECTING THE HARNESS
(1) Connect the C terminal with the nut.
Tightening Torque:
4.5 N·m {46 kgf·cm, 3.3 lbf·ft}
(2) Install the starter wire to terminal B with the nut, and install the ter-
minal cap.
SHTS021271500003
Tightening Torque:
21 N·m {214 kgf·cm, 15.4 lbf·ft}
(3) Install the wire harness clamp bracket with the bolt.
Tightening Torque:
18 N·m {184 kgf·cm, 13.2 lbf·ft}
IMPORTANT POINTS - INSPECTION
1. MATTER FOR REFERENCE
NOTICE
These tests must be performed within 3 to 5 seconds to avoid
burning out the coil.
2. PERFORM NO LOAD PERFORMANCE TEST
(1) Connect battery and ammeter to the starter as shown.
(2) Check that the starter rotates smoothly and steadily with the pin-
ion gear moving out. Check the reading on the ammeter.
SHTS021271500004
Standard value 220 A or less/11 V
