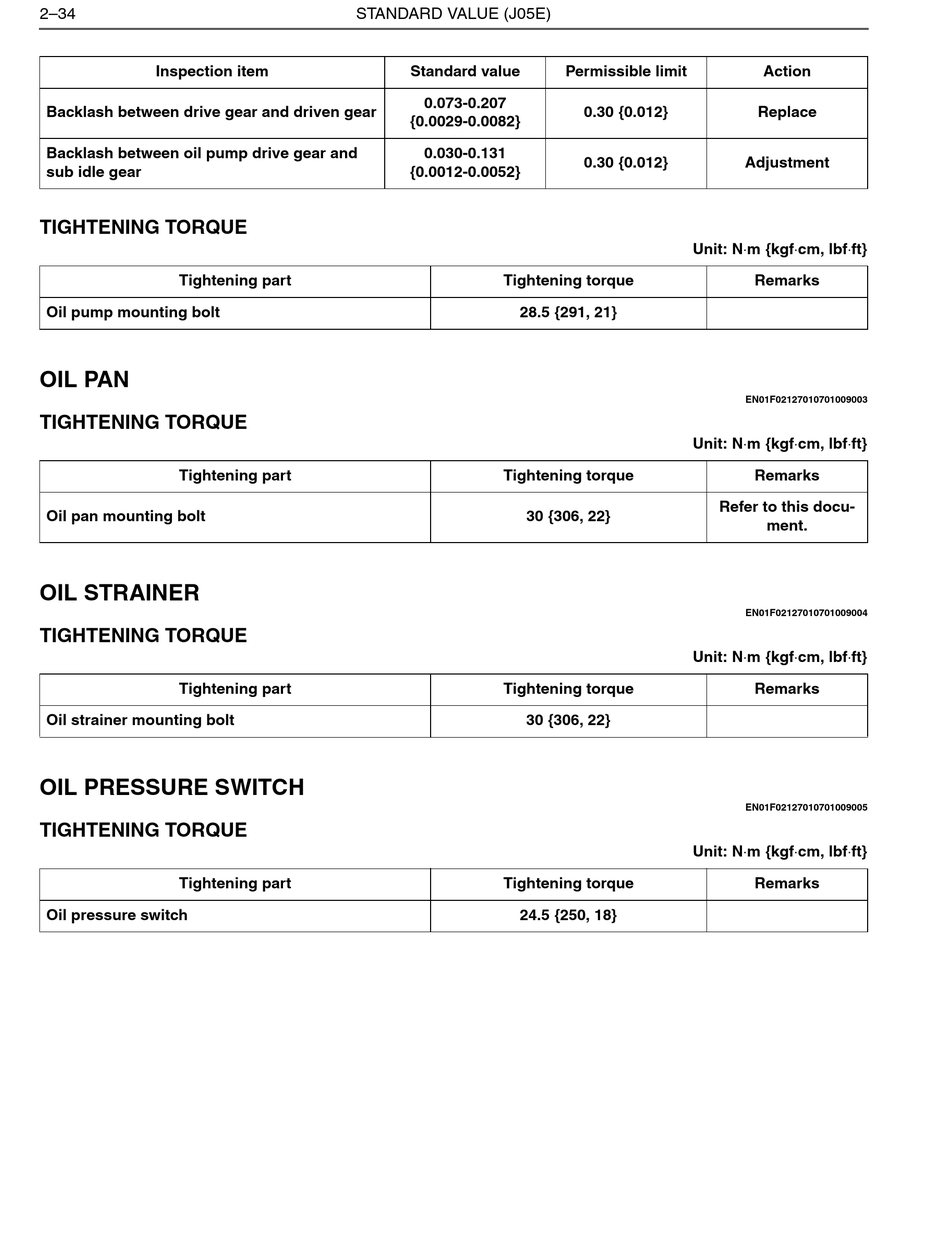

Oil Pan; Oil Strainer; Oil Pressure Switch - Hino S5-LJ05E04A Workshop Manual

2–34
Inspection item
Backlash between drive gear and driven gear
Backlash between oil pump drive gear and
sub idle gear
TIGHTENING TORQUE
Tightening part
Oil pump mounting bolt

OIL PAN

TIGHTENING TORQUE
Tightening part
Oil pan mounting bolt

OIL STRAINER

TIGHTENING TORQUE
Tightening part
Oil strainer mounting bolt

OIL PRESSURE SWITCH

TIGHTENING TORQUE
Tightening part
Oil pressure switch
STANDARD VALUE (J05E)
Standard value
0.073-0.207
{0.0029-0.0082}
0.030-0.131
{0.0012-0.0052}
Tightening torque
28.5 {291, 21}
Tightening torque
30 {306, 22}
Tightening torque
30 {306, 22}
Tightening torque
24.5 {250, 18}
Permissible limit
0.30 {0.012}
0.30 {0.012} Adjustment
Unit: Nm {kgfcm, lbfft}
EN01F02127010701009003
Unit: Nm {kgfcm, lbfft}
Refer to this docu-
EN01F02127010701009004
Unit: Nm {kgfcm, lbfft}
EN01F02127010701009005
Unit: Nm {kgfcm, lbfft}
Action
Replace
Remarks
Remarks
ment.
Remarks
Remarks
