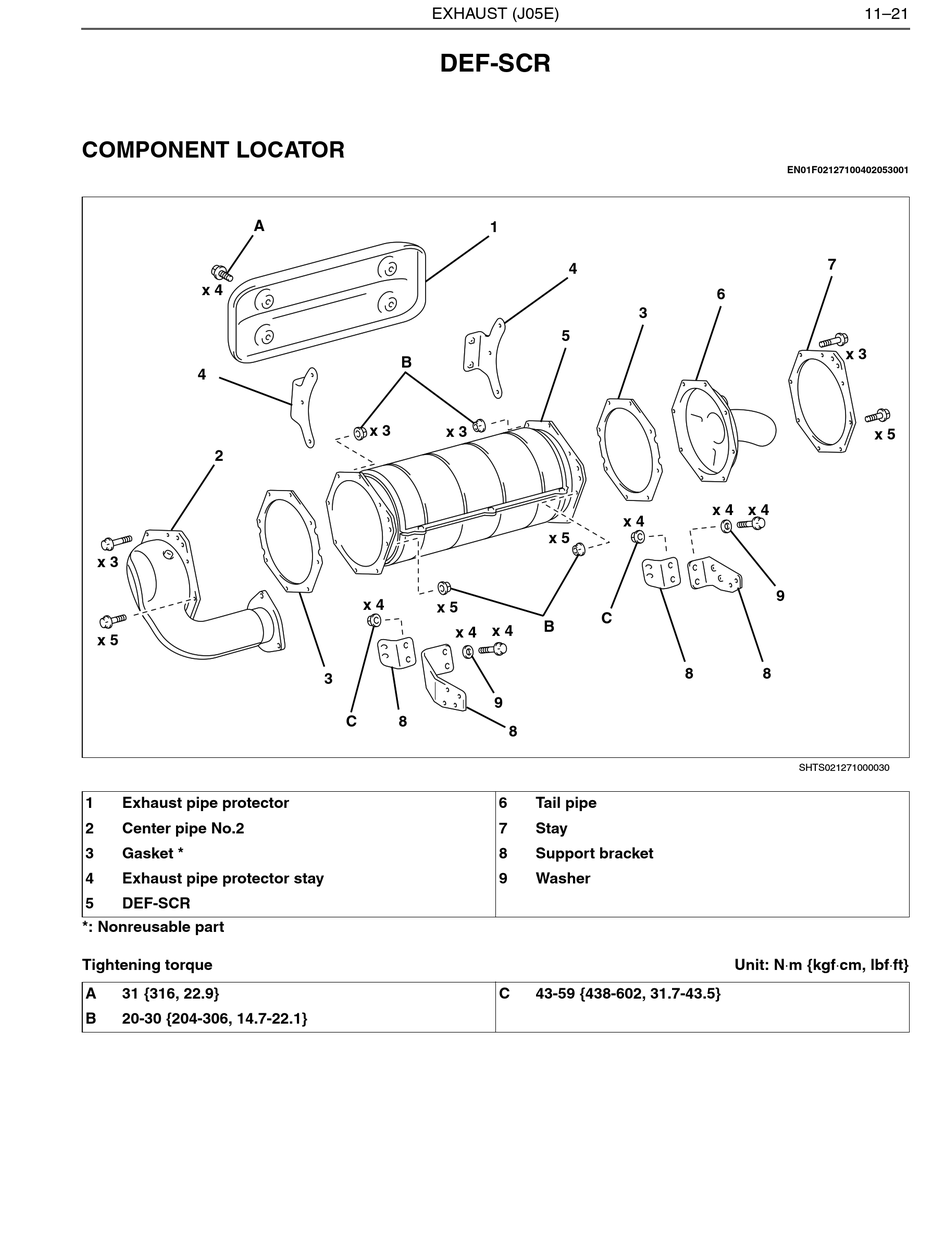

COMPONENT LOCATOR

A
x 4
4
2
x 3
x 5
1 Exhaust pipe protector
2 Center pipe No.2
3 Gasket *
4 Exhaust pipe protector stay
5

DEF-SCR

*: Nonreusable part
Tightening torque
A 31 {316, 22.9}
B 20-30 {204-306, 14.7-22.1}
EXHAUST (J05E)
DEF-SCR
1
B
x 3
x 3
x 4
x 5
x 4 x 4
3
9
C 8
6
7
8
9
C
4
3
5
x 4
x 5
C
B
8
8
Tail pipe
Stay
Support bracket
Washer
43-59 {438-602, 31.7-43.5}
11–21
EN01F02127100402053001
7
6
x 3
x 5
x 4 x 4
9
8
SHTS021271000030
Unit: Nm {kgfcm, lbfft}
