10–72

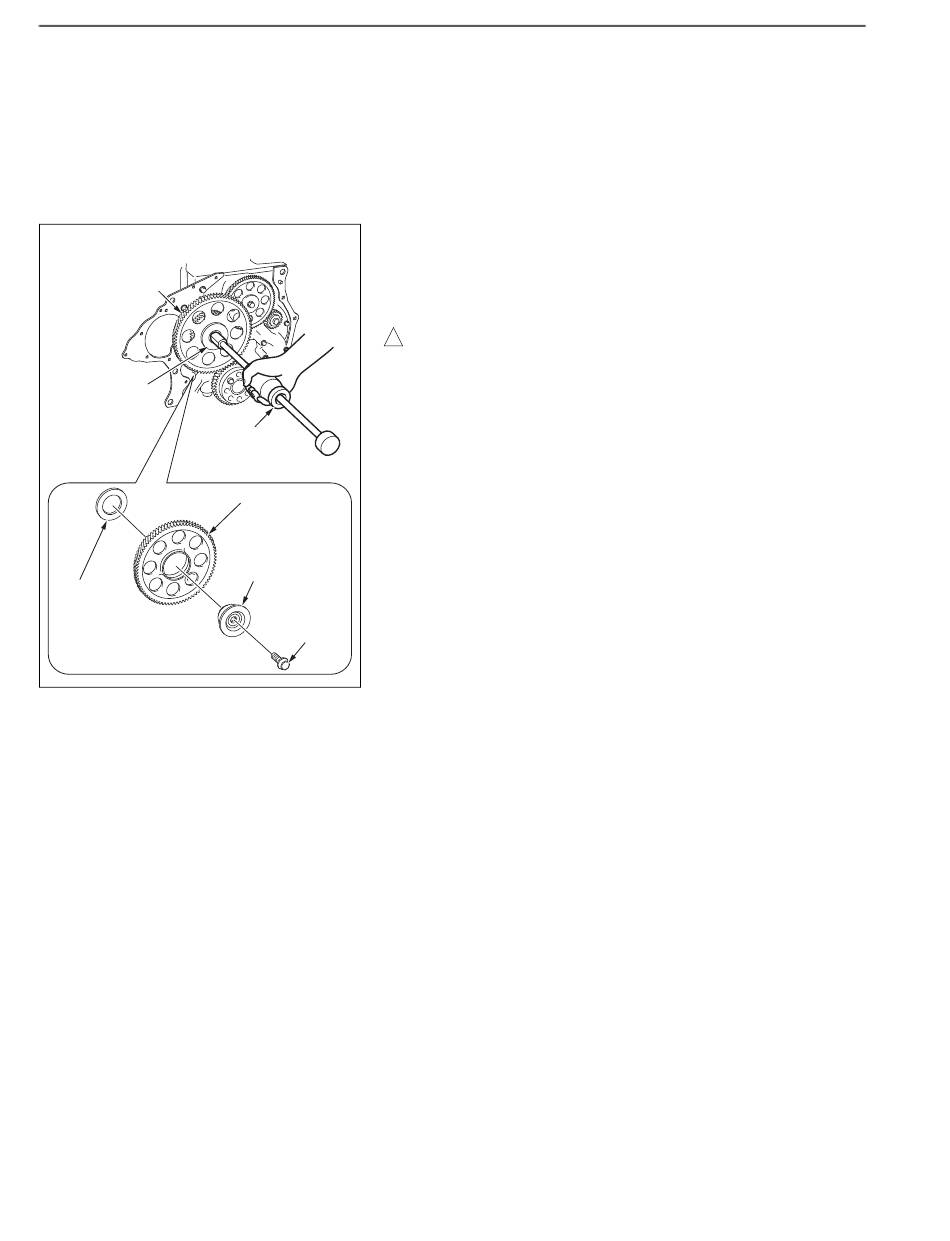

MAIN IDLE
GEAR
MAIN IDLE
GEAR SHAFT
THRUST
PLATE
ENGINE MECHANICAL (J05E)
REMOVING THE TIMING GEARS AND THE REAR
END PLATE FROM FLYWHEEL HOUSING
1.
2.
(1)
(2)
! CAUTION
Use care not to drop the main idle gear and thrust plate.
(3)
SST
MAIN IDLE
GEAR
MAIN IDLE
GEAR SHAFT
BOLT
SHTS021270900151
REMOVING THE FLYWHEEL HOUSING
Reference: ENGINE MECHANICAL
HOUSING, REPLACEMENT, REMOVING THE FLYWHEEL
HOUSING (Page 10-66)
REMOVING THE MAIN IDLE GEAR
Unfasten the bolt of the main idle gear shaft.
Use the SST to pull off the main idle gear shaft and remove the
main idle gear shaft, a main idle gear and a thrust plate.
SST: S0942-01100
Sliding hammer
Remove the main idle gear shaft and thrust plate from the main
idle gear.
(J05E), FLYWHEEL
