Hino S5-LJ05E04A Workshop Manual page 645

TURBOCHARGER (J05E)
8.
(1)
TURBO-
CHARGER
ASSEMBLY
TURBOCHARGER
INSULATOR
SHTS021271600021
9.
(1)
10. MOUNTING THE INTAKE PIPE
11. MOUNTING THE INTAKE HOSE
12. ADDING ENGINE OIL
13. ADDING THE COOLANT

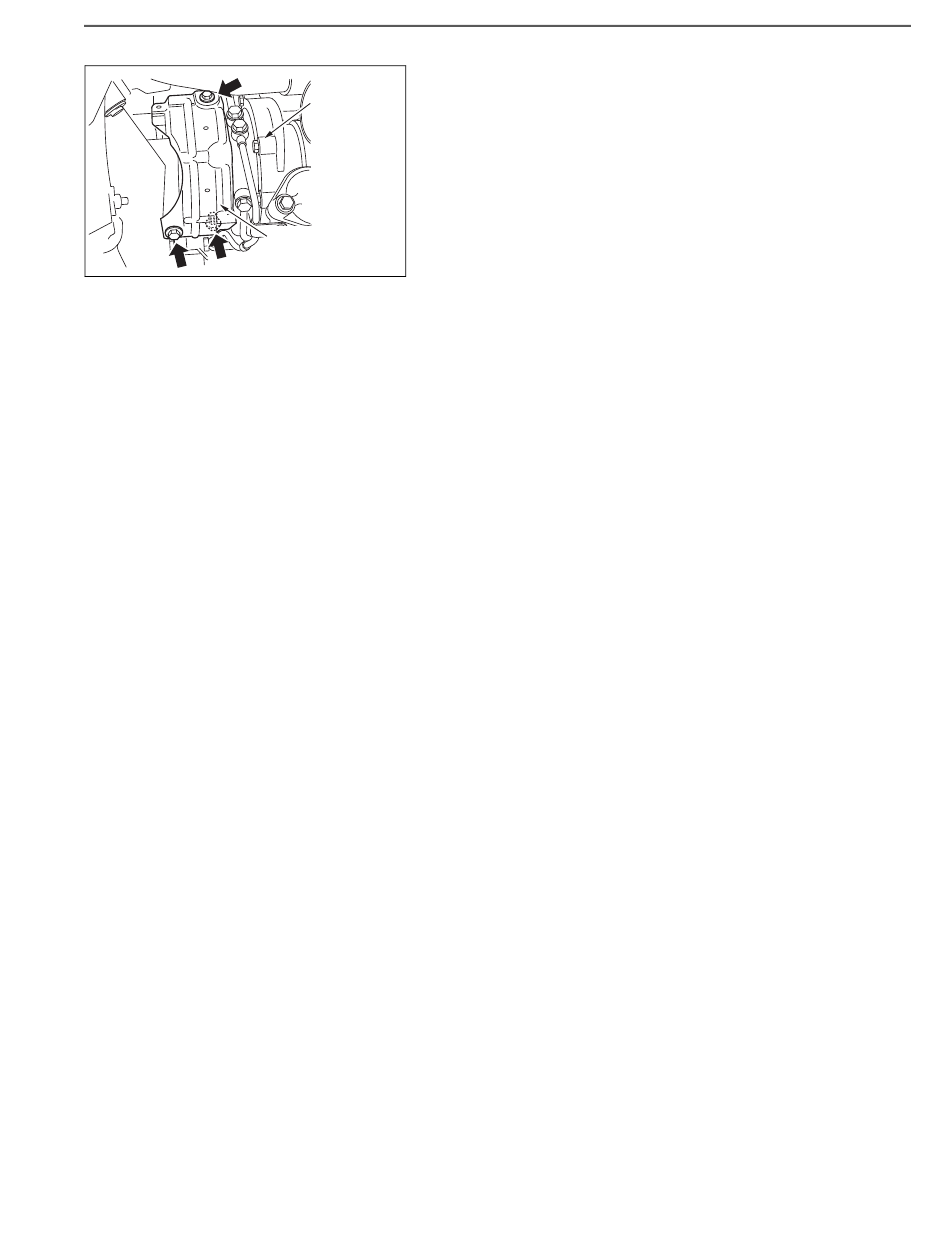

MOUNTING THE TURBOCHARGER INSULATOR
Replace with the 3 new bolts and mount the turbocharger insula-
tor to the turbocharger assembly.
CONNECTING THE HARNESS
Connect the connector to the electric actuator.
Reference: INTAKE (J05E), INTAKE PIPE (EXHAUST SIDE),
REPLACEMENT, MOUNTING THE INTAKE PIPE (EXHAUST
SIDE) (Page 9-13)
Reference: INTAKE (J05E), INTAKE PIPE (EXHAUST SIDE),
REPLACEMENT, MOUNTING THE INTAKE PIPE (EXHAUST
SIDE) (Page 9-13)
Reference: MOUNTING AND DISMOUNTING THE ENGINE
(J05E), ENGINE ASSEMBLY, REPLACEMENT, NEXT STEPS
AFTER INSTALLATION (Page 5-14)
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
MOUNTING THE RADIATOR (Page 12-9)
17–11
