Hino S5-LJ05E04A Workshop Manual page 386

10–110
PRODUCT NUMBER
STAMPING SIDE
GROOVE SIDE
STAMP NUMBER
FRONT OF ENGINE
ENGINE MECHANICAL (J05E)

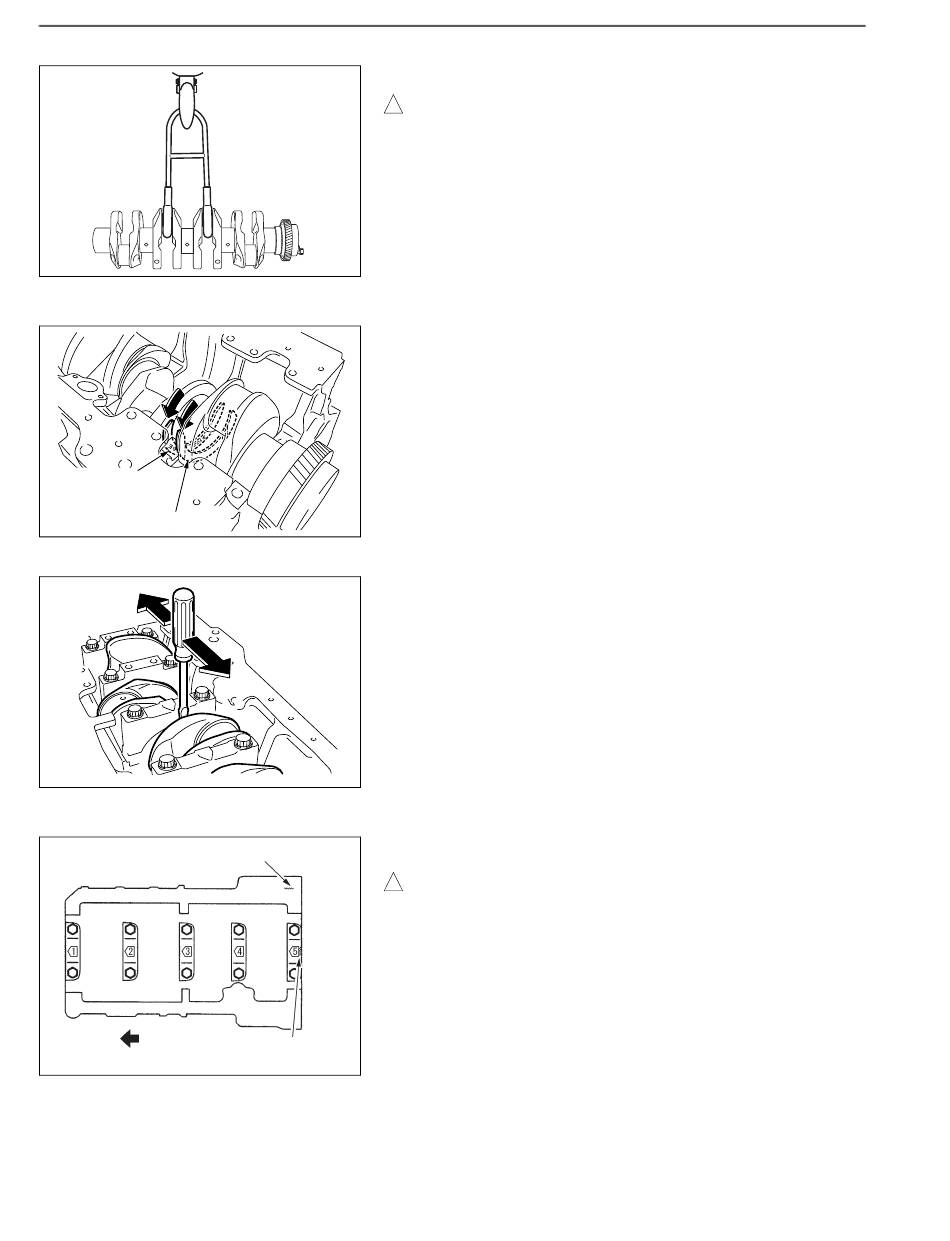

2. MOUNTING THE CRANKSHAFT
(1) Use the hoist to set the crankshaft to the cylinder block.
! CAUTION
Handle it with care because it is a heavy load.
SHTS021270900262
(2) Insert the thrust bearing on the cylinder block into the gap
between the crankshaft and cylinder block with the groove side
(front side) facing to the crank arm side and the part No. side
(back side) to the cylinder block side.
SHTS021270900263
NOTICE
To facilitate this work, use a flat-blade screwdriver or other similar
tools to keep an enough gap for inserting the thrust bearing. Dur-
ing this step, use care not to cause any scratches or damages.
SHTS021270900264
(3) Set the main bearing cap mounted with the thrust bearing and
main bearing to the cylinder block.
! CAUTION
•
Make sure that the pentagon-shaped marks indicated on the
main bearing caps face to the engine front side in the order
of 1-5 from front to back.
• Check the engraving No. on the main bearing cap against the
engraving No. on the cylinder block.
STAMP
NUMBER
SHTS021270900265
