FUEL SYSTEM (J05E)
MOUNTING THE FUEL SENDER GAUGE

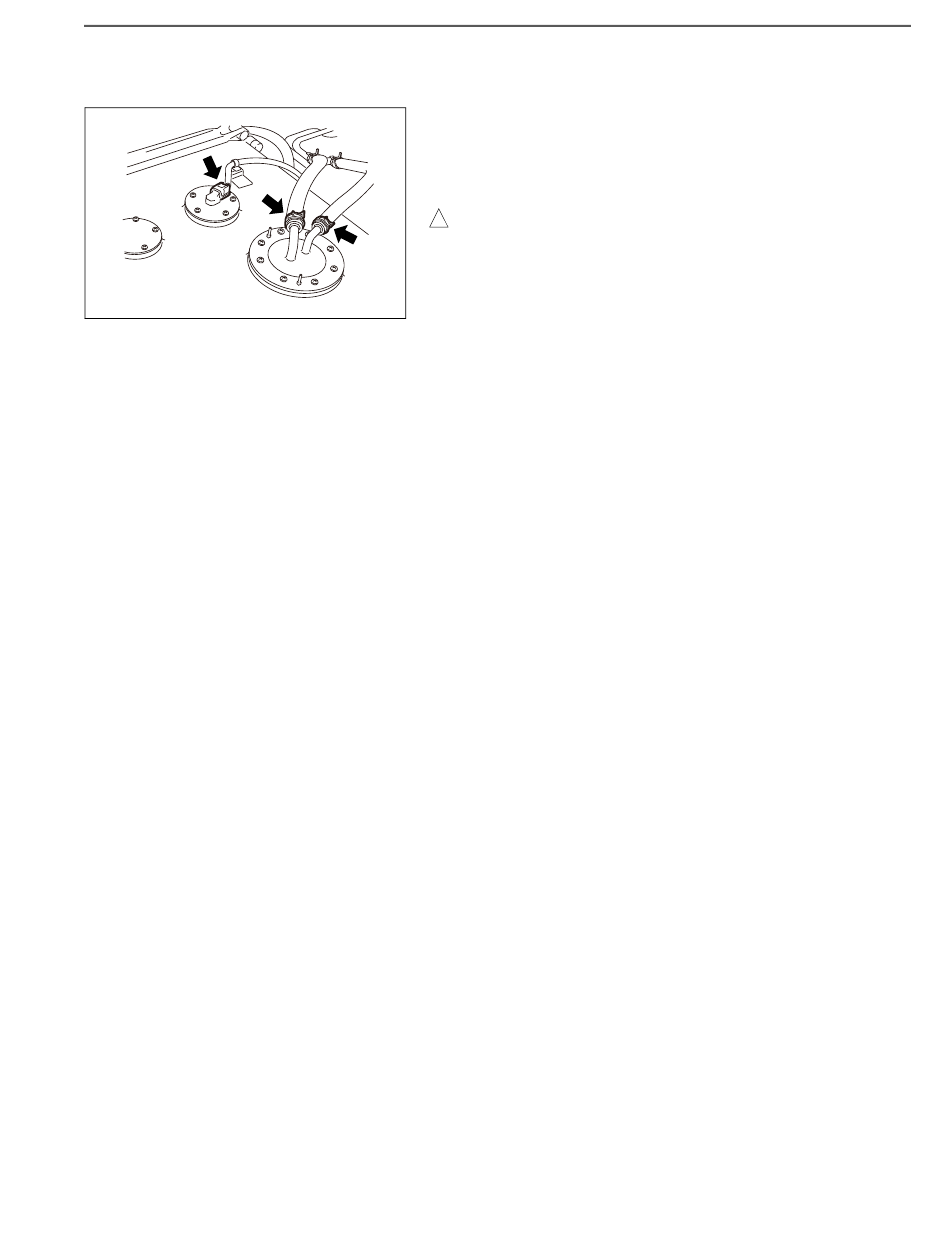

1. MOUNTING THE FUEL SENDER GAUGE
(1) Replace the gasket with a new one, and fasten the fuel sender
gauge to the fuel tank with the bolts (5 pcs.).
Tightening Torque:
1.5-2.5 N·m {16-25 kgf·cm, 1.2-1.8 lbf·ft}
! CAUTION
• Note the mounting direction to avoid interference with the
buffer plate of the tank interior wall.
•
After assembly, start the engine for testing and check for fuel
leakage from around the fuel sender gauge.
•
While working, be careful not to make dirt and water enter
SHTS021270600022
parts.
• Before mounting parts, make sure that there is no dirt on the
connection between them.
2. CONNECTING THE HARNESS
(1) Connect the connector to the fuel sender gauge.
