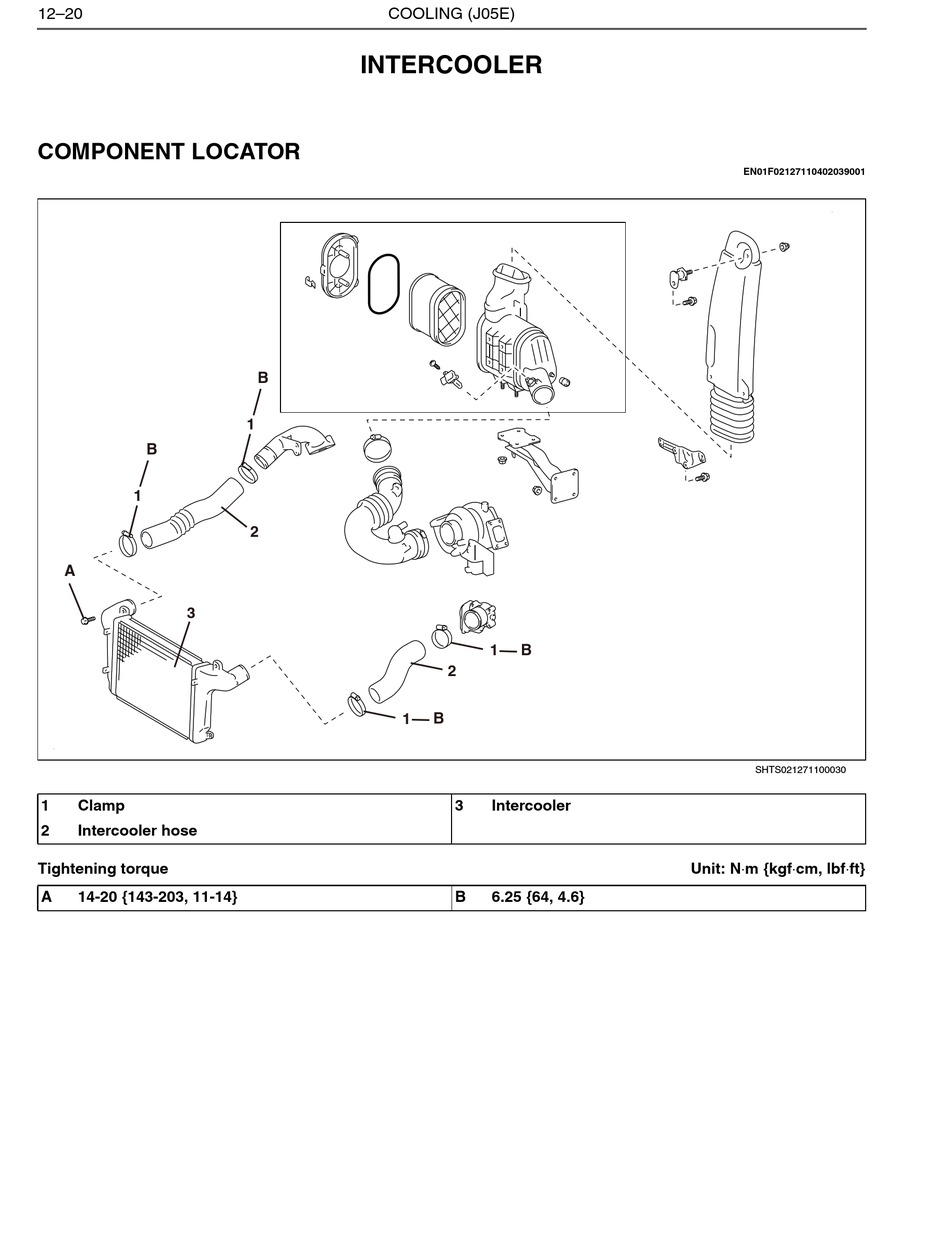

COMPONENT LOCATOR

B
1
A
3
1 Clamp
2 Intercooler hose
Tightening torque
A 14-20 {143-203, 11-14}
COOLING (J05E)

INTERCOOLER

B
1
2
1
1 B
2
B
3 Intercooler
B 6.25 {64, 4.6}
EN01F02127110402039001
SHTS021271100030
Unit: Nm {kgfcm, lbfft}
