7–64
FUEL COOLER
FUEL COOLER
FUEL SYSTEM (J05E)
MOUNTING FUEL COOLER
1. CAUTIONS
! CAUTION
•
While working, be careful not to make dirt and water enter
parts.
•
Before mounting parts, make sure that there is no dirt on the
connection between them.
• Air enters the fuel pipe in the process of mounting the pre-
fuel filter case. After mounting is completed, thoroughly
purge air from the fuel pipe.

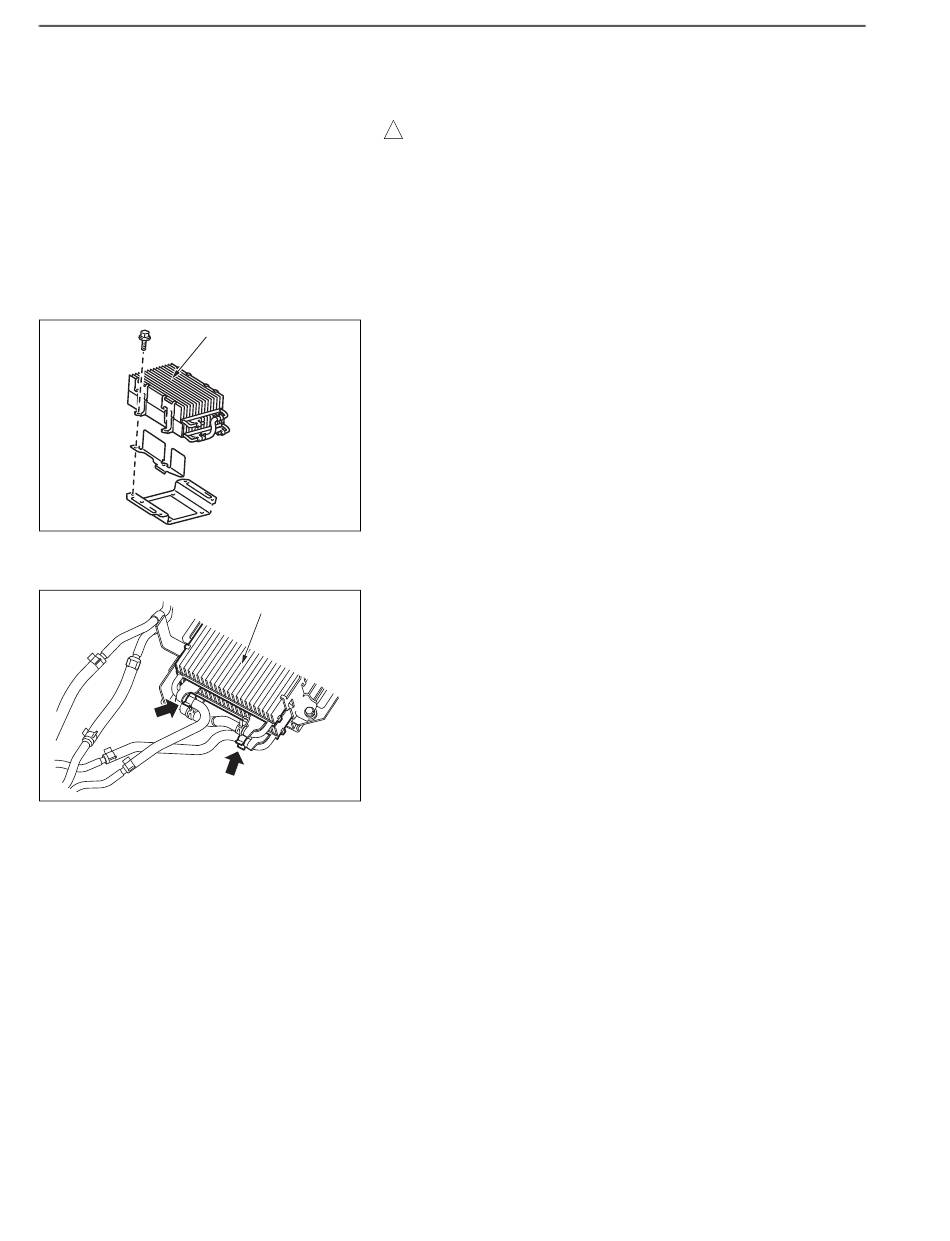

2. MOUNTING THE FUEL COOLER
(1) Mount the fuel cooler to the bracket with 4 bolts.
Tightening Torque:
25 N·m {255 kgf·cm, 18 lbf·ft}
SHTS021270600141
3. CONNECTING THE FUEL HOSE
(1) Connect the 2 fuel hoses to the fuel cooler with 2 clamps.
SHTS021270600142
