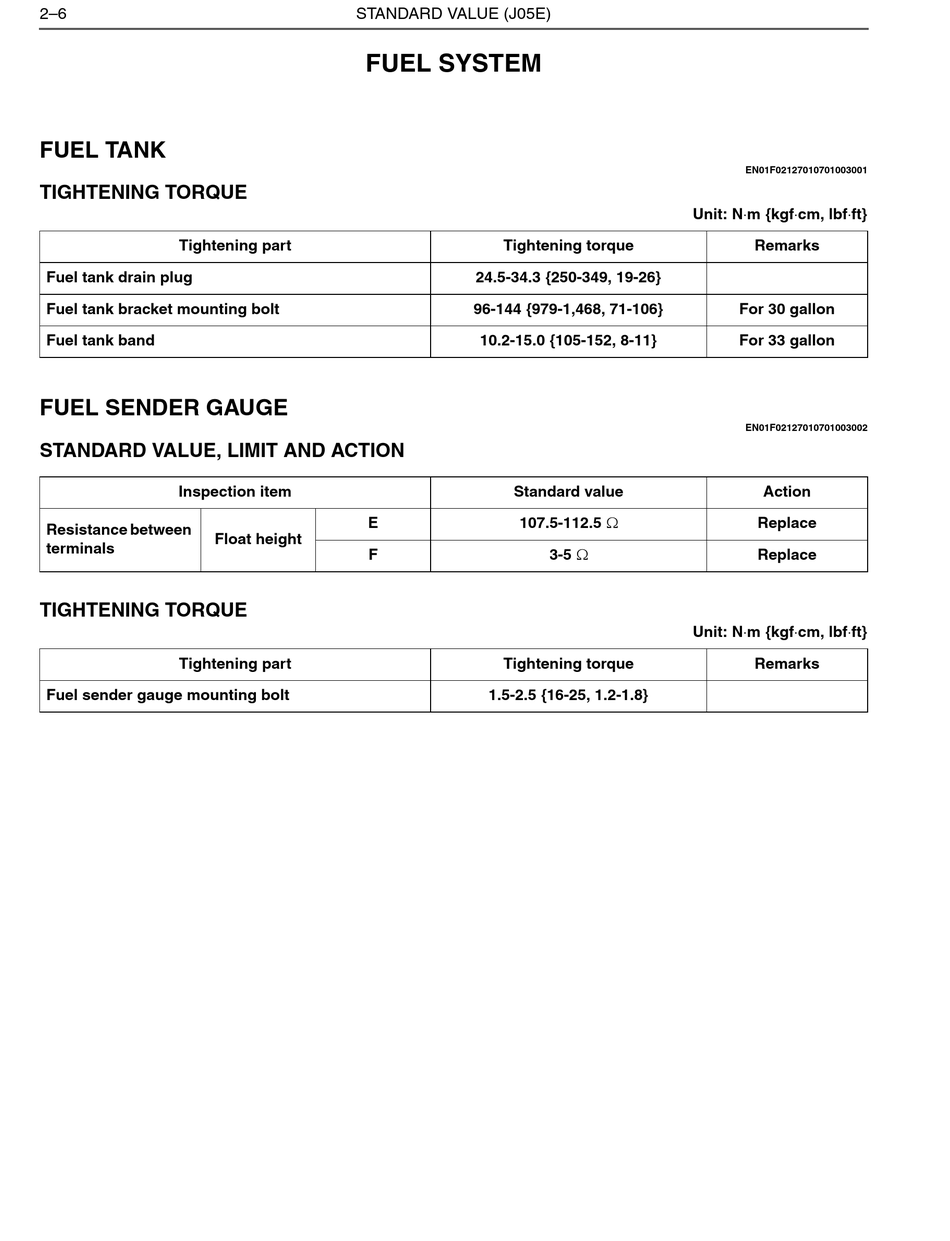

2–6

FUEL TANK

TIGHTENING TORQUE
Tightening part
Fuel tank drain plug
Fuel tank bracket mounting bolt
Fuel tank band

FUEL SENDER GAUGE

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Resistance between
Float height
terminals
TIGHTENING TORQUE
Tightening part
Fuel sender gauge mounting bolt
STANDARD VALUE (J05E)

FUEL SYSTEM

Tightening torque
24.5-34.3 {250-349, 19-26}
96-144 {979-1,468, 71-106}
10.2-15.0 {105-152, 8-11}
Standard value
107.5-112.5 
E
F
Tightening torque
1.5-2.5 {16-25, 1.2-1.8}
Unit: Nm {kgfcm, lbfft}
3-5 
Unit: Nm {kgfcm, lbfft}
EN01F02127010701003001
Remarks
For 30 gallon
For 33 gallon
EN01F02127010701003002
Action
Replace
Replace
Remarks
