86 POLE CONNECTOR
53 POLE CONNECTOR
SLIDE
EXHAUST (J05E)
5.
(1)
DCU
DCU BRACKET
SHTS021271000163

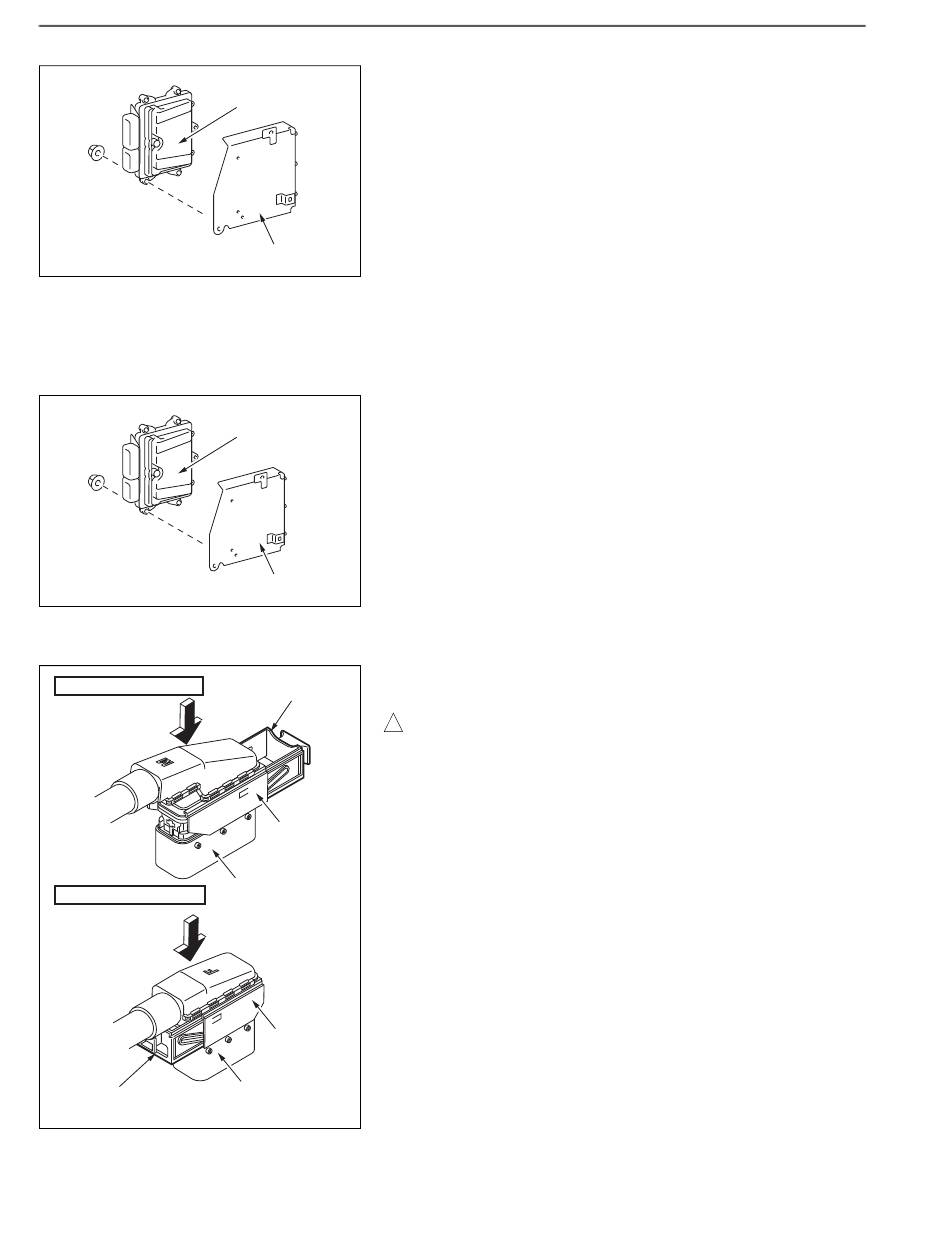

MOUNTING THE DCU
1.
(1)
DCU
DCU BRACKET
SHTS021271000164
2.
(1)
SLIDE
! CAUTION
At this time, check that the slide is fully open.
(2)
HARNESS
SIDE
CONNECTOR
DCU SIDE
CONNECTOR
HARNESS
SIDE
CONNECTOR
DCU SIDE
CONNECTOR
SHTS021271000165
REMOVING THE DCU
Unfasten the nuts (4 pcs.) and remove the DCU from the DCU
bracket.
MOUNTING THE DCU
Mount the DCU to the DCU bracket with 4 nuts.
Tightening Torque:
10 N·m {102 kgf·cm, 7.4 lbf·ft}
CONNECTING THE DCU CONNECTOR
Check that the harness side connector slide is fully open and
place it straight on the DCU side connector.
Press the upper part of the harness side connector and insert the
connector uniformly.
