ENGINE MECHANICAL (J05E)

REPLACEMENT

REMOVING THE CRANKSHAFT FRONT OIL SEAL
1.
2.
(1)
SHTS021270900106
NOTICE
SST kit
PLATE
HOOK x 2
SHTS021270900107
(2)
PLATE
(3)
HOOK
SHTS021270900108
REMOVING THE CRANKSHAFT PULLEY
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT
PULLEY, REPLACEMENT, REMOVING THE CRANKSHAFT
PULLEY (Page 10-47)
REMOVING THE CRANKSHAFT FRONT OIL SEAL

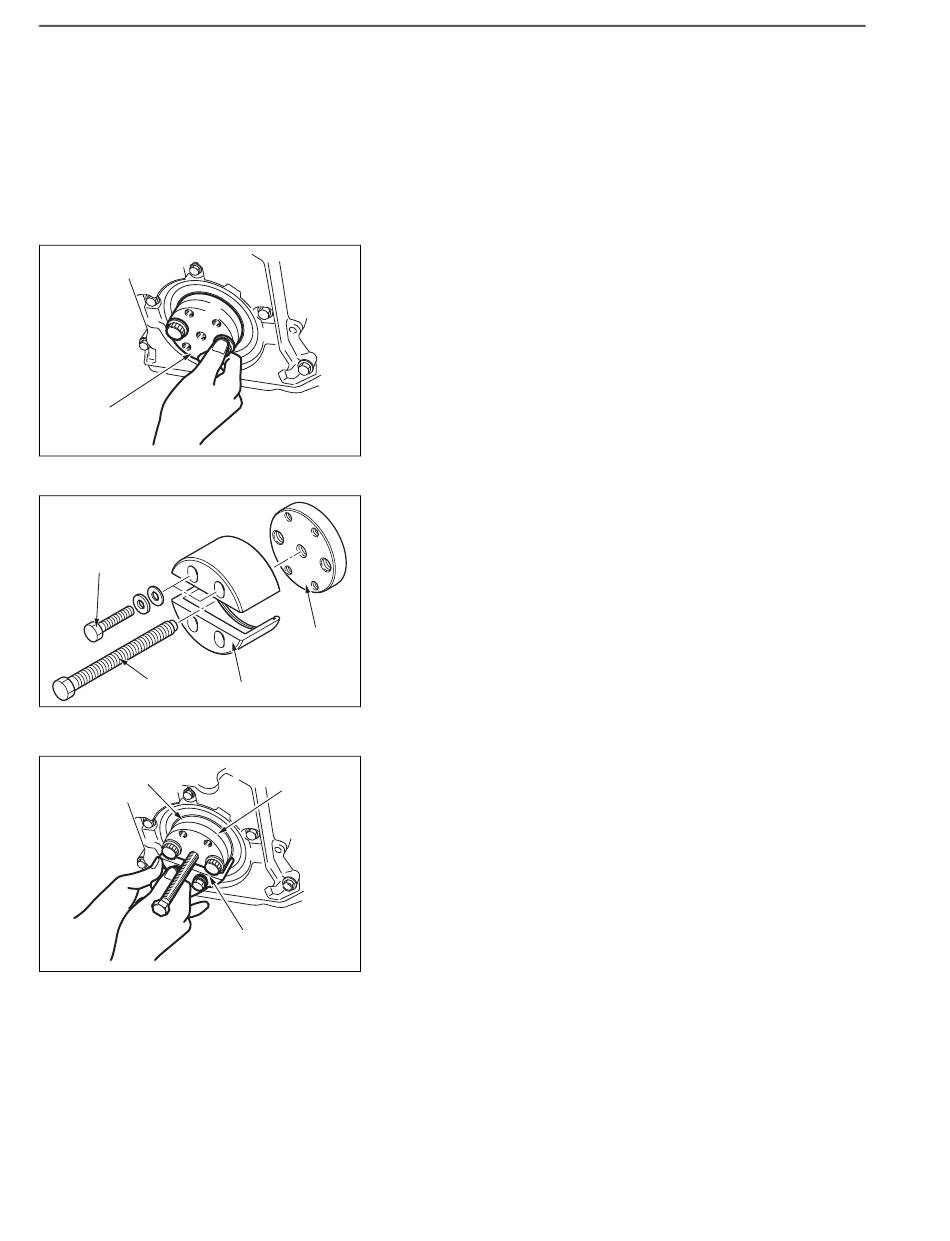

Mount the SST plate to the crankshaft with 2 crankshaft pulley
mounting bolts.
SST: S0942-01731
Oil seal puller
Hook the SST hooks (2 pcs.) on the chuck of the crankshaft front
oil seal and fasten SST bolts to secure the hooks onto the SST
plate.
From the crankshaft, remove 2 crankshaft pulley mounting bolts
securing the SST plate.
