Inspection; Replacement - Hino S5-LJ05E04A Workshop Manual

9–30
CONNECTOR
HOSE
INTAKE (J05E)

INSPECTION

1.
(1)

REPLACEMENT

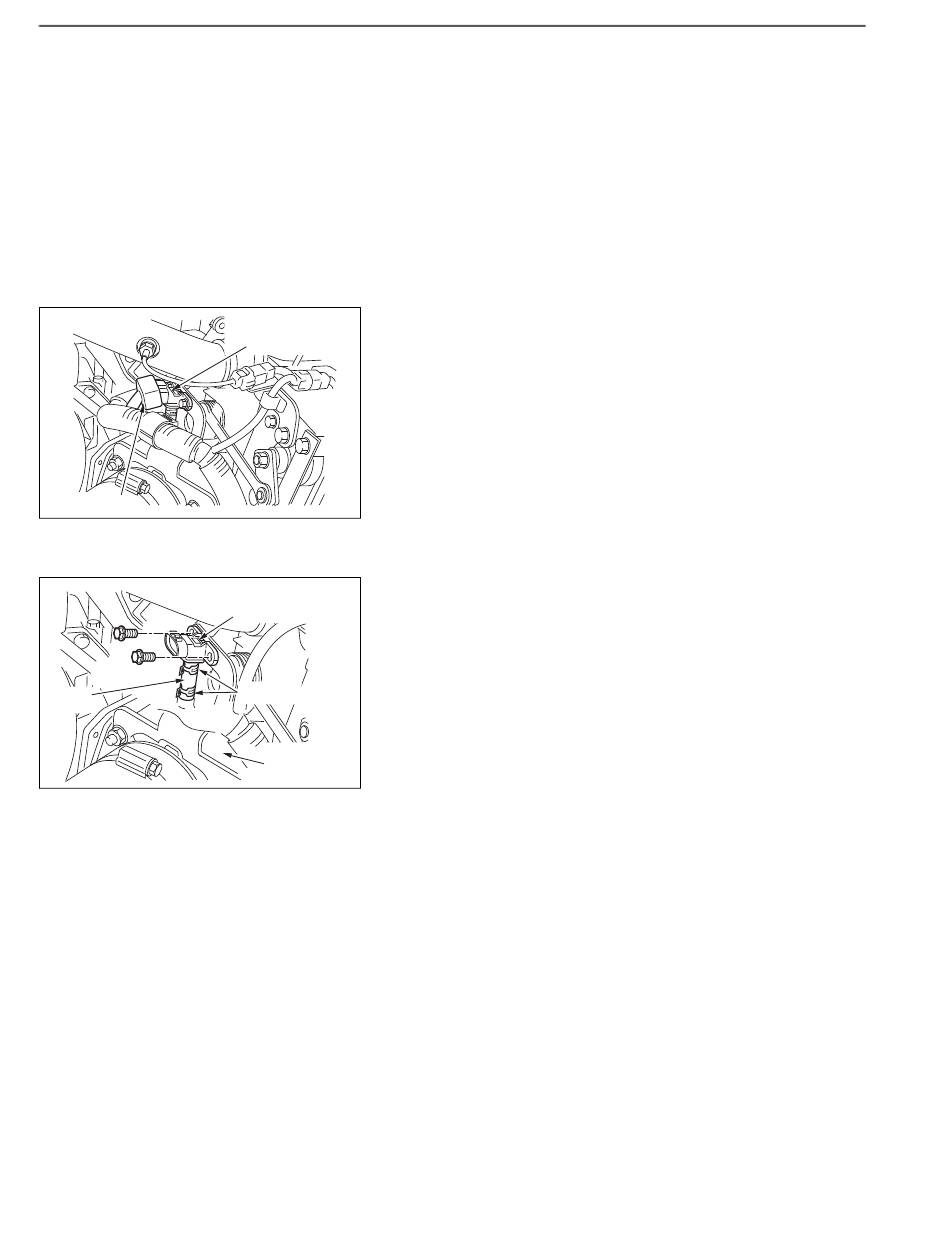

REMOVING THE BOOST PRESSURE SENSOR
1.
(1)
BOOST PRESSURE
SENSOR
SHTS021270800044
2.
(1)
BOOST PRESSURE
SENSOR
(2)
CLAMP
INTAKE
MANIFOLD
SHTS021270800045
INSPECTING THE BOOST PRESSURE SENSOR
Using the HINO-DX, inspect the boost pressure sensor.
(See the HINO-DX manual.)
DISCONNECTING THE HARNESS
Disconnect the connector connected to the boost pressure sen-
sor.
REMOVING THE BOOST PRESSURE SENSOR
Unfasten the 2 bolts to remove the boost pressure sensor from
the intake manifold.
Unfasten the clamps (2 pcs.) securing the hose, and remove the
hose from the boost pressure sensor.
EN01F02114080402021002
EN01F02114080402021003
