OIL STRAINER
SHTS021271200058
OIL STRAINER
SHTS021271200059
LUBRICATION (J05E)

REPLACEMENT

REMOVING THE OIL STRAINER
1. REMOVING THE OIL PAN
(1) Remove the oil pan from the cylinder block.
Reference: LUBRICATION (J05E), OIL PAN, REPLACEMENT,
REMOVING THE OIL PAN (Page 13-24)

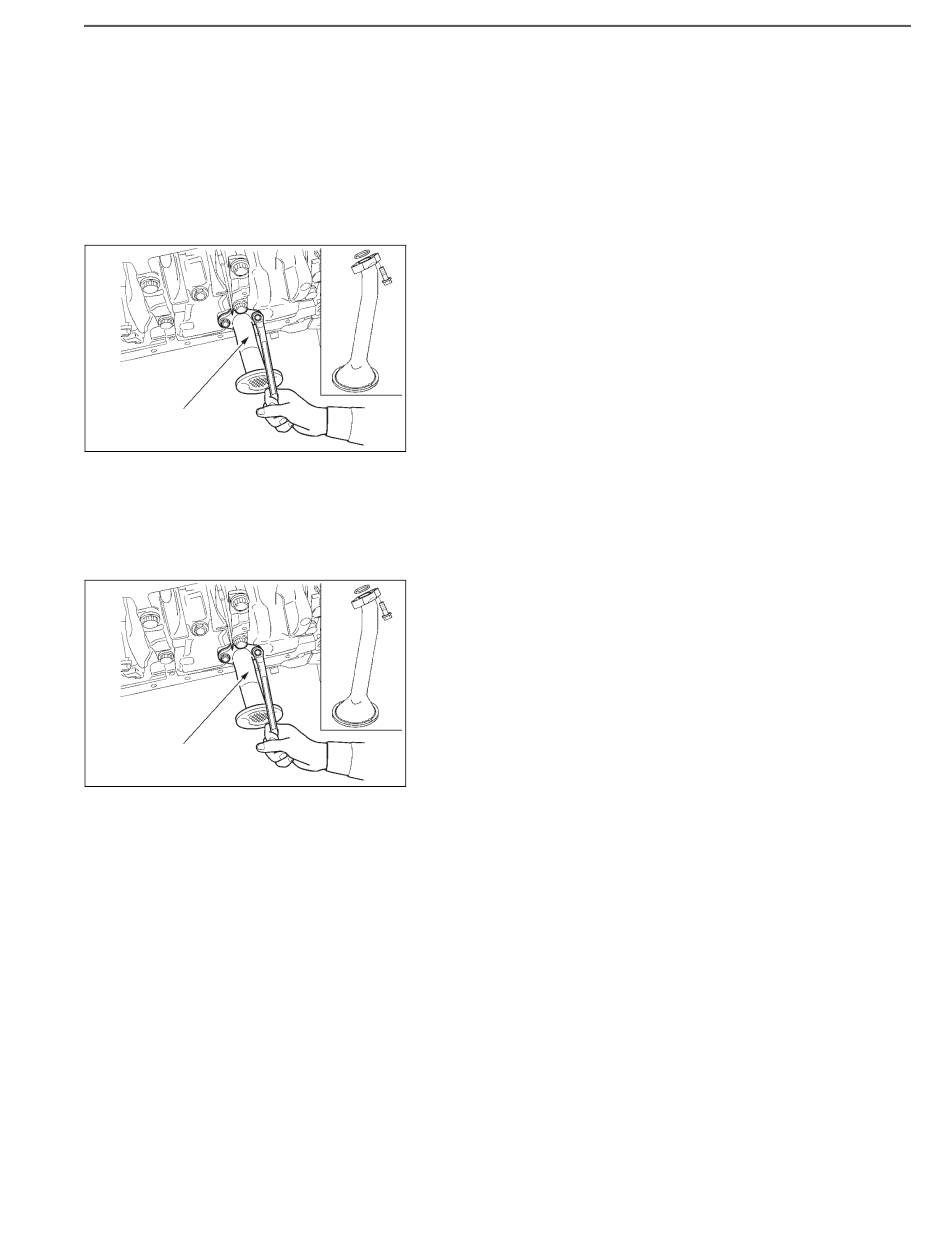

2. REMOVING THE OIL STRAINER
(1) Unfasten the 2 bolts to remove the oil strainer and O-ring from the
cylinder block.
NOTICE
Prepare the reservoir and clean clothes to collect dripping engine
oil when removing the oil strainer.
MOUNTING THE OIL STRAINER
1. MOUNTING THE OIL STRAINER
(1) Replace with the new O-ring and mount the oil strainer to the cyl-
inder block with bolts (2 pcs.).
Tightening Torque:
30 N·m {306 kgf·cm, 22 lbf·ft}
2. MOUNTING THE OIL PAN
(1) Mount the oil pan to the cylinder block.
Reference: LUBRICATION (J05E), OIL PAN, REPLACEMENT,
MOUNTING THE OIL PAN (Page 13-25)
