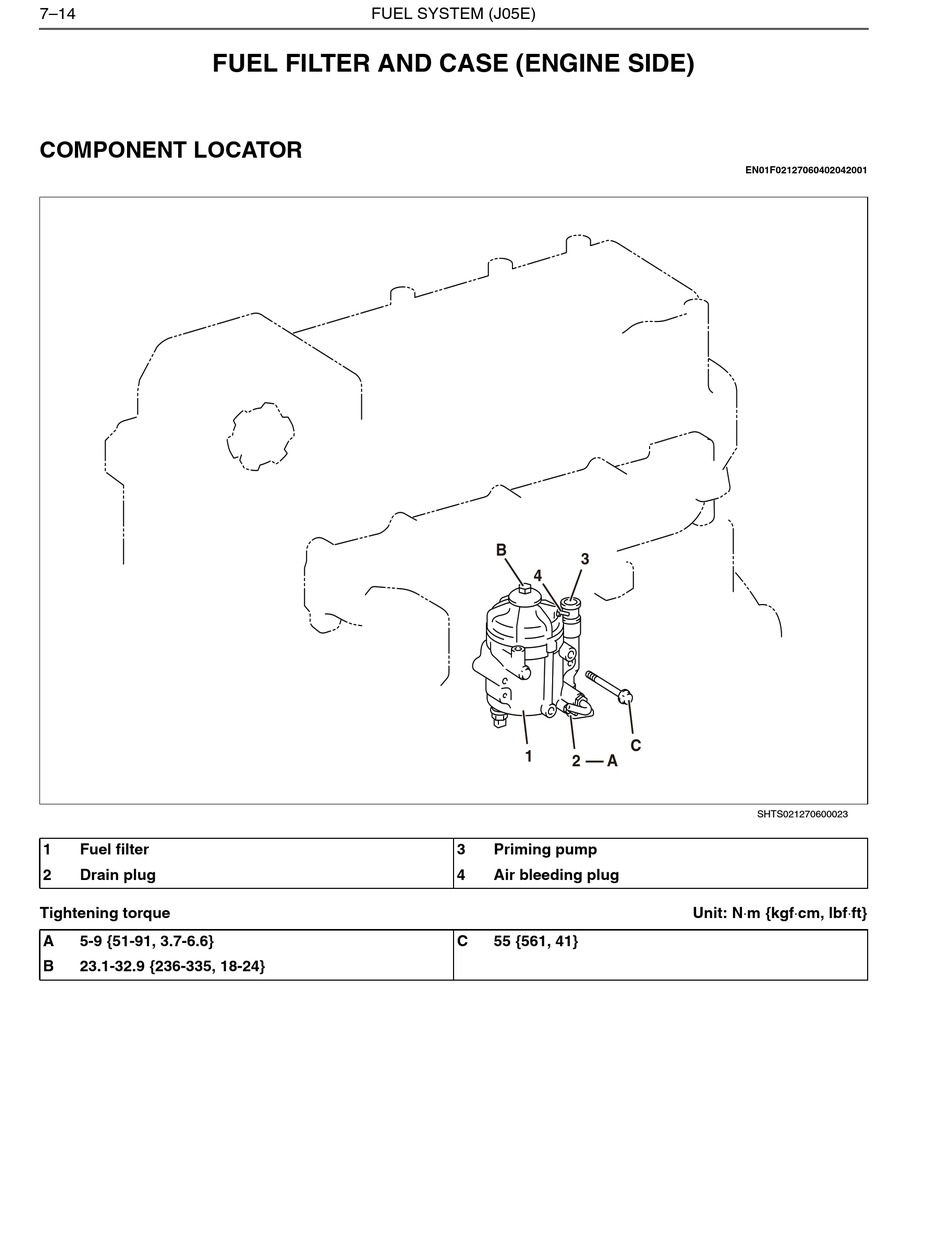

FUEL FILTER AND CASE (ENGINE SIDE)

COMPONENT LOCATOR

1 Fuel filter
2 Drain plug
Tightening torque
A 5-9 {51-91, 3.7-6.6}
B 23.1-32.9 {236-335, 18-24}
FUEL SYSTEM (J05E)
B
4
1
3 Priming pump
4 Air bleeding plug
C 55 {561, 41}
EN01F02127060402042001
3
C
2 A
Unit: Nm {kgfcm, lbfft}
