11–116
SCR UPSTREAM
TEMPERATURE
SENSOR
SCR UPSTREAM
TEMPERATURE
SENSOR
MUFFLER
CHRISTMAS TREE
EXHAUST (J05E)

REPLACEMENT

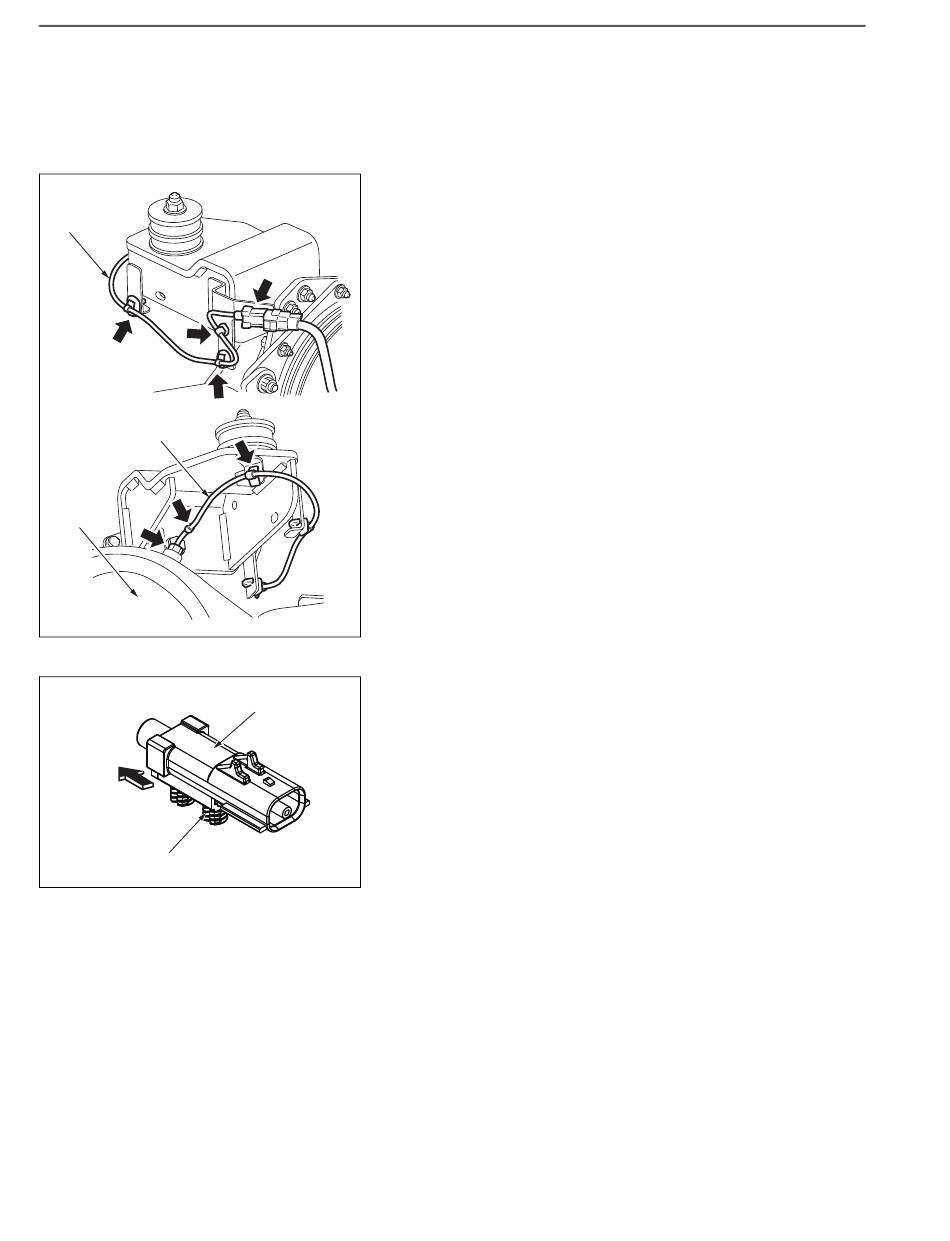

REMOVING THE SCR UPSTREAM TEMPERATURE
SENSOR
1.
DISCONNECTING THE HARNESS
(1)
Disconnect the connector connected to the SCR upstream tem-
perature sensor.
2.
REMOVING THE SCR UPSTREAM TEMPERATURE SENSOR
(1)
Remove the SCR upstream temperature sensor together with the
harness clamp from the muffler.
SHTS021271000202
(2)
Remove the Christmas tree from the connector of the SCR
upstream temperature sensor.
CONNECTOR
SHTS021271000203
EN01F02127100402028002
