FRONT OIL SEAL RETAINER
FRONT
OIL SEAL
RETAINER
ENGINE MECHANICAL (J05E)
MOUNTING THE FRONT OIL SEAL RETAINER

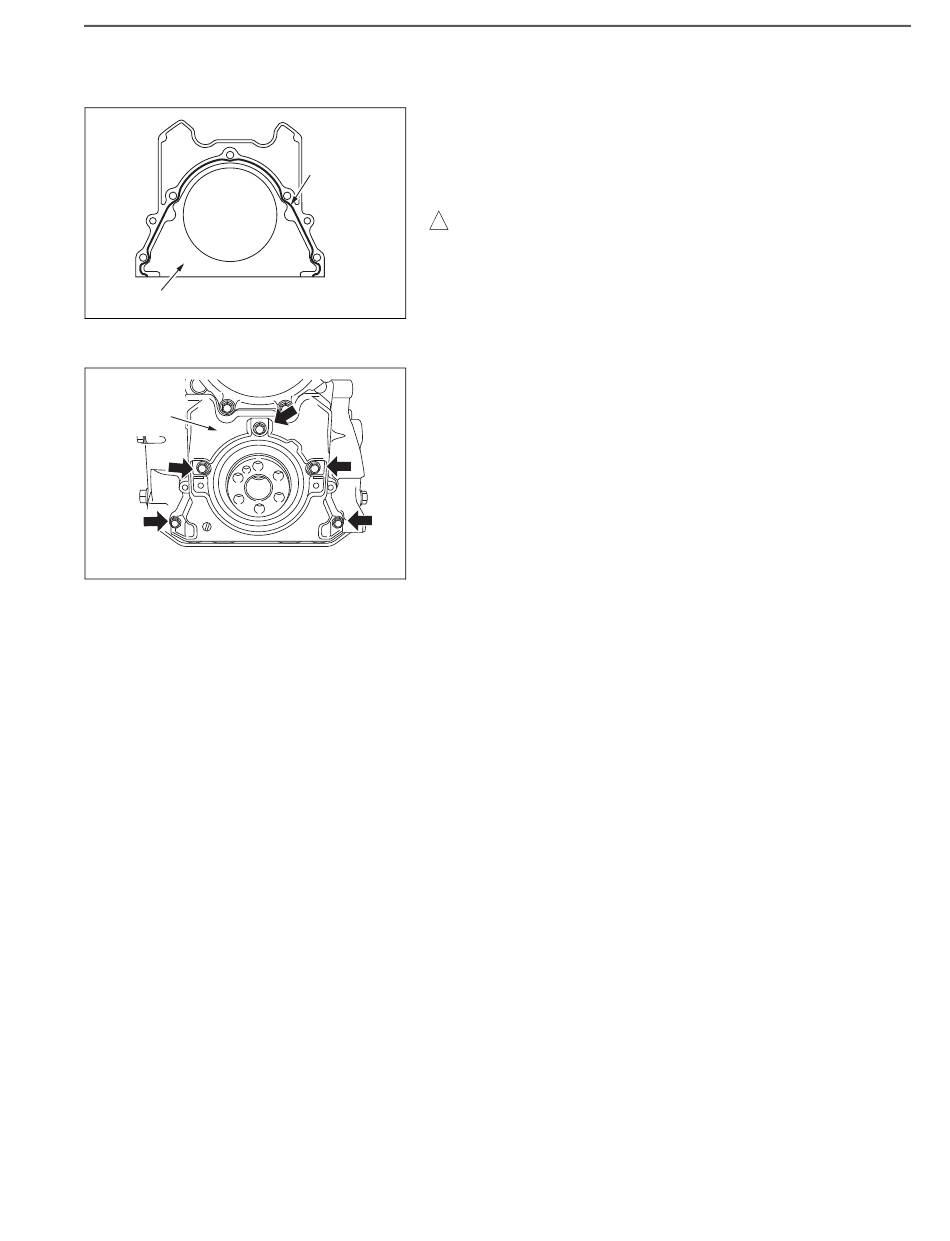

1. MOUNTING THE FRONT OIL SEAL RETAINER
(1) Remove oil and dirt from the joint surface of the front oil seal
retainer.
APPLY LIQUID
GASKET TO
(2) Apply liquid gasket (ThreeBond TB1207B: Black or equivalent or
THE GROOVE.
ThreeBond TB1217G: Gray or equivalent) to the front oil seal
retainer groove.
! CAUTION
• Apply the liquid gasket seamlessly.
•
Apply the liquid gasket with a 1.5 mm {0.0591 in.} width.
•
Mount the case within 20 minutes after applying the liquid
gasket.
SHTS021270900117
(3) Mount the front oil seal retainer to the cylinder block with 5 bolts.
Tightening Torque:
30 N·m {306 kgf·cm, 22 lbf·ft}
SHTS021270900118
2. MOUNTING THE CRANKSHAFT FRONT OIL SEAL
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT
FRONT OIL SEAL, REPLACEMENT, MOUNTING THE CRANK-
SHAFT FRONT OIL SEAL (Page 10-51)
3. MOUNTING THE CRANKSHAFT PULLEY
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT
PULLEY, REPLACEMENT, MOUNTING THE CRANKSHAFT
PULLEY (Page 10-48)
4. MOUNTING THE OIL PAN
Reference: LUBRICATION (J05E), OIL PAN, REPLACEMENT,
MOUNTING THE OIL PAN (Page 13-25)
5. FEEDING ENGINE OIL
Reference: MOUNTING AND DISMOUNTING THE ENGINE
(J05E), ENGINE ASSEMBLY, REPLACEMENT, MOUNTING
THE ENGINE ASSEMBLY (Page 5-11)
10–55
