PIPE No.3
INTAKE (J05E)

REPLACEMENT

REMOVING THE INTAKE MANIFOLD
1. DISCONNECTING THE HARNESS
(1) Remove the connector and clip and disconnect the engine har-
ness around the intake manifold.
2. REMOVING THE EGR PIPE
Reference: EMISSION CONTROL (J05E), EGR VALVE &
COOLER, REPLACEMENT, REMOVING THE EGR VALVE &
COOLER (Page 8-3)
3. REMOVING THE CLOSED VENTILATOR
Reference: EMISSION CONTROL (J05E), CLOSED VENTILA-
TOR, REPLACEMENT, REMOVING THE CLOSED VENTILA-
TOR (Page 8-14)
4. REMOVING THE FUEL FILTER CASE
Reference: FUEL SYSTEM (J05E), FUEL FILTER AND CASE
(ENGINE SIDE), REPLACEMENT, REMOVING THE FUEL FIL-
TER (Page 7-19)

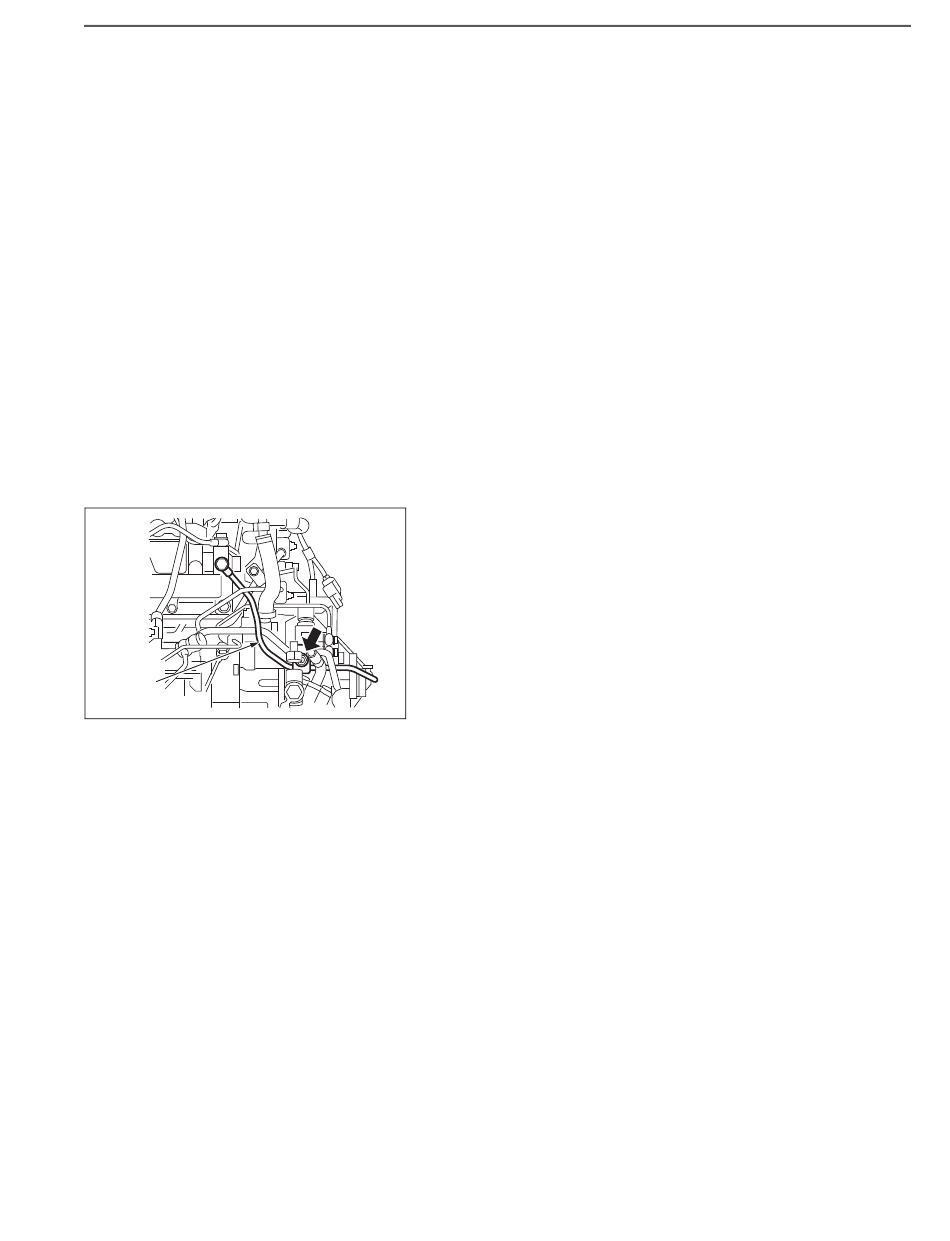

5. DISCONNECTING THE RETURN PIPE No.3
(1) Remove the nut and then the clip.
(2) Unfasten the bolts and gasket to remove the return pipe No.3 from
the pressure limiter.
SHTS021270800002
9–3
