EXHAUST SIDE
"A", "B", "C"
MARK
POSITION
INTAKE SIDE
SHTS021270900276
CYLINDER
LINER
"A", "B", "C"
MARK
POSITION
SHTS021270900277
SST
SHTS021270900278
CYLINDER LINER
PROTRUSION
CYLINDER BLOCK
SHTS021270900279
ENGINE MECHANICAL (J05E)
NOTICE

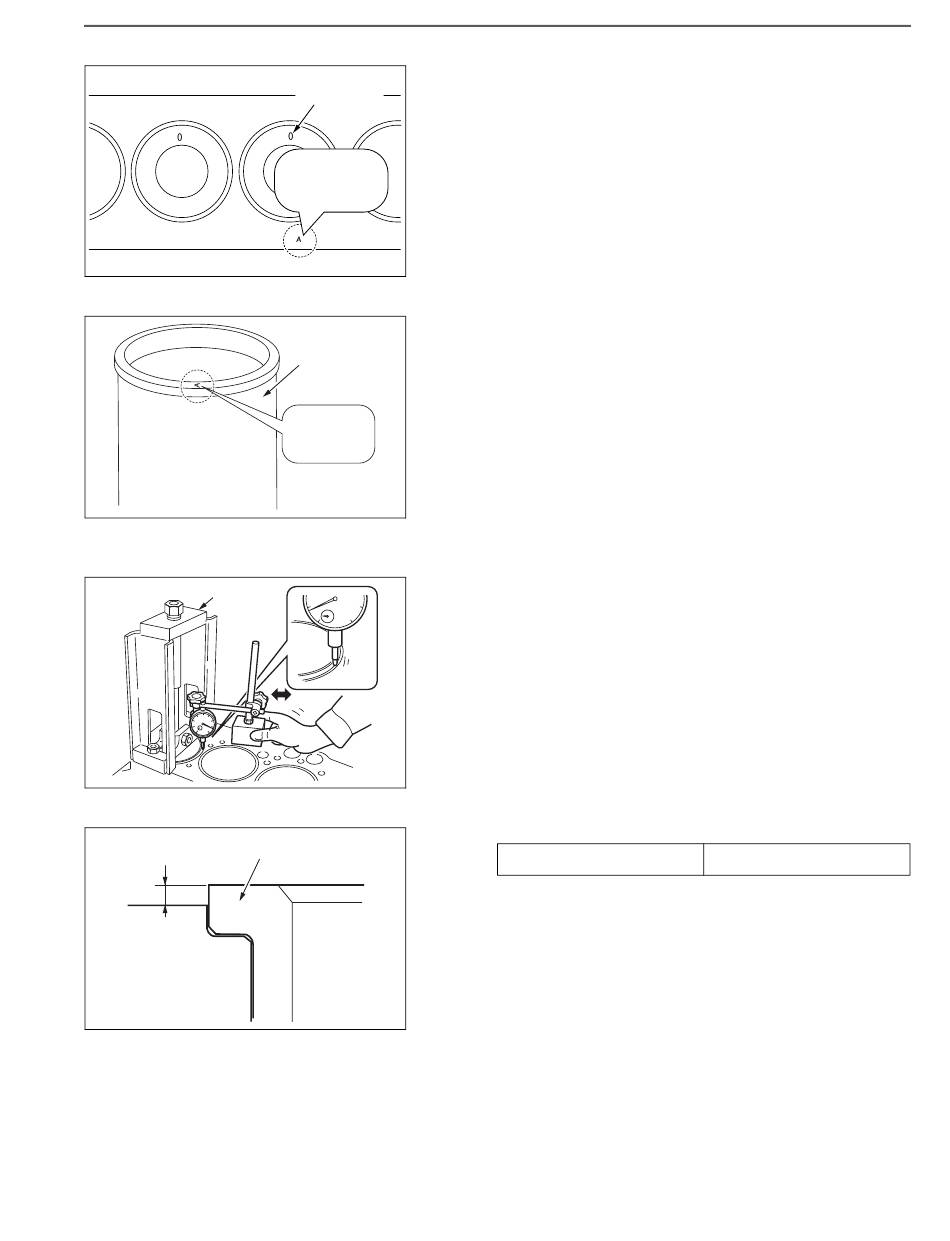

• The liner identification mark (A, B or C) is also engraved on
"0" MARK
POSITION
the upper surface of the cylinder block intake side.
•
Mount the cylinder liner with the liner identification mark (A,
B or C) facing to the intake side.
2. INSPECTING THE CYLINDER LINER COLLAR PROJECTION
(1) Use the SST to fix the cylinder liner.
Tightening Torque:
9.8 N·m {100 kgf·cm, 7 lbf·ft}
SST:
(2) Use the dial gauge to measure the collar projection.
3. MOUNTING THE PISTON AND CONNECTING ROD
Reference: ENGINE MECHANICAL (J05E), PISTON AND CON-
NECTING ROD, OVERHAUL, MOUNTING THE PISTON AND
CONNECTING ROD (Page 10-98)
4. MOUNTING THE CYLINDER HEAD ASSEMBLY
Reference: ENGINE MECHANICAL (J05E), CYLINDER HEAD
ASSEMBLY, REPLACEMENT, MOUNTING THE CYLINDER
HEAD ASSEMBLY (Page 10-25)
S0942-02100
Cylinder liner puller
Standard value (mm {in.})
10–115
0.01-0.08 {0.0004-0.0032}
