Replacement - Hino S5-LJ05E04A Workshop Manual

9–28
CONNECTOR
CLIP
CONNECTOR
CLIP
INTAKE (J05E)

REPLACEMENT

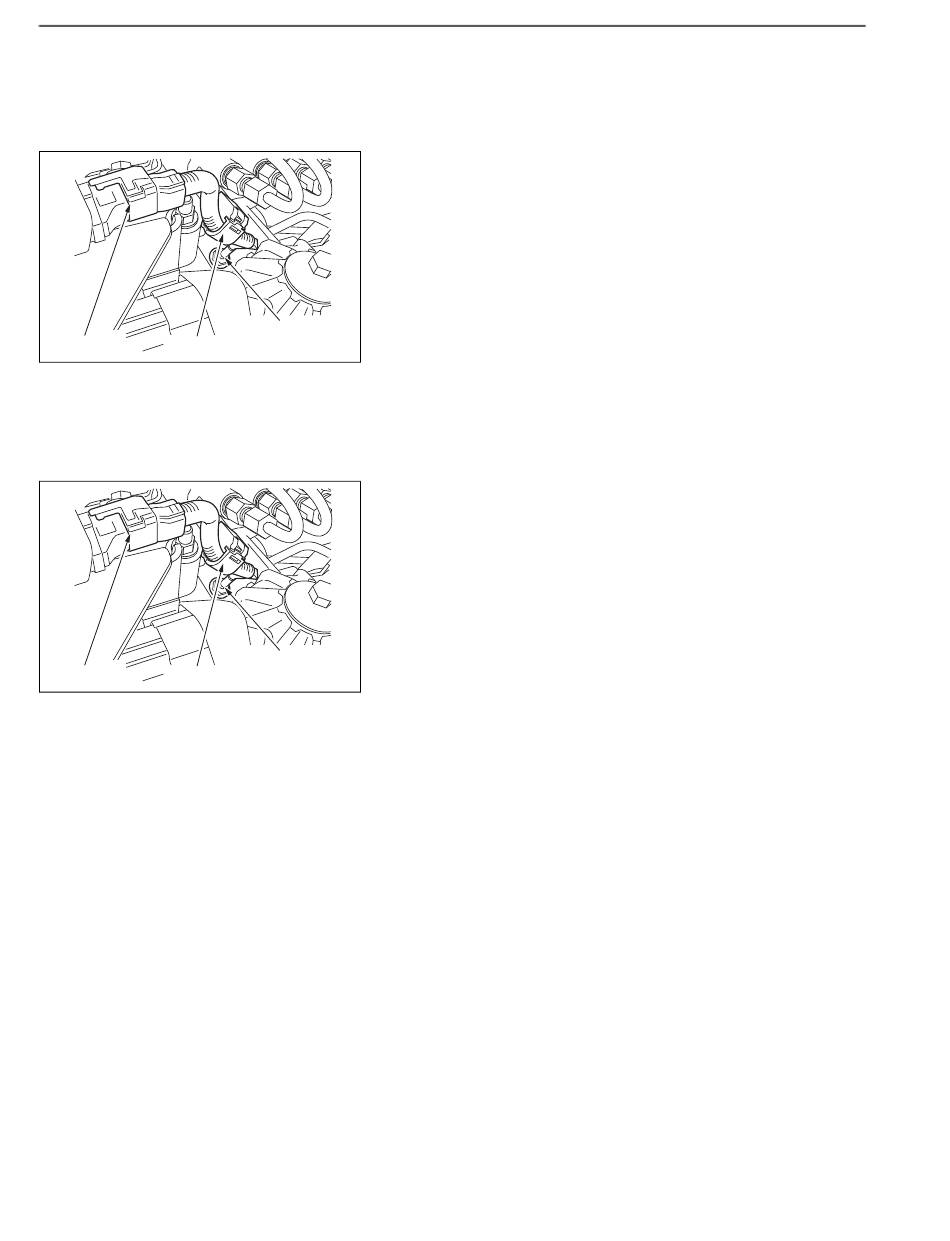

REMOVING THE INTAKE TEMPERATURE SENSOR
1. DISCONNECTING THE HARNESS
(1) Disconnect the connector connected to the intake temperature
sensor.
(2) Remove the clip from the bracket.
2. REMOVING THE INTAKE TEMPERATURE SENSOR
(1) Remove the intake temperature sensor and washer from the
intake manifold and intercooler.
INTAKE
TEMPERATURE
SHTS021270800041
MOUNTING THE INTAKE TEMPERATURE SENSOR
1. MOUNTING THE INTAKE TEMPERATURE SENSOR
(1) Replace with a new washer and attach the intake temperature
sensor to the intake manifold and intercooler.
Tightening Torque:
2. CONNECTING THE HARNESS
(1) Mount the clip to the bracket.
(2) Connect the connector to the intake temperature sensor.
INTAKE
TEMPERATURE
SHTS021270800042
19.6 N·m {200 kgf·cm, 14 lbf·ft}
