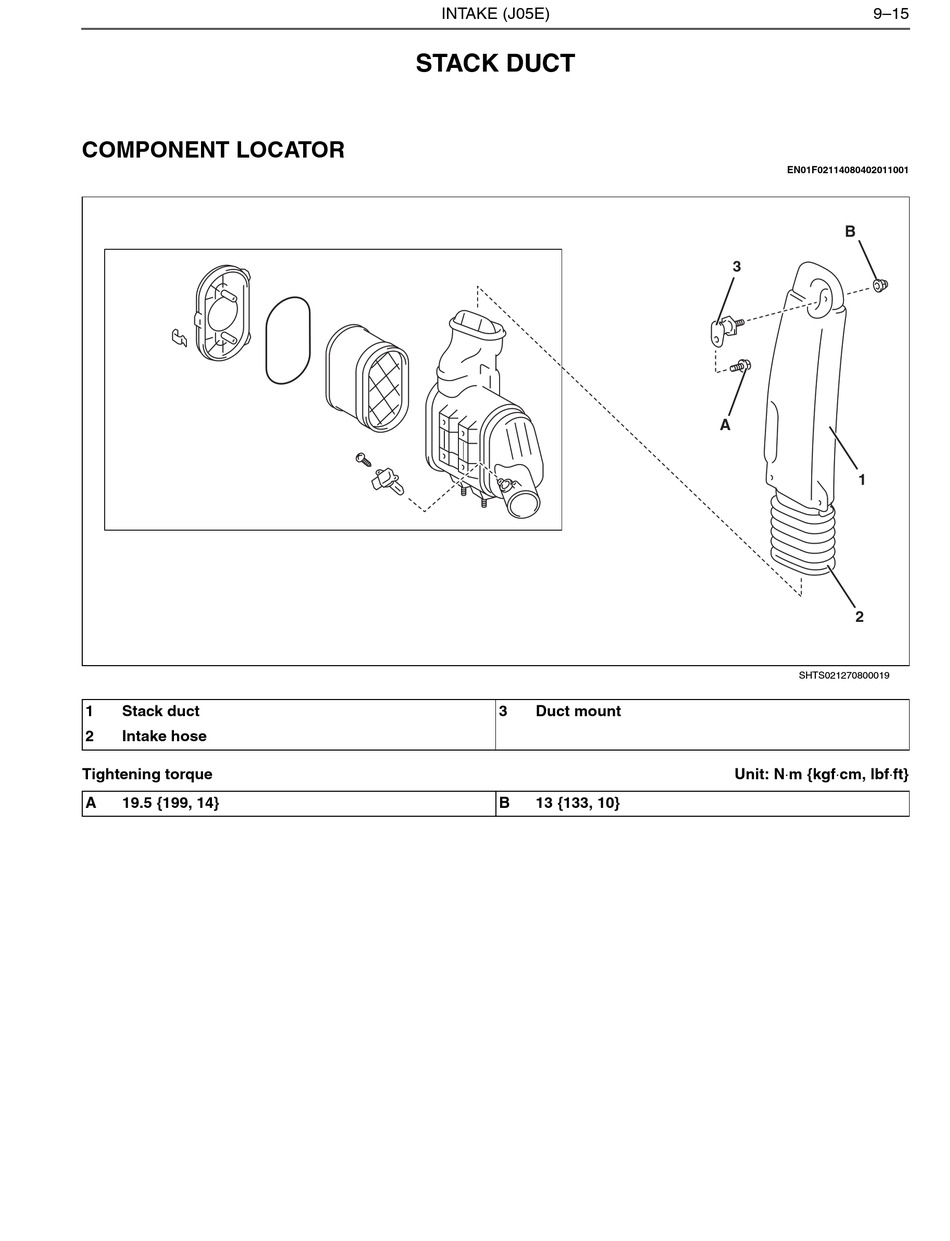

COMPONENT LOCATOR

1

Stack duct

2 Intake hose
Tightening torque
A 19.5 {199, 14}
INTAKE (J05E)
STACK DUCT
3 Duct mount
B 13 {133, 10}
9–15
EN01F02114080402011001
B
3
A
1
2
SHTS021270800019
Unit: Nm {kgfcm, lbfft}
