Hino S5-LJ05E04A Workshop Manual page 629

16–20
REAR FRAME
STARTING/CHARGING (J05E)
7. ASSEMBLING THE RECTIFIER
(1) Using the 4 screws, install the rectifier.
Tightening Torque:
2.9-4.9 N·m {30-50 kgf·cm, 2.1-3.6 lbf·ft}
(2) Using the screw, install the rectifier's (-) terminal.
Tightening Torque:
2.9-4.9 N·m {30-50 kgf·cm, 2.1-3.6 lbf·ft}
(3) Tighten the B terminal nut (inside).
Tightening Torque:
7.8-10.8 N·m {80-110 kgf·cm, 5.8-7.9 lbf·ft}
8. ASSEMBLING THE REGULATOR
(1) Using the 2 screws, install the rectifier.
Tightening Torque:
2.9-4.9 N·m {30-50 kgf·cm, 2.1-3.6 lbf·ft}
(2) Using the 3 screws, install the rectifier and the field coil outlet ter-
minal to the regulator.
Tightening Torque:
1.6-2.0 N·m {16-20 kgf·cm, 1.2-1.4 lbf·ft}

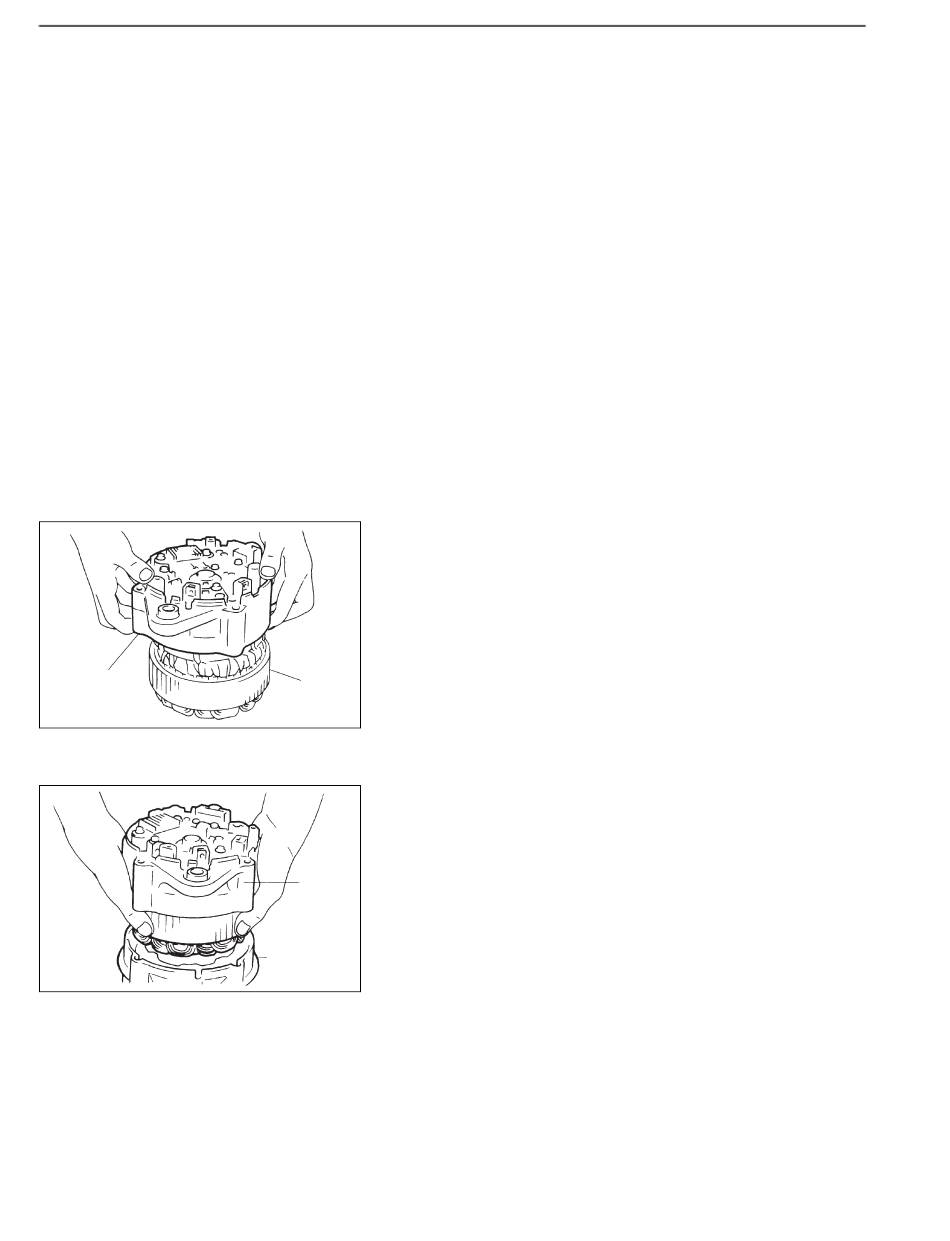

9. INSTALLING THE STATOR AND THE REAR FRAME
(1) Slow the insert the stator while maintaining it perpendicular to the
rear frame.
STATOR
SHTS021271500056
10. ASSEMBLING THE DRIVE AND REAR FRAME
(1) Apply the thin coat of NSK EA5 grease on the rear bearing portion
of the rotor shaft.
(2) Slowly insert the rear frame while maintaining it perpendicular to
rotor shaft.
NOTICE
REAR
To prevent damage to the rear bearing, do not apply excessive
FRAME
force during the insertion.
DRIVE
FRAME
SHTS021271500057
