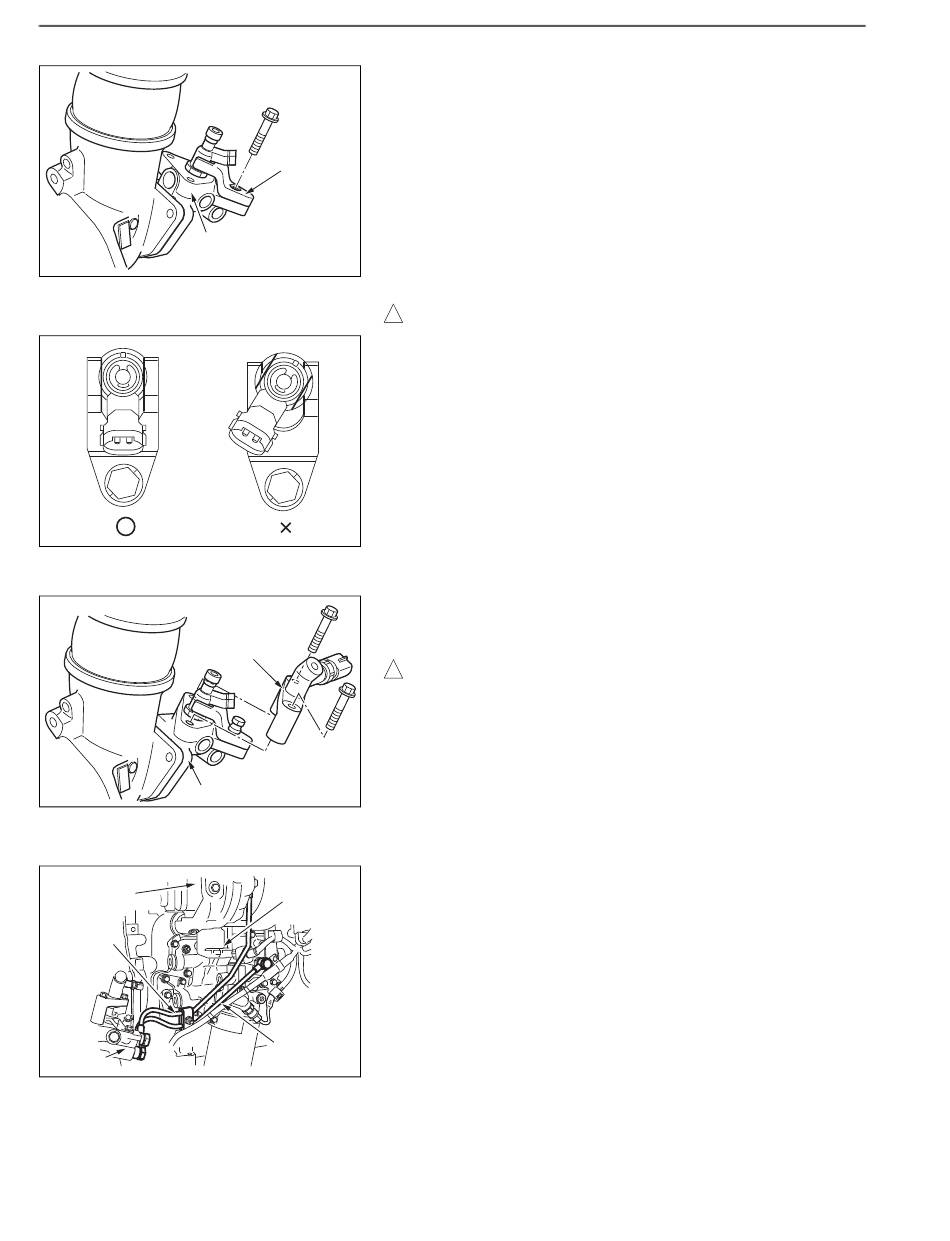

(3) Mount the nozzle clamp to the folder with the bolt.
Tightening Torque:
28.5 N·m {290 kgf·cm, 21.0 lbf·ft}
NOZZLE
CLAMP
SHTS021271000082
! CAUTION
•
When mounting the nozzle clamp to the folder, align the noz-
zle clamp with the fuel addition valve groove.
• If the nozzle clamp is mounted without aligning with the fuel
addition valve, it cannot be reused.
SHTS021271000083
(4) Mount the fuel delivery to the folder with the bolts (2 pcs.).
Tightening Torque:
28.5 N·m {290 kgf·cm, 21.0 lbf·ft}
! CAUTION
• Apply engine oil to the O-ring. Use care not to get the O-ring
jammed when inserting the fuel delivery.
•
Check the O-ring seal for dirt before mounting.
SHTS021271000084
3. CONNECTING PIPES
(1) Replace with 4 new gaskets and connect the coolant pipe E to the
OIL
COOLER
folder and oil cooler assembly with 2 union bolts.
ASSEMBLY
Tightening Torque:
24.5 N·m {250 kgf·cm, 18.1 lbf·ft}
(2) Replace with 4 new gaskets and connect the coolant pipe D to the
folder and turbocharger assembly with 2 union bolts.
Tightening Torque:
24.5 N·m {250 kgf·cm, 18.1 lbf·ft}
COOLANT
PIPE E
(3) Mount the clip with the nut and secure the coolant pipe D and
coolant pipe E.
