Intake; Intake Manifold; Diesel Throttle; Intake Pipe (Exhaust Side) - Hino S5-LJ05E04A Workshop Manual

INTAKE MANIFOLD

TIGHTENING TORQUE
Tightening part
Intake manifold mounting bolt and nut

DIESEL THROTTLE

TIGHTENING TORQUE
Tightening part
Diesel throttle mounting bolt and nut

INTAKE PIPE (EXHAUST SIDE)

TIGHTENING TORQUE
Tightening part
Primary intake pipe mounting clamp
Secondary intake pipe mounting bolt

STACK DUCT

TIGHTENING TORQUE
Tightening part
Duct to bracket mounting bolt
Duct to cab mounting bolt
Stack duct mounting clamp
Stack duct mounting nut

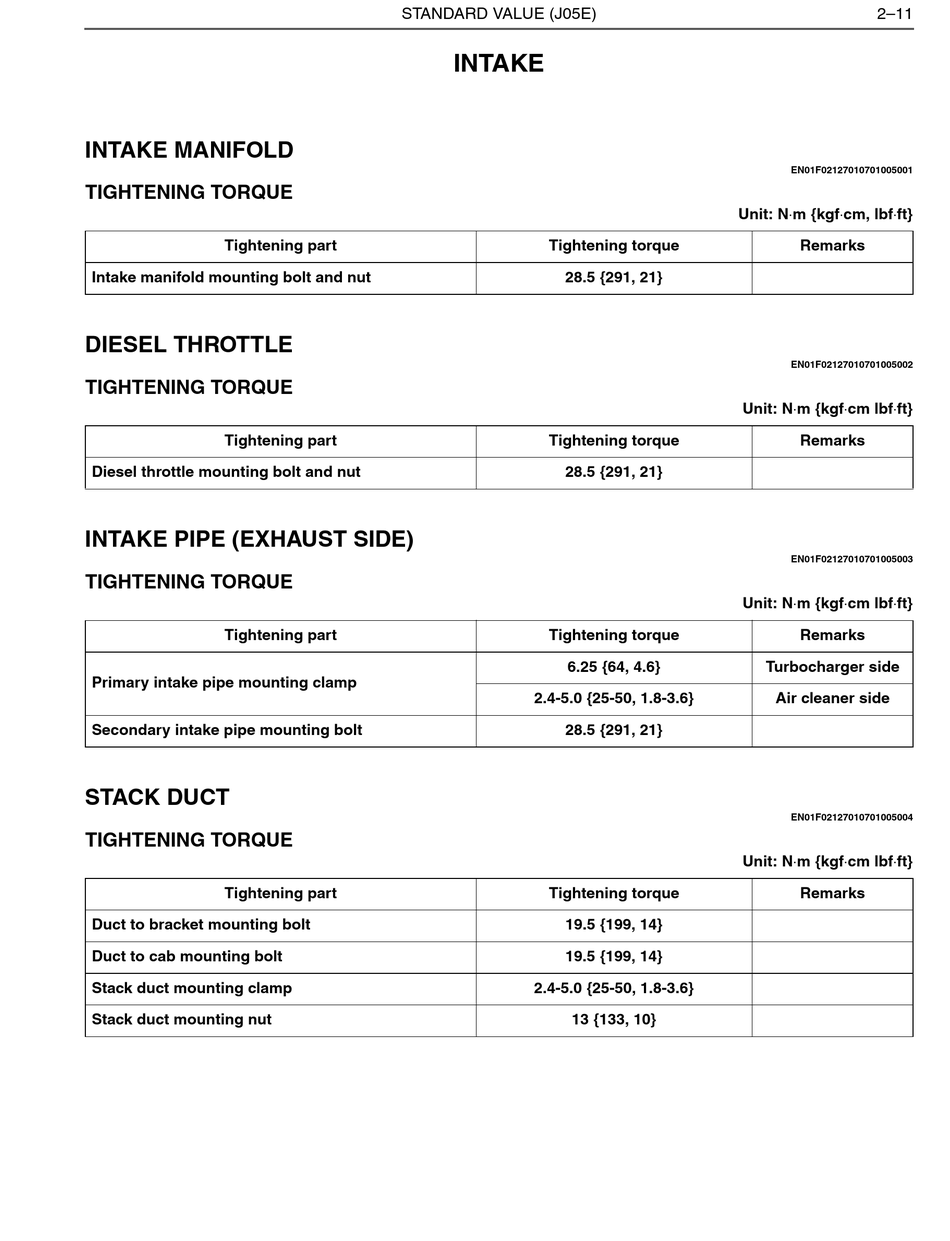

STANDARD VALUE (J05E)

INTAKE

Tightening torque
28.5 {291, 21}
Tightening torque
28.5 {291, 21}
Tightening torque
6.25 {64, 4.6}
2.4-5.0 {25-50, 1.8-3.6}
28.5 {291, 21}
Tightening torque
19.5 {199, 14}
19.5 {199, 14}
2.4-5.0 {25-50, 1.8-3.6}
13 {133, 10}
2–11
EN01F02127010701005001
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701005002
Unit: Nm {kgfcm lbfft}
Remarks
EN01F02127010701005003
Unit: Nm {kgfcm lbfft}
Remarks
Turbocharger side
Air cleaner side
EN01F02127010701005004
Unit: Nm {kgfcm lbfft}
Remarks
