Hino S5-LJ05E04A Workshop Manual page 440

11–32
Injection quantity
Engine coolant temperature
Exhaust brake valve to OFF
(Adjust the engine speed by idle set knob)
Exhaust brake valve to ON
Difference of adjustable range of fuel injection
(A-B)
EXHAUST (J05E)

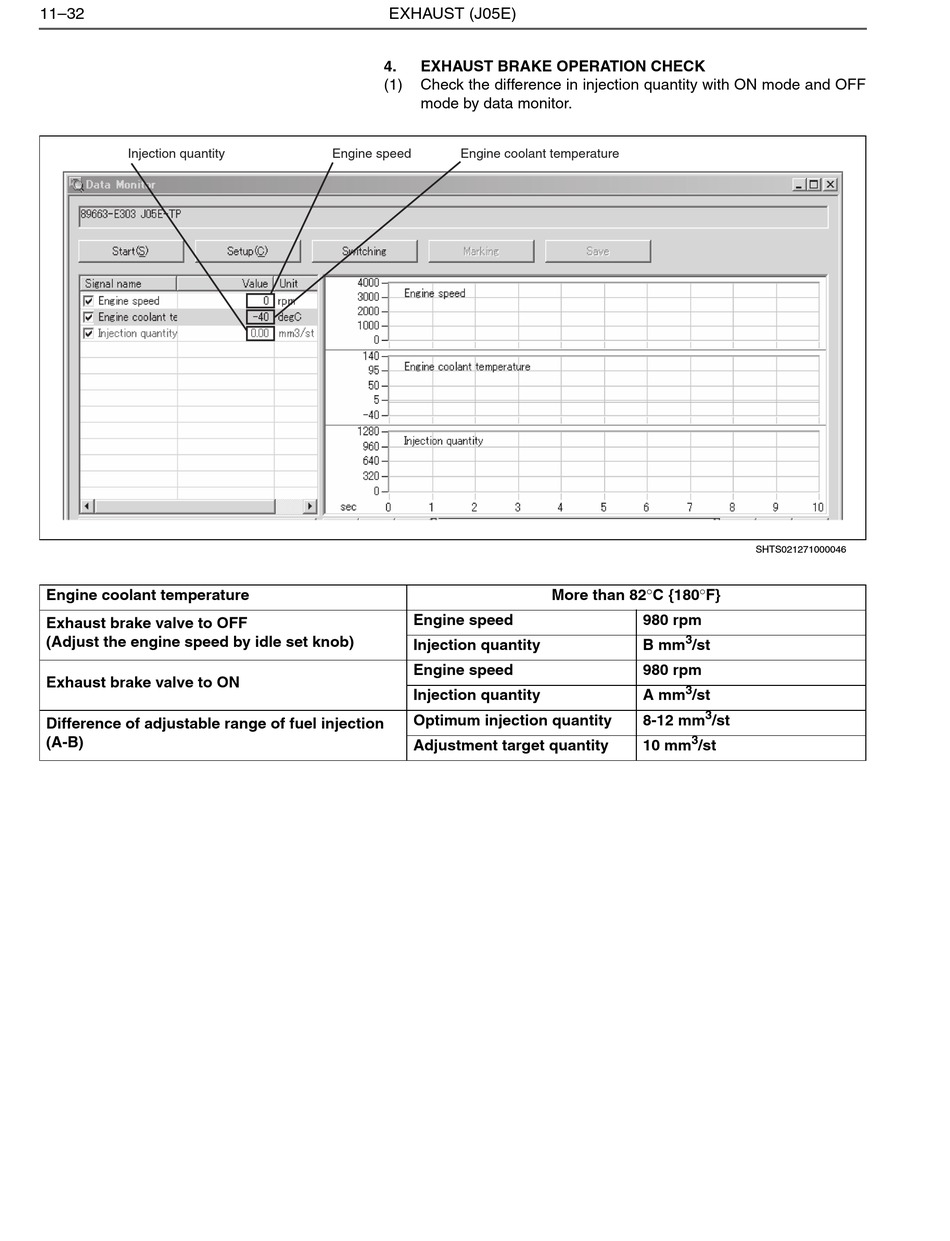

4. EXHAUST BRAKE OPERATION CHECK
(1) Check the difference in injection quantity with ON mode and OFF
mode by data monitor.
Engine speed Engine coolant temperature
Engine speed
Injection quantity
Engine speed
Injection quantity
Optimum injection quantity
Adjustment target quantity
More than 82C {180F}
980 rpm
3
B mm /st
980 rpm
3
A mm /st
3
8-12 mm /st
3
10 mm /st
SHTS021271000046
