DEF INLET HOSE
COOLANT INLET HOSE
DEF BACKFLOW
HOSE
DEF OUTLET
HOSE
COOLANT OUTLET HOSE
EXHAUST (J05E)

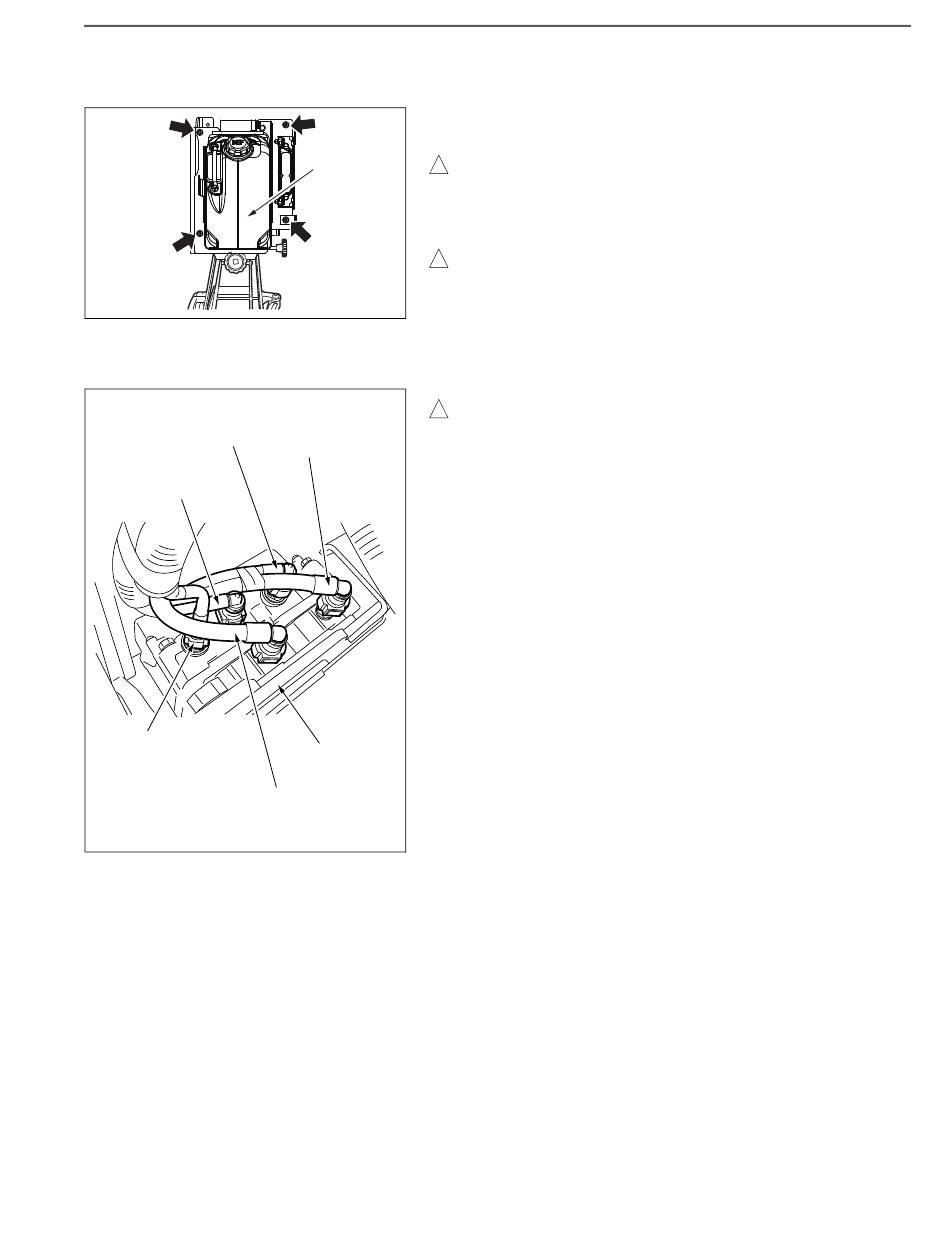

MOUNTING THE DEF TANK ASSEMBLY
1. MOUNTING THE DEF TANK ASSEMBLY
(1) Lash the transmission jack and DEF tank assembly with a lashing
device.
DEF TANK
ASSEMBLY
! CAUTION
Pay attention to weight balance.
(2) Set the DEF tank assembly to the DEF tank mounting position
while supporting it to prevent falling.
! CAUTION
Pay attention to weight balance.
(3) Mount the DEF tank assembly to the bracket with 4 nuts.
Tightening Torque:
SHTS021271000142
38.4-57.6 N·m {392-587 kgf·cm, 28.3-42.5 lbf·ft}
2. CONNECT THE HOSE
! CAUTION
Refer to "Cautions on DEF/coolant piping attaching and detach-
ing".
Reference: EXHAUST (J05E), DEF-SCR & DPR, CAUTIONS ON
DEF/COOLANT PIPING ATTACHING AND DETACHING (Page 11-
20)
(1) Connect the coolant inlet hose and coolant outlet hose to the DEF
pump.
(2) Connect the DEF inlet hose, DEF outlet hose, and DEF backflow
hose to the DEF pump.
(3) Connect the hose to the DEF sensor.
Reference: EXHAUST (J05E), DEF TANK, REPLACEMENT,
MOUNTING THE DEF TANK (Page 11-77)
DEF PUMP
SHTS021271000143
