Hino S5-LJ05E04A Workshop Manual page 560

THERMOSTAT
THERMOSTAT
CASE
WATER
OUTLET PIPE
COOLANT PUMP
THERMOSTAT
CASE
COOLING (J05E)
(4)
GASKET
COOLANT
PIPE A
SHTS021271100037
7.
(1)
NOTICE
Prepare the reservoir and clean clothes to collect dripping coolant
when removing the water outlet pipe.
SHTS021271100038
(2)
NOTICE
Prepare the reservoir and clean clothes to collect dripping coolant
when removing the thermostat case.
SHTS021271100039

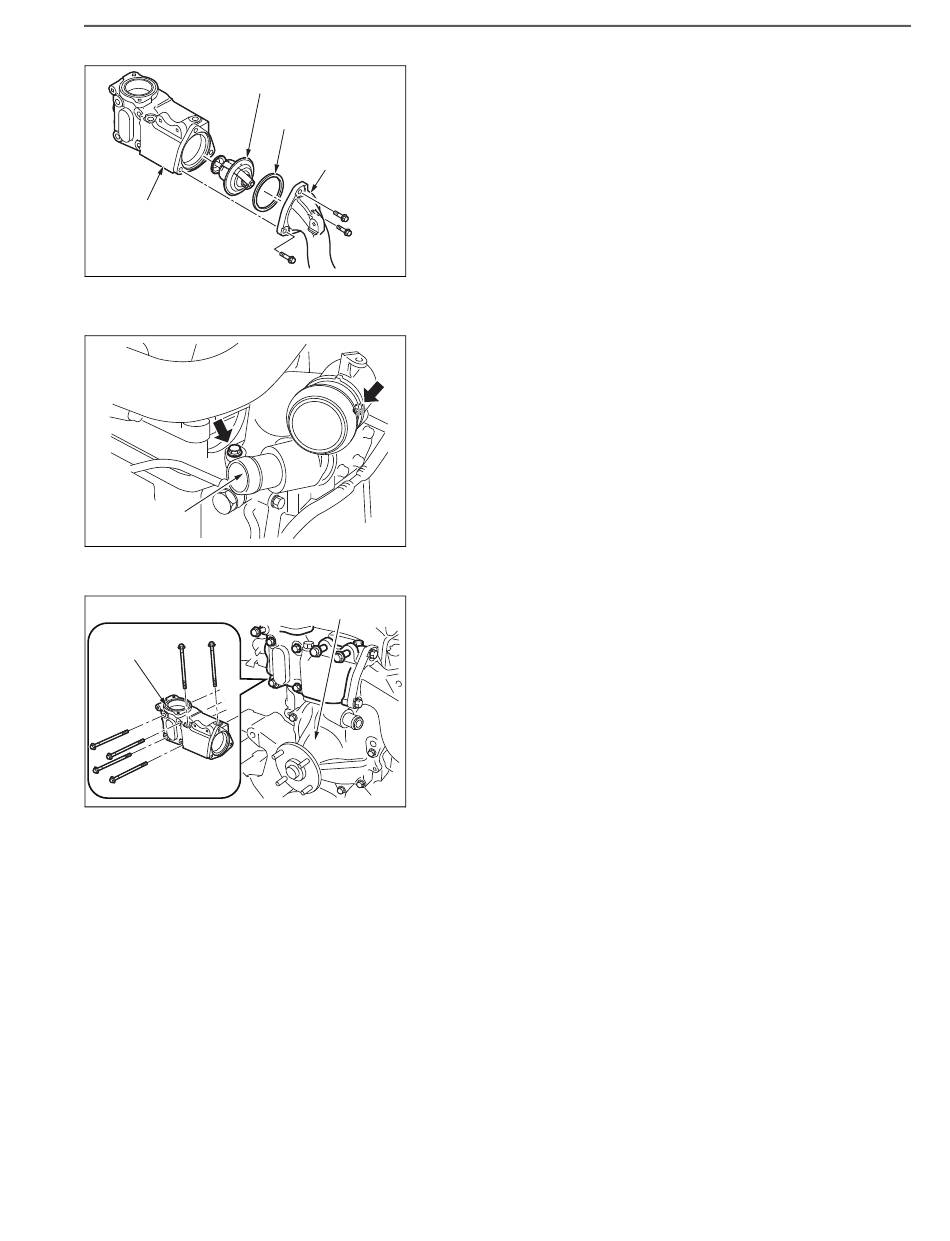

Unfasten the 3 bolts to remove the coolant pipe A, thermostat and
gasket from the thermostat case.
REMOVING THE THERMOSTAT CASE
Unfasten the 2 bolts to remove the water outlet pipe and O-ring
from the thermostat case.
Unfasten the 6 bolts to remove the thermostat case and O-ring
from the cylinder head and coolant pump.
12–25
