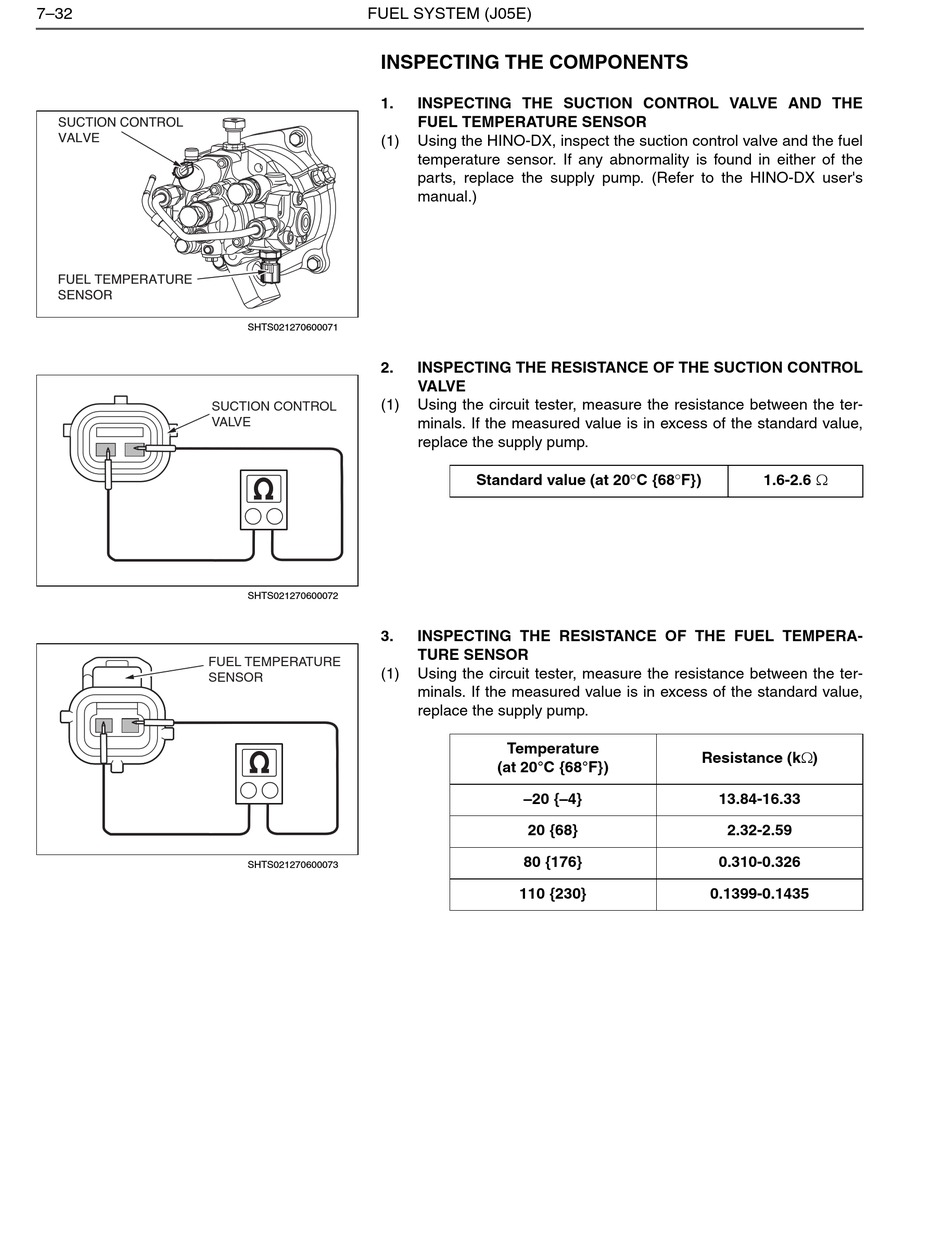

7–32
SUCTION CONTROL
VALVE
FUEL TEMPERATURE
SENSOR
SUCTION CONTROL
VALVE
FUEL TEMPERATURE
SENSOR
FUEL SYSTEM (J05E)
INSPECTING THE COMPONENTS
1. INSPECTING THE SUCTION CONTROL VALVE AND THE
FUEL TEMPERATURE SENSOR
(1) Using the HINO-DX, inspect the suction control valve and the fuel
temperature sensor. If any abnormality is found in either of the
parts, replace the supply pump. (Refer to the HINO-DX user's
manual.)
SHTS021270600071
2. INSPECTING THE RESISTANCE OF THE SUCTION CONTROL
VALVE
(1) Using the circuit tester, measure the resistance between the ter-
minals. If the measured value is in excess of the standard value,
replace the supply pump.
SHTS021270600072
3. INSPECTING THE RESISTANCE OF THE FUEL TEMPERA-
TURE SENSOR
(1) Using the circuit tester, measure the resistance between the ter-
minals. If the measured value is in excess of the standard value,
replace the supply pump.
SHTS021270600073
Standard value (at 20C {68F})
Temperature
(at 20°C {68°F})
–20 {–4}
20 {68}
80 {176}
110 {230}
1.6-2.6 
Resistance (k)
13.84-16.33
2.32-2.59
0.310-0.326
0.1399-0.1435
